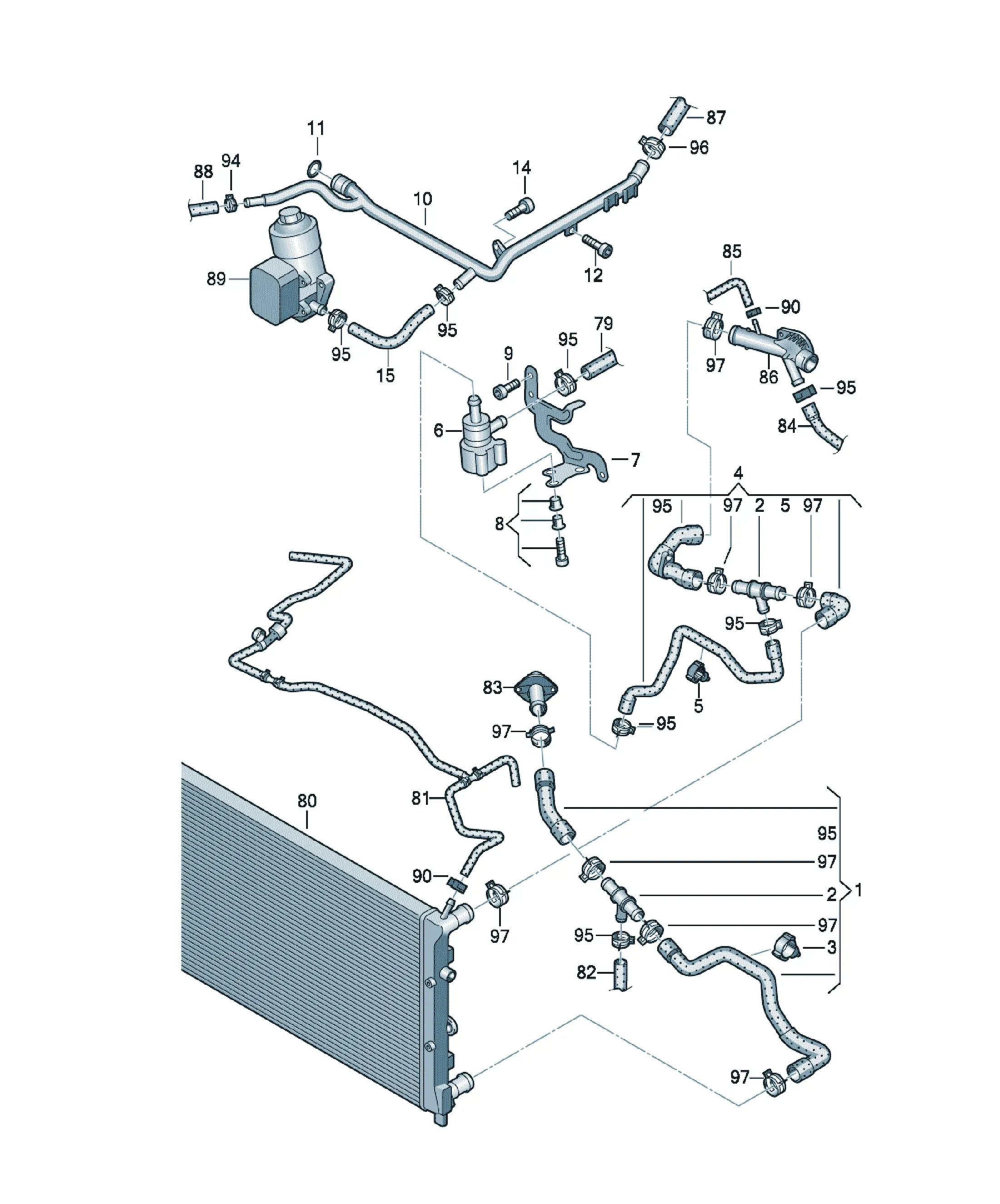

გაგრილების სისტემის დამატებითი ტუმბო

[Name] [QTY]

Coolant hose 1

for vehicle use in cold and moderate climates

[Name] [Note] [QTY]

Coolant pipe plastic 1

[Name] [Note] [QTY]

seal ring 20,5X5,5 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M10X25-S13 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M7X20 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

connection piece 32X20X32 1

[Name] [Note] [QTY]

Clip 33,5MM 1

[Name] [QTY]

Coolant hose 1

D - 10.12.2012>>

[Name] [QTY]

Coolant hose 1

D >> - 09.12.2012

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

Additional coolant pump 1

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [Note]

Coolant hose

see illustration, item: 121-061,12

[Name] [QTY]

1 set attachment parts 1

repair set

WHT003361 Hexagon socket flat head bolt TP 3,5X20-R 3

03L121275 Rubber bush 3

03L121199 Sleeve 3

[Name] [Note]

Cooler for coolant

see illustration: 121-086

[Name] [Note]

Coolant hose

see illustration, item: 121-061,6

[Name] [Note]

Coolant hose

see illustration, item: 121-061,14

[Name] [Note]

Pipe union

see illustration: 121-007

[Name] [Note]

Coolant hose

see illustration, item: 121-061,3

[Name] [Note]

Coolant hose

see illustration, item: 121-061,6

[Name] [Note]

flange

see illustration: 121-086

[Name] [Note]

Coolant hose

see illustration, item: 121-061,1

[Name] [Note]

Coolant hose

see illustration, item: 121-061,8

[Name] [Note]

Oil cooler

see illustration: 115-040

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X16 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
