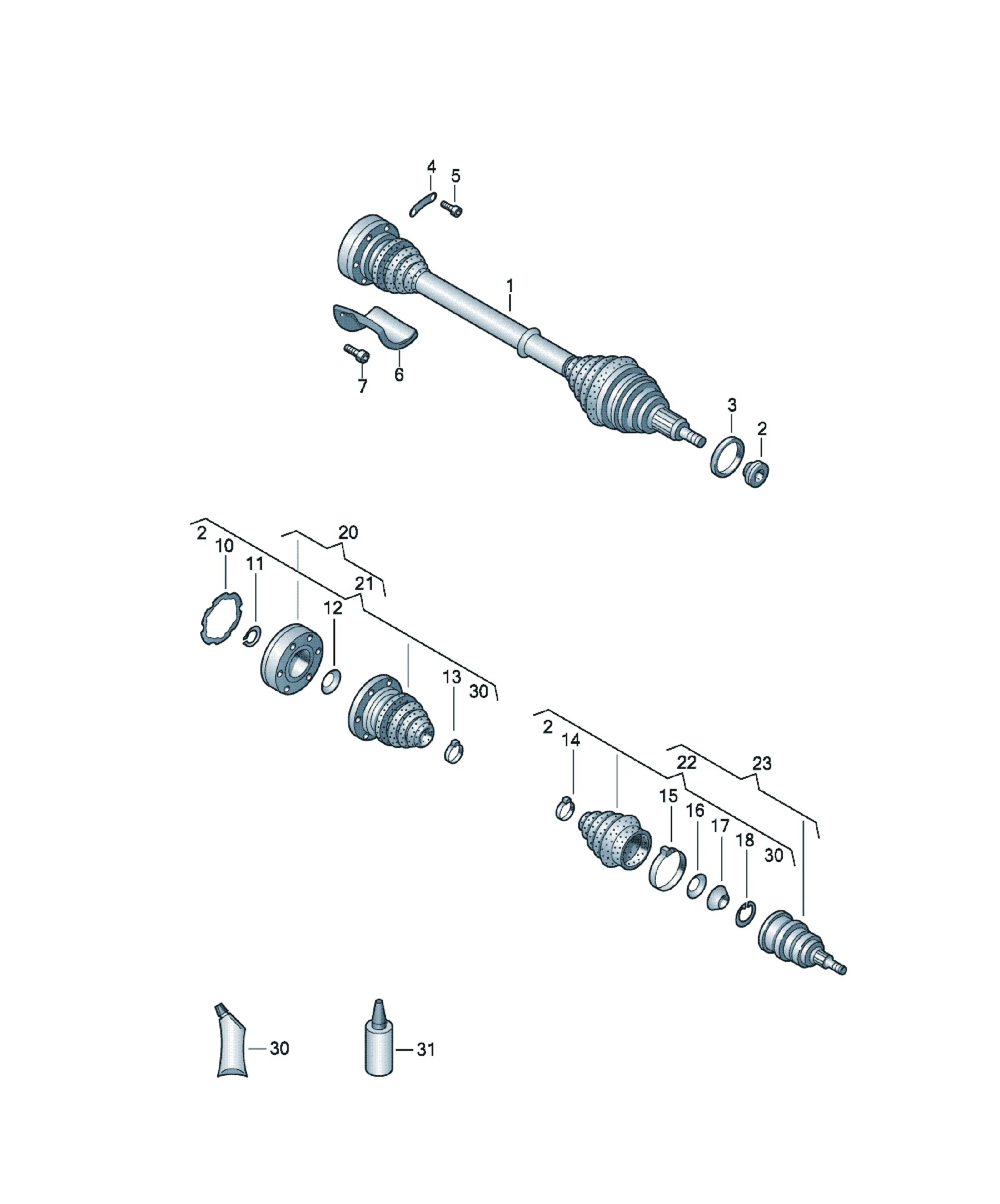

წამყვანი ლილვი

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Exchange program parts: 6R0407761AX

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Exchange program parts: 6R0407762AX

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

[Name] [Note] [QTY]

Sealing plate 90MM 2

[Name] [Note] [QTY]

snap ring 24,5X2 2

[Name] [Note] [QTY]

Belleville spring (internal gears) 22X1,2 2

[Name] [Note] [QTY]

clamp 32X10X0,8 2

[Name] [Note] [QTY]

clamp 32X10X0,8 2

[Name] [Note] [QTY]

clamp 92,5X10X1 2

[Name] [QTY]

Belleville spring 2

[Name] [Note] [QTY]

thrust ring 25,1X6,95 2

[Name] [QTY]

snap ring 2

[Name] [Note] [QTY]

Double hexagon nut M16X1,5 2

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

Exchange program parts: 1K0498103 X

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

repair set

1J0407282F joint boot inner 1

N 90442501 clamp 32X10X0,8 1

8D0407309 Sealing plate 1

113501327A Belleville spring (internal gears) 1

113517279 snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

repair set

1K0407285Q joint boot outer 1

N 90772401 clamp 92,5X10X1 1

N 90442501 clamp 32X10X0,8 1

321407287 Belleville spring 1

171407297C snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

Outer joint with assembly parts 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

repair set

6Q0407311T constant velocity joint Z=36 1

1K0407285Q joint boot outer 1

N 90772401 clamp 92,5X10X1 1

N 90442501 clamp 32X10X0,8 1

171407297C snap ring 1

321407287 Belleville spring 1

6Q0407396B Double hexagon nut M16X1,5 1

6Q0407623E Deflector ring 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

Outer joint with assembly parts 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

Exchange program parts: 6Q0498099EX

[Name] [Note] [QTY]

Deflector ring 72MM 2

[Name] [Note] [QTY]

Grease for universal joint 120G X

outer

[Name] [Note] [QTY]

high temperature grease 120G X

[Name] [Note] [QTY]

Locking fluid 50ml X

for securing for drive shaft wheel bearing housing

[Name] [Note] [QTY]

sealant 125G X

[Name] [QTY]

Spacer 6

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X48 12

[Name] [Note] [QTY]

Heat shield plate right 1

[Name] [Note] [QTY]

Hexagon bolt M10X20 2
