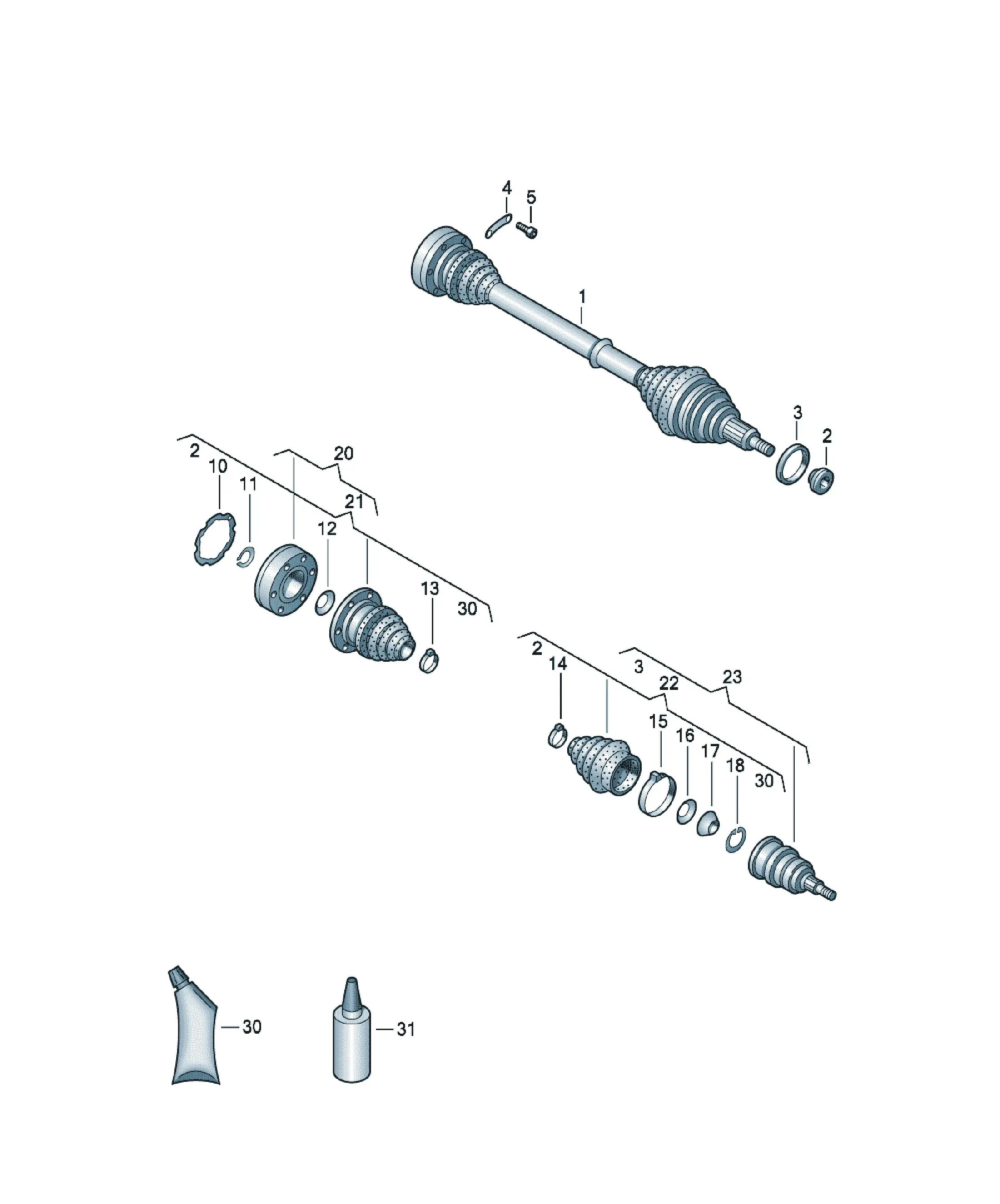

წამყვანი ლილვი

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Exchange program parts: 6R0407761 X

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Exchange program parts: 6R0407762BX

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Exchange program parts: 6R0407761BX

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Exchange program parts: 6R0407762 X

[Name] [Note] [QTY]

Sealing plate 90MM 2

[Name] [Note] [QTY]

Sealing plate 78MM 2

[Name] [Note] [QTY]

snap ring 24,5X2 2

[Name] [Note] [QTY]

Belleville spring (internal gears) 22X1,2 2

[Name] [QTY]

Belleville spring (internal gears) 2

[Name] [Note] [QTY]

clamp 32X10X0,8 2

[Name] [Note] [QTY]

clamp 32X10X0,8 2

[Name] [Note] [QTY]

clamp 90,5X10X1 2

[Name] [Note] [QTY]

clamp 92,5X10X1 2

[Name] [QTY]

Belleville spring 2

[Name] [Note] [QTY]

thrust ring 25,1X6,95 2

[Name] [QTY]

snap ring 2

[Name] [Note] [QTY]

Double hexagon nut M16X1,5 2

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

repair set

5Q0407331C constant velocity joint inner 1

1J0407282F joint boot inner 1

N 90442501 clamp 32X10X0,8 1

113501327A Belleville spring (internal gears) 1

113517279 snap ring 24,5X2 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

Exchange program parts: 1K0498103 X

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

repair set

5Q0407331 constant velocity joint inner 1

1H0407282 Inner protective sleeve with dust cap 1

1H0407309A Sealing plate 1

N 90442501 clamp 32X10X0,8 1

113501327A Belleville spring (internal gears) 1

113517279 snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

Exchange program parts: 6Q0498103AX

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

repair set

1H0407282 Inner protective sleeve with dust cap 1

1H0407309A Sealing plate 1

N 90442501 clamp 32X10X0,8 1

113501327A Belleville spring (internal gears) 1

113517279 snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052133A2 high temperature grease 90G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

repair set

1J0407282F joint boot inner 1

N 90442501 clamp 32X10X0,8 1

8D0407309 Sealing plate 1

113501327A Belleville spring (internal gears) 1

113517279 snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052133A3 high temperature grease 120G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

also use: 6Q0 407 396 B 1

6Q0 407 623 E

Accompanying details: 6Q0407396B; 6Q0407623E

repair set

1K0407285Q joint boot outer 1

N 90772401 clamp 92,5X10X1 1

N 90442501 clamp 32X10X0,8 1

321407287 Belleville spring 1

321407295A thrust ring 25,1X6,95 1

171407297C snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

also use: 6Q0 407 396 B

Accompanying details: 6Q0407396B

repair set

6Q0407285A joint boot outer 1

N 10701301 clamp 90,5X10X1 1

N 90442501 clamp 32X10X0,8 1

171407297C snap ring 1

321407287 Belleville spring 1

G 052133A2 high temperature grease 90G 1

[Name] [Note] [QTY]

Outer joint with assembly parts outer 2

Z=36

Exchange program parts: 6R0498099 X

[Name] [Note] [QTY]

Outer joint with assembly parts 2

also use: 6Q0 407 396 B 1

6Q0 407 623 E 1

Accompanying details: 6Q0407396B; 6Q0407623E

repair set

6Q0407311T constant velocity joint Z=36 1

1K0407285Q joint boot outer 1

N 90772401 clamp 92,5X10X1 1

N 90442501 clamp 32X10X0,8 1

321407287 Belleville spring 1

321407295A thrust ring 25,1X6,95 1

171407297C snap ring 1

6Q0407396B Double hexagon nut M16X1,5 1

6Q0407623E Deflector ring 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

Outer joint with assembly parts 2

also use: 6Q0 407 396 B 1

6Q0 407 623 E 1

Accompanying details: 6Q0407396B; 6Q0407623E

Exchange program parts: 6Q0498099EX

[Name] [Note] [QTY]

Outer joint with assembly parts outer 2

Z=36

repair set

6R0407311A constant velocity joint 1

6Q0407623E Deflector ring 1

6Q0407285A joint boot outer 1

N 10701301 clamp 90,5X10X1 1

N 90442501 clamp 32X10X0,8 1

171407297C snap ring 25,1X2 1

321407287 Belleville spring 34X25X2,2 1

321407295A thrust ring 25,1X6,95 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

Deflector ring 72MM 2

[Name] [Note] [QTY]

Grease for universal joint 120G X

outer

[Name] [Note] [QTY]

high temperature grease 90G X

inner

[Name] [Note] [QTY]

high temperature grease 120G X

inner

[Name] [Note] [QTY]

Locking fluid 50ml X

for securing for drive shaft wheel bearing housing

[Name] [Note] [QTY]

sealant 125G X

inner

[Name] [Note] [QTY]

sealant 125G X

[Name] [QTY]

Spacer 6

[Name] [QTY]

Spacer 6

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X48 12
