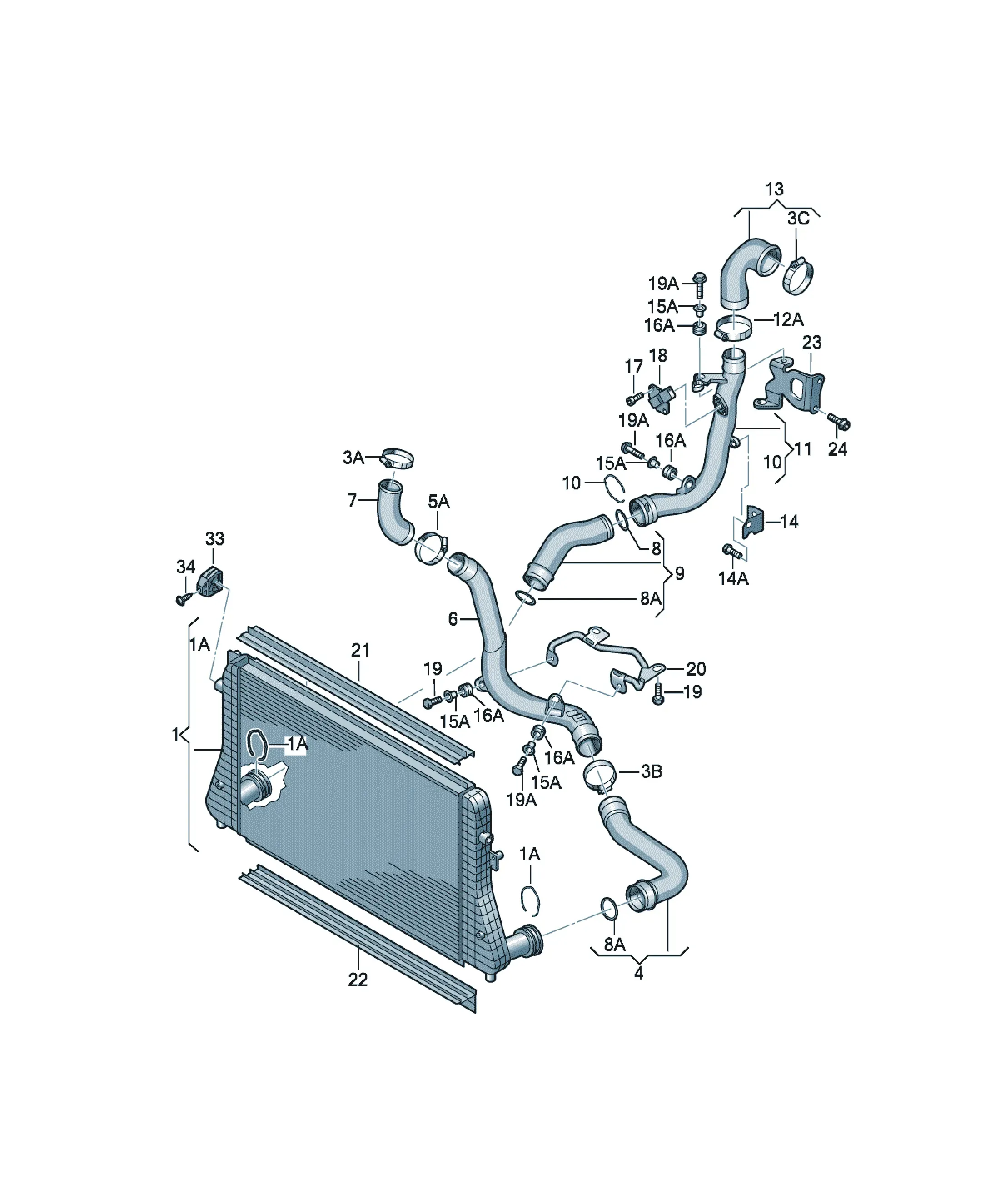

ინტერკულერი

[Name] [QTY]

Charge air cooler 1

[Name] [Note] [QTY]

Retaining clip SCS48 1

[Name] [Note] [QTY]

Air pipe 1

does not include: 1K0 145 769 H

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [QTY]

Pressure hose 1

throttle valve adapter

[Name] [QTY]

Bracket 1

charge air tube

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 1

[Name] [QTY]

bush 3

[Name] [QTY]

Grommet 3

[Name] [Note] [QTY]

fillister hd. bolt 5X17 2

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X25 2

[Name] [Note] [QTY]

Hex socket head bolt (combi) M6X25 2

[Name] [Note] [QTY]

Retaining clip D=70MM 2

[Name] [QTY]

Retaining bar 1

[Name] [Note]

see illustration, item: 121-080,31

[Name] [Note]

see illustration, item: 121-080,32

[Name] [QTY]

Support 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 2

[Name] [QTY]

Bracket 2

[Name] [Note] [QTY]

bush lower 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X18,5 2

[Name] [Note] [QTY]

Hose clamp 40-60X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 60-80X12 1

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

Hose clamp 40-60X12 1

[Name] [QTY]

charge air tube 1

[Name] [QTY]

Pressure hose 1

Exhaust gas turbocharger

[Name] [Note] [QTY]

seal ring 53,95MM 1

[Name] [Note] [QTY]

seal ring 61,90MM 2

[Name] [QTY]

Pressure hose 1
