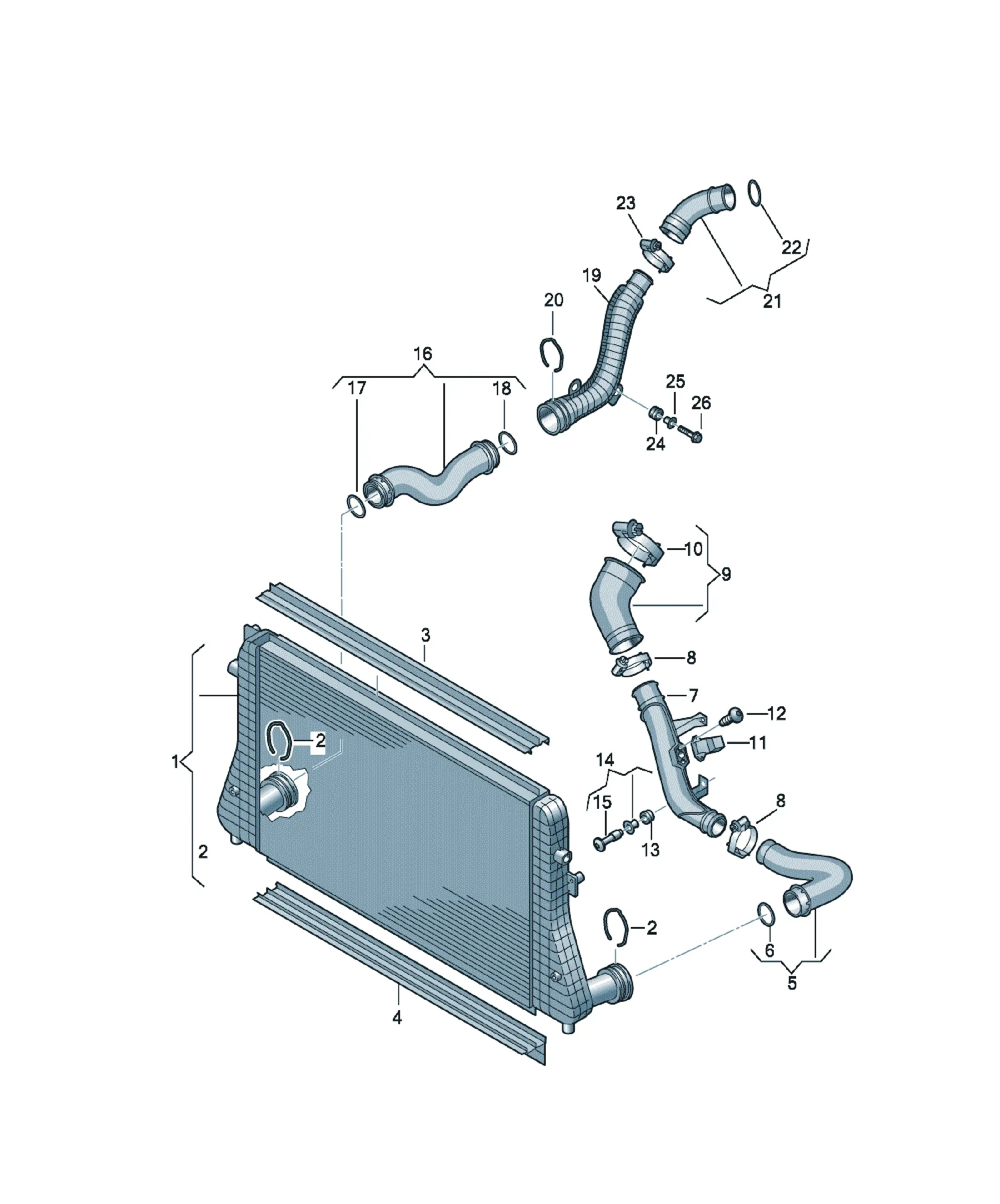

ინტერკულერი

[Name] [QTY]

Bracket 1

charge air tube

[Name] [QTY]

Charge air cooler 1

[Name] [Note] [QTY]

Hose clamp 60-80X12 1

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051D

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [QTY]

Grommet 2

[Name] [QTY]

Spacer sleeve with cylinder collar bolt 2

[Name] [Note] [QTY]

Hex socket head bolt (combi) M6X25 2

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

seal ring 61,90MM 1

[Name] [Note] [QTY]

seal ring 57,85MM 1

[Name] [QTY]

Air pipe 1

Replacements: 1K0145840AF

[Name] [QTY]

Retaining clip 2

[Name] [QTY]

Retaining clip 2

[Name] [QTY]

Pressure hose 1

Exhaust gas turbocharger

[Name] [Note] [QTY]

seal ring 53,95MM 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 2

[Name] [QTY]

Grommet 2

[Name] [QTY]

Spacer sleeve with cylinder collar bolt 2

[Name] [Note]

Hexagon socket head collared bolt (combi)

Included in position: 25

[Name] [Note] [QTY]

Seal 1

see illustration, item: 121-082,5

[Name] [Note] [QTY]

Seal lower 1

see illustration, item: 121-082,6

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

seal ring 61,90MM 1

[Name] [QTY]

Air pipe 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 2

[Name] [QTY]

Pressure hose 1

throttle valve adapter
