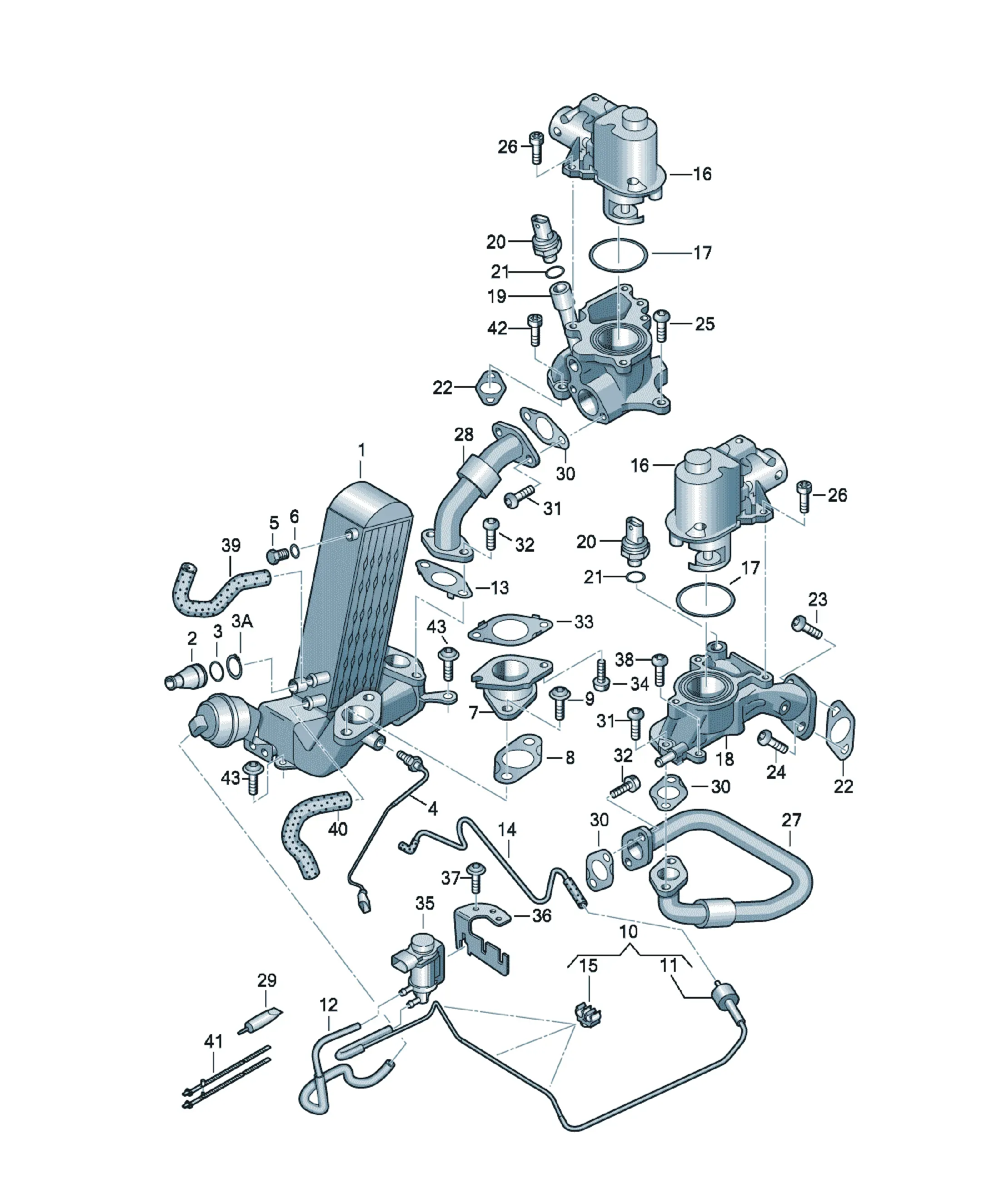

Вакуумная система и система рециркуляции ОГ

[Name] [QTY]

Vacuum pipe 1

[Name] [QTY]

Cooler for exhaust recuperation 1

Replacements: 057131515L

[Name] [QTY]

Vacuum hose 1

D >> - 17.05.2010

[Name] [QTY]

Vacuum hose 1

D - 17.05.2010>>

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

Vacuum pipe 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Vacuum hose 1

[Name] [Note] [QTY]

Clip 5/6 3

[Name] [Note] [QTY]

exhaust recirculation valve left a. right 2

mating connector

1J0973713G Flat contact housing 6 pin 1

Grey

black

[Name] [Note] [QTY]

O-ring 44X2,5 2

[Name] [Note] [QTY]

Intermediate flange left 1

Replacements: 057131223N

[Name] [Note] [QTY]

Intermediate flange right 1

D - 17.05.2010>>

Replacements: 057131224Q

[Name] [Note] [QTY]

Intermediate flange right 1

D >> - 17.05.2010

Replacements: 057131224P

[Name] [QTY]

Coolant regulator 1

[Name] [QTY]

Pressure sensor 2

Replacements: 057131225C

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

seal ring 12X17 2

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X20 6

[Name] [Note] [QTY]

Connecting pipe left 1

[Name] [Note] [QTY]

Connecting pipe right 1

[Name] [Note] [QTY]

hot-bolt-paste 170G 1

[Name] [Note] [QTY]

O-ring 26X2 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt left 2

M6X25.0

[Name] [Note] [QTY]

Hexagon socket flat head bolt right 2

M6X20

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X20 2

[Name] [QTY]

Solenoid valve 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Retainer for valve right 1

[Name] [Note] [QTY]

Retainer for valve left 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 4

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 1

[Name] [Note]

Coolant hose feed

see illustration: 121-031

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Exhaust gas temperature sender 2 pin 1

Coolant pump black

20MM

mating connector

1J0973702A Flat contact housing with contact locking mechanism 2 pin 1

brown

[Name] [Note]

Coolant hose return

see illustration: 121-031

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X38 2

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 2
