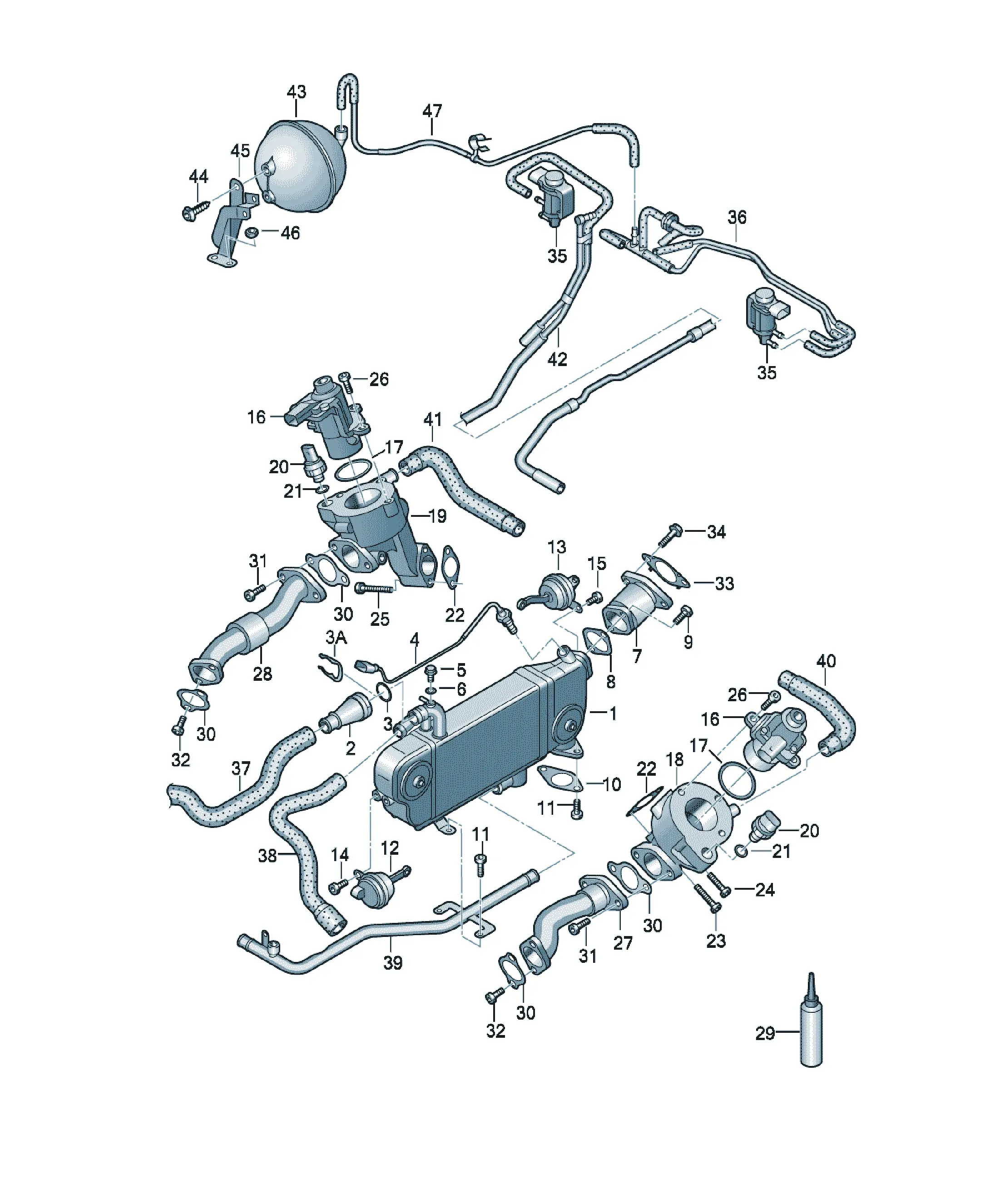

Вакуумная система и система рециркуляции ОГ

[Name] [QTY]

Cooler for exhaust recuperation 1

D >> - 01.07.2013

Replacements: 05A131515G

[Name] [QTY]

Cooler for exhaust recuperation 1

D - 01.07.2013>>

[Name] [QTY]

Cooler for exhaust recuperation 1

D - 01.07.2013>>

Replacements: 05A131515H

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Socket head bolt M6X16 4

[Name] [QTY]

exhaust recirculation valve 2

D - 05.10.2009>>

Replacements: 059131502H

[Name] [QTY]

exhaust recirculation valve 2

D >> - 05.10.2009

Replacements: 059131502G

mating connector

1J0973713G Flat contact housing 6 pin 1

Grey

also to be used for: black

[Name] [Note] [QTY]

O-ring 44X2,5 1

[Name] [Note] [QTY]

Intermediate piece left 1

[Name] [Note] [QTY]

Intermediate piece right 1

[Name] [QTY]

Coolant regulator 1

[Name] [QTY]

Pressure sensor 2

Replacements: 057131225C

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

seal ring 12X17 2

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X56 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X56 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X20 6

[Name] [Note] [QTY]

Connecting pipe left 1

[Name] [Note] [QTY]

Connecting pipe right 1

[Name] [Note] [QTY]

hot-bolt-paste 170G 1

[Name] [Note] [QTY]

O-ring 26X2 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 4

[Name] [Note] [QTY]

Hexagon socket head bolt M6X16 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon collar bolt with socket head M6X100X70 2

[Name] [QTY]

Solenoid valve 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Vacuum hose 1

[Name] [Note]

see illustration: 121-040

[Name] [Note]

see illustration: 121-040

[Name] [Note]

see illustration: 121-040

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Exhaust gas temperature sender 1

mating connector

1J0973702A Flat contact housing with contact locking mechanism 2 pin 1

brown

[Name] [Note]

see illustration: 121-042

[Name] [Note]

see illustration: 121-042

[Name] [QTY]

vacuum hoses 1

[Name] [QTY]

Damper 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon nut M6 2

[Name] [QTY]

Vacuum hose 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2
