Дроссельная заслонка

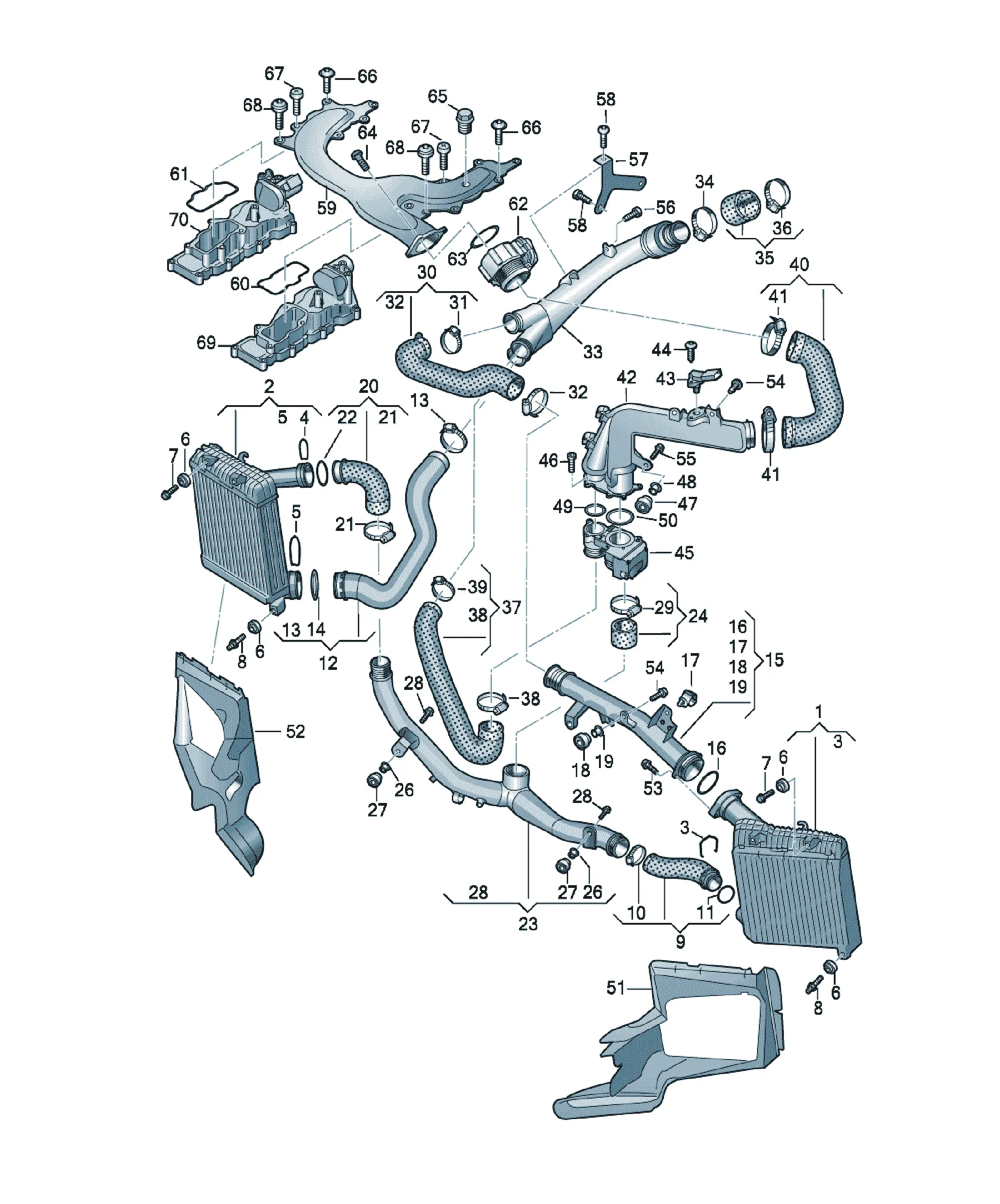

Система охлаждения наддувочного воздуха

Схемы узла

8 схем

Детали

69 деталей
  • 7L6145803D Предложения

    [Name] [Note] [QTY]

    Charge air cooler left 1

    Replacements: 7L6145803F

  • N10735501 Предложения

    [Name] [Note] [QTY]

    Hose clamp 40-60X12 1

  • 3C0145117F Предложения

    [Name] [Note] [QTY]

    seal ring 57,85MM 1

  • 7L6145738C Предложения

    [Name] [Note] [QTY]

    Pressure hose right lower 1

  • N10734801 Предложения

    [Name] [Note] [QTY]

    Hose clamp 40-60X12 1

    Replacements: N 10518801

  • 3C0145117F Предложения

    [Name] [Note] [QTY]

    seal ring 57,85MM I.D. 1

  • 7L6145762A Предложения

    [Name] [Note] [QTY]

    pressure pipe left upper 1

  • WHT003156 Предложения

    [Name] [Note] [QTY]

    O-ring 57X3,5 1

  • N10424401 Предложения

    [Name] [Note] [QTY]

    Bracket 8X23 1

  • 867129669 Предложения

    [Name] [QTY]

    Grommet 1

  • 7L6145830 Предложения

    [Name] [QTY]

    bush 6

  • 7P0145804A Предложения

    [Name] [Note] [QTY]

    Charge air cooler right 1

    Replacements: 7P0145804B

  • 7P0145708A Предложения

    [Name] [Note] [QTY]

    Pressure hose right upper 1

  • N10734801 Предложения

    [Name] [Note] [QTY]

    Hose clamp 40-60X12 1

    Replacements: N 10518801

  • 3C0145117B Предложения

    [Name] [Note] [QTY]

    seal ring SCA41 1

  • 7L6145792E Предложения

    [Name] [QTY]

    charge air tube 1

  • 7L6145709B Предложения

    [Name] [Note] [QTY]

    Pressure hose 1

    Included in position: 23

  • 7L6145830 Предложения

    [Name] [QTY]

    bush 6

  • 867129669 Предложения

    [Name] [QTY]

    Grommet 1

  • N90731503 Предложения

    [Name] [Note] [QTY]

    Hexagon socket head panel bolt 6X25 2

  • N10619901 Предложения

    [Name] [Note] [QTY]

    Hose clamp 55-75X12 2

  • 1J0145769G Предложения

    [Name] [Note] [QTY]

    Retaining clip SCA52 1

  • 7L6145737D Предложения

    [Name] [QTY]

    Pressure hose 1

  • N10734901 Предложения

    [Name] [Note] [QTY]

    Hose clamp 45-65X12 1

  • N10619701 Предложения

    [Name] [Note] [QTY]

    Clamp 35-55X12 1

  • 7L6145945H Предложения

    [Name] [QTY]

    charge air tube 1

  • N10619801 Предложения

    [Name] [Note] [QTY]

    Hose clamp 45-65X12 1

  • 7P0145832A Предложения

    [Name] [QTY]

    Pressure hose 1

  • N10735001 Предложения

    [Name] [Note] [QTY]

    Hose clamp 50-70X12 1

  • 7L6145790J Предложения

    [Name] [QTY]

    Pressure hose 1

  • N10735601 Предложения

    [Name] [Note] [QTY]

    Hose clamp 45-65X12 1

    Replacements: N 10619801

  • N10734801 Предложения

    [Name] [Note] [QTY]

    Hose clamp 40-60X12 1

    Replacements: N 10518801

  • 1K0145769A Предложения

    [Name] [QTY]

    Retaining clip 1

  • 7L6145972G Предложения

    [Name] [QTY]

    Pressure hose 1

  • N10619901 Предложения

    [Name] [Note] [QTY]

    Hose clamp 55-75X12 2

  • 7L6145770AD Предложения

    [Name] [QTY]

    Air pipe 1

  • 038906051C Предложения

    [Name] [QTY]

    Pressure sensor 1

    Replacements: 03G906051M

    mating connector

    1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

    optional: X

    8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

    black

  • N10507201 Предложения

    [Name] [Note] [QTY]

    fillister hd. bolt 5X20 2

  • 059145950L Предложения

    [Name] [QTY]

    Throttle valve 1

    mating connector

    1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

  • N10582103 Предложения

    [Name] [Note] [QTY]

    oval head countersunk bolt with multi-point socket head M6X40 5

  • 867129669 Предложения

    [Name] [QTY]

    Grommet 1

  • 7L6145830 Предложения

    [Name] [QTY]

    bush 6

  • 4L0145117 Предложения

    [Name] [Note] [QTY]

    O-ring 48,2X2X4,6 1

  • 1K0145769C Предложения

    [Name] [Note] [QTY]

    Retaining clip SCC52 1

  • 059145865 Предложения

    [Name] [Note] [QTY]

    O-ring 64,2X2 1

  • 4L0117335F Предложения

    [Name] [Note] [QTY]

    Air guide left 1

  • 4L0117336F Предложения

    [Name] [Note] [QTY]

    Air guide right 1

  • N10124408 Предложения

    [Name] [Note] [QTY]

    Hexagon socket head bolt (combi) M6X20 2

  • N90930802 Предложения

    [Name] [Note] [QTY]

    Hex socket head bolt (combi) M6X16-S11 2

  • N10124408 Предложения

    [Name] [Note] [QTY]

    Hexagon socket head bolt (combi) M6X20 2

  • N10335202 Предложения

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X12 2

  • 059145764B Предложения

    [Name] [QTY]

    Bracket 1

  • N10405604 Предложения

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X14 2

  • 059145762K Предложения

    [Name] [QTY]

    pressure pipe 1

    Replacements: 059145762EA

  • 7L0145830A Предложения

    [Name] [QTY]

    bush 6

  • 059129717K Предложения

    [Name] [QTY]

    Seal 1

  • 059129717L Предложения

    [Name] [QTY]

    Seal 1

  • 4E0145950J Предложения

    [Name] [Note] [QTY]

    Throttle valve 4 pin 1

    mating connector

    8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

    black

  • 059145865 Предложения

    [Name] [Note] [QTY]

    O-ring 64,2X2 1

  • N91097101 Предложения

    [Name] [Note] [QTY]

    Hexagon socket head bolt M6X30 3

  • N0161581 Предложения

    [Name] [Note] [QTY]

    sealing plug M8X1 1

  • N91054001 Предложения

    [Name] [Note] [QTY]

    Semi round bolt (combi) with hexagon socket head M6X22 5

  • N10626801 Предложения

    [Name] [Note] [QTY]

    fillister hd. bolt M6X70 3

  • WHT000351 Предложения

    [Name] [Note] [QTY]

    Ball pin 15X12 2

    Intake manifold

  • [Name] [Note] [QTY]

    see illustration: 129-050 1

  • N91053801 Предложения

    [Name] [Note] [QTY]

    Hexagon bolt M6X20 4

  • [Name] [Note] [QTY]

    see illustration: 129-050 1

  • N91101201 Предложения

    [Name] [Note] [QTY]

    double stud with hexagon drive M6X20/M6X8 2

  • 7L6145943D Предложения

    [Name] [Note] [QTY]

    Pressure hose left lower 1
