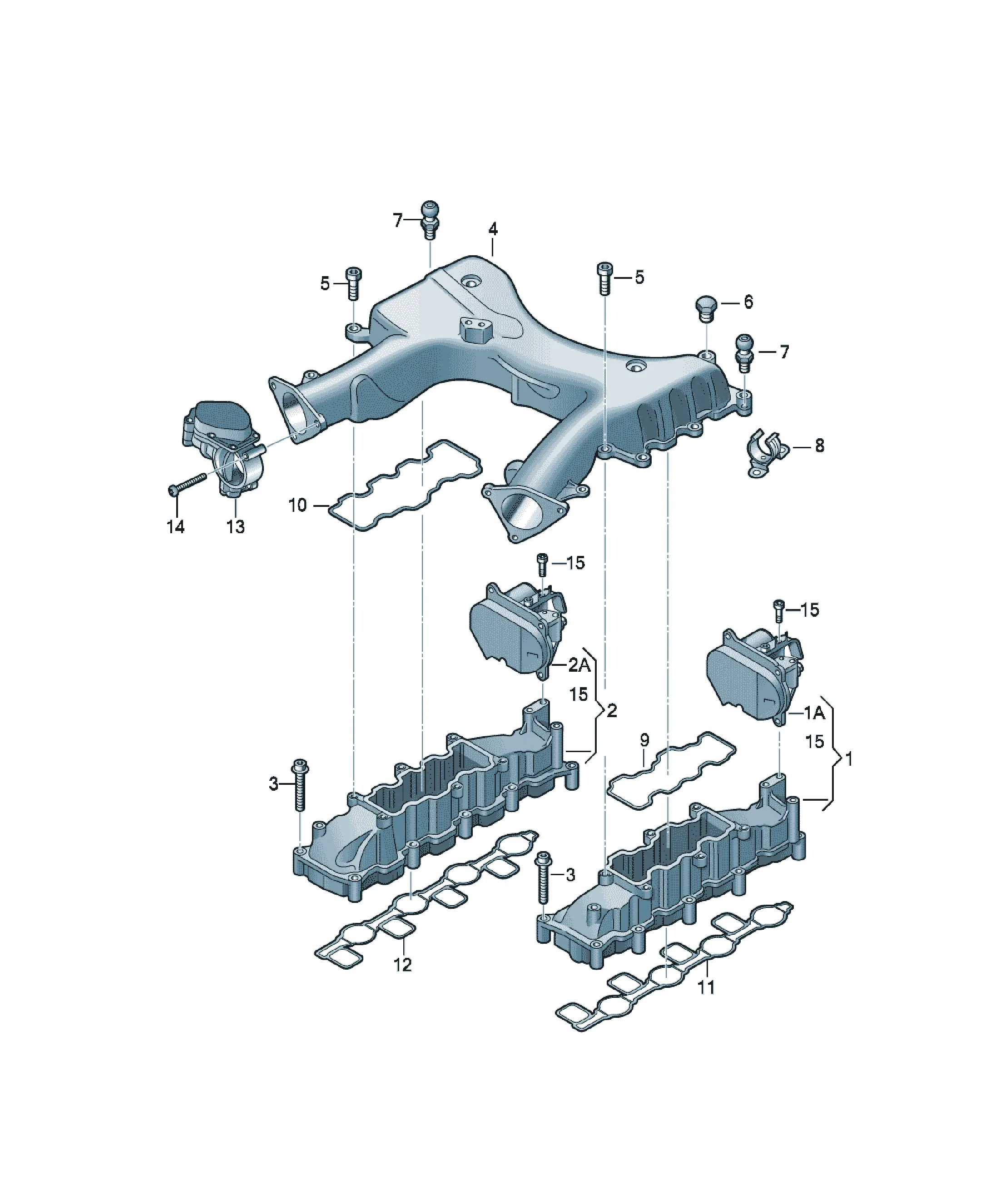

Впускной коллектор

[Name] [Note] [Model info] [QTY]

Throttle valve control element left a. right CCFA 2

Replacements: 057128063H

mating connector

1J0973705 Flat contact housing with contact locking mechanism 5 pin 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X65 2

[Name] [Note] [Model info] [QTY]

Throttle valve control element left a. right CCFC 2

Replacements: 057128063G

mating connector

1J0973705 Flat contact housing with contact locking mechanism 5 pin 1

[Name] [Note] [Model info] [QTY]

Intake manifold left CCFC 1

Replacements: 057129711BC

[Name] [Note] [Model info] [QTY]

Intake manifold left CCFA 1

Replacements: 057129711AM

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

matching contact housing: 1K0 973 804

[Name] [Note] [QTY]

Seal right upper 1

Included in position: 2

[Name] [Note] [QTY]

Seal left lower 1

Included in position: 1

[Name] [Note] [QTY]

Seal right lower 1

Included in position: 2

[Name] [Note] [Model info] [QTY]

Intake manifold right CCFC 1

Replacements: 057129712AG

[Name] [Note] [Model info] [QTY]

Intake manifold right CCFA 1

Replacements: 057129712T

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

matching contact housing: 1K0 973 804

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 20

[Name] [QTY]

Air pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X20 10

[Name] [Note] [QTY]

sealing plug M8X1 1

[Name] [Note] [QTY]

Ball pin 15X12 4

Intake manifold

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Seal left upper 1

Included in position: 1
