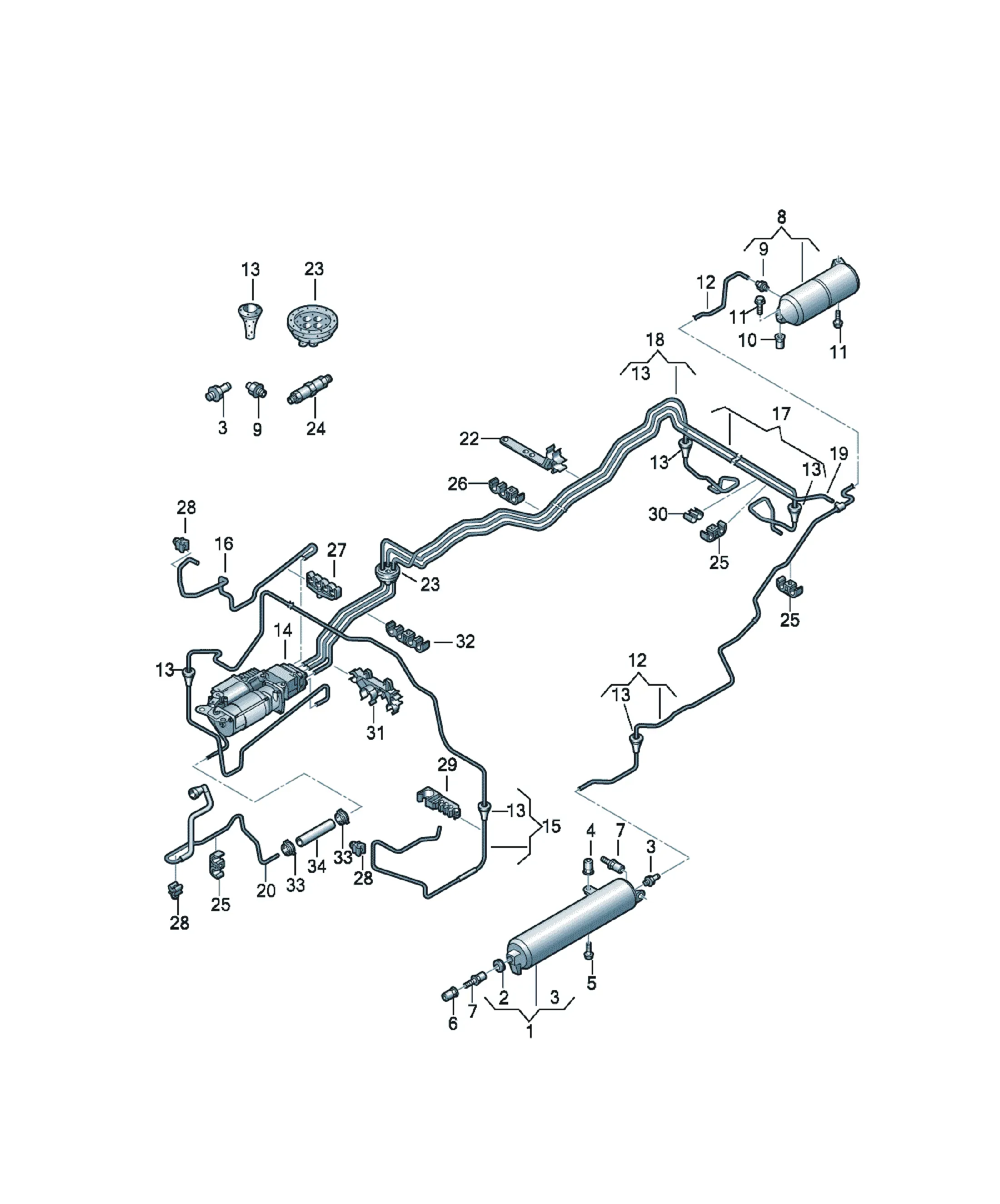

Система подачи воздуха

[Name] [Note] [QTY]

Pressure accumulator front 1

[Name] [Note] [QTY]

rivetted cap nut M6/0,5-3 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Air line blue 1

[Name] [QTY]

Grommet 2

[Name] [Note]

Air supply unit

see illustration: 616-030

[Name] [Note] [QTY]

Air line violet 1

left front

lhd

[Name] [Note] [QTY]

Air line green 1

right front

[Name] [Note] [QTY]

Air line red 1

left rear

[Name] [Note] [QTY]

Air line yellow 1

right rear

[Name] [Note] [QTY]

Air line blue 1

[Name] [QTY]

Grommet 2

[Name] [QTY]

suction line 1

[Name] [QTY]

bracket for pressure line 1

[Name] [QTY]

Grommet 2

Replacements: 7P0616047

[Name] [Note] [QTY]

push-on connector 6MM X

[Name] [Note] [QTY]

Clip 2 point 1

Replacements: 8K0611797G

[Name] [QTY]

Retainer for brake pipe X

[Name] [Note] [QTY]

Bracket 4 point X

[Name] [Note] [QTY]

Clip 6 2

[Name] [Note] [QTY]

Hose bracket 12 1

[Name] [Note] [QTY]

Bracket 5 point X

[Name] [Note] [QTY]

push-on connector M10X1 X

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Bracket 6-pin 1

[Name] [Note] [QTY]

Retainer for brake pipe 4 point 1

Replacements: 6R0611797C

[Name] [Note] [QTY]

clamp 21X7X0,60 2

[Name] [Note] [QTY]

Vacuum hose 60MM 1

[Name] [Note] [QTY]

rivetted cap nut M8/0,5-3 2

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

Replacements: N 91185401

[Name] [Note] [QTY]

rivetted cap nut M8/0,5-3 2

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

[Name] [Note] [QTY]

Pressure accumulator rear 1

[Name] [Note] [QTY]

Connection piece M10X1 1
