Шланги, трубки тормозной системы

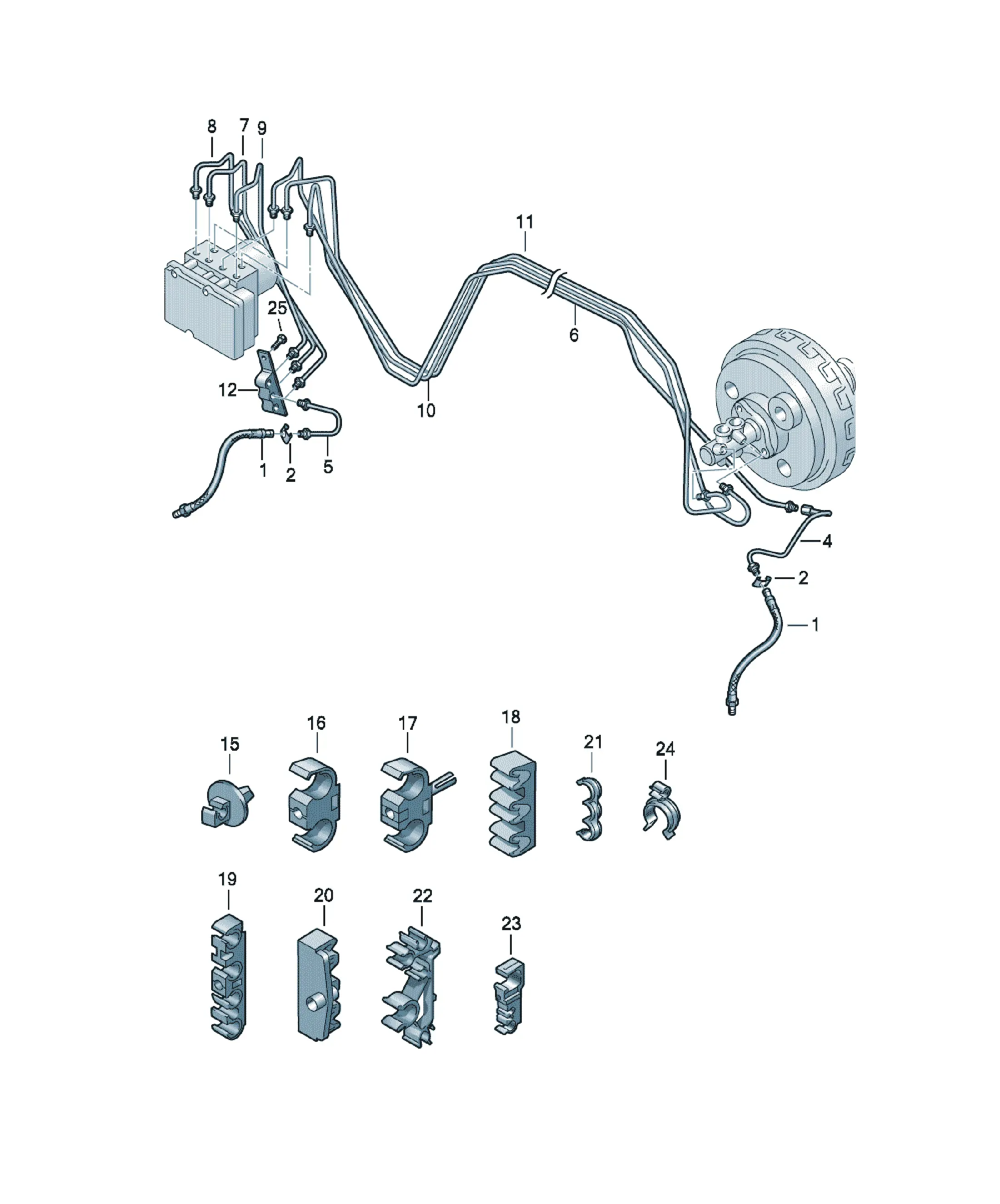

Тормозная магистраль

Схемы узла

6 схем

Детали

33 детали

Стяжка кабельная двойная
4A0820199 Предложения

[Name] [Note] [QTY]
double cable tie 7X213/140MM X
Втулка
701721493 Предложения

[Name] [Note] [QTY]
Grommet lhd 1
Шумоизоляция (самоклеящ.)
171827379 Предложения

[Name] [Note] [QTY]
sound absorber (self-adhesive) 30X20X10MM X
Держатель
8D0611797D Предложения

[Name] [QTY]
Bracket 1
Grommet
7L0616860 Предложения

[Name] [Note] [QTY]
Grommet rhd 1
Держатель
1J0611853 Предложения

[Name] [Note] [QTY]
Bracket 1
to be used for item: 6
7P6611701 Предложения

[Name] [Note] [QTY]
Brake hose 515MM 2
7L8614742D Предложения

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
7L8614742C Предложения

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
7L8614741E Предложения

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
7L8614741F Предложения

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics lhd 1
7L0614124A Предложения

[Name] [Note] [QTY]
distributor for brake line 3 point 1
281611767B Предложения

[Name] [QTY]
Retainer for brake pipe 5
8K0611797D Предложения

[Name] [Note] [QTY]
Clip 2 point X
Replacements: 8K0611797G
7L0611793D Предложения

[Name] [Note] [QTY]
Bracket 4 point 1
8Z0611797 Предложения

[Name] [Note] [QTY]
Brake line bracket 2 point X
7L0611793 Предложения

[Name] [Note] [QTY]
Bracket 4 point 1
also use: 171 827 379 2
Accompanying details: 171827379
7L8611793A Предложения

[Name] [Note] [QTY]
Bracket 4 point 1
lhd
1J0611797B Предложения

[Name] [Note] [QTY]
Retainer for brake pipe 4 point X
Replacements: 6R0611797C
4D0611715B Предложения

[Name] [QTY]
retaining spring X
7L0611797 Предложения

[Name] [Note] [QTY]
Bracket 4 point 1
2D0611853 Предложения

[Name] [Note] [QTY]
Bracket 3 point X
7L0611850 Предложения

[Name] [Note] [QTY]
Bracket 6-pin X
7L0971848A Предложения

[Name] [Note] [QTY]
Bracket 5 point X
192711532 Предложения

[Name] [Note] [QTY]
Bracket lhd 1
N90533005 Предложения

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X20 1
7L0614723D Предложения

[Name] [Note] [QTY]
brake line from connecting piece to brake hose left front 1
7L0614724C Предложения

[Name] [Note] [QTY]
brake line from t-piece to brake hose right front 1
7L8614727G Предложения

[Name] [Note] [QTY]
brake line from hydraulic system to junction left front 1
rhd
with: 7L0 616 860 1
also use: 1J0 611 853 1
Accompanying details: 1J0611853
7L8614727H Предложения

[Name] [Note] [QTY]
brake line from hydraulic system to junction left front 1
lhd
with: 701 721 493 1
7L8614728A Предложения

[Name] [Note] [QTY]
brake line from hydraulic system to junction right front 1
7L8614729A Предложения

[Name] [Note] [QTY]
brake line from hydraulic system to junction rear 1
7L8614730A Предложения

[Name] [Note] [QTY]
brake line from hydraulic system to junction rear 1
