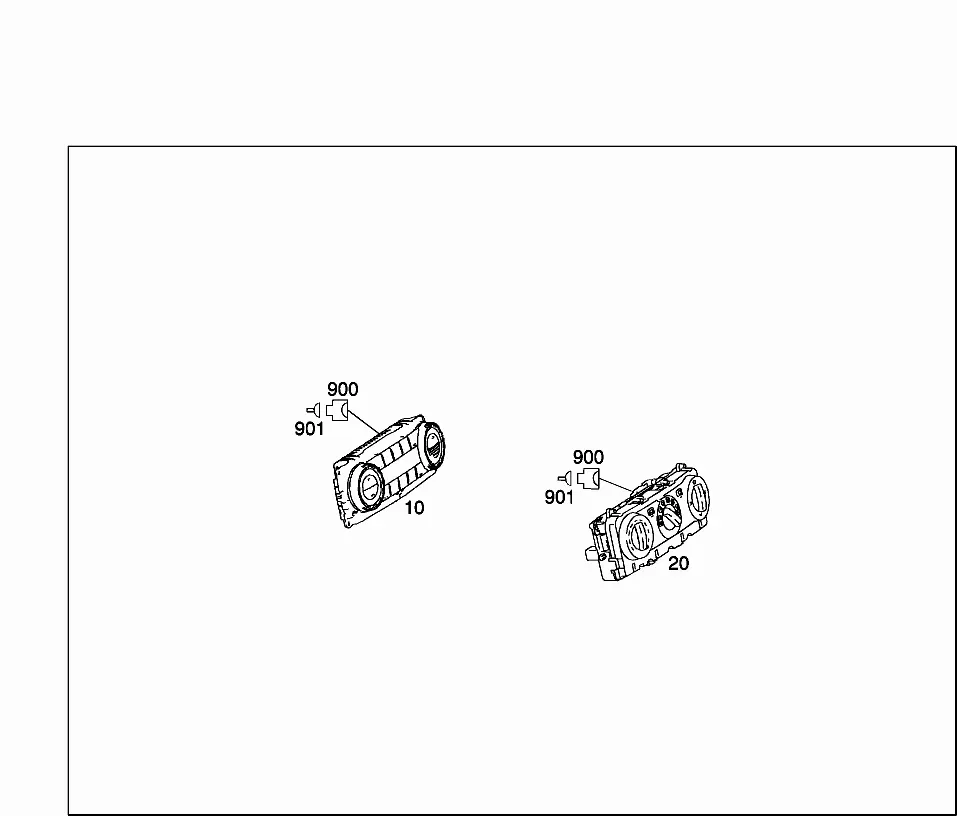

Блок управления

HEATING - VENTILATION AIR CONDITIONING

Replaced by A 1698301785

020: From Chassis: J 342202

020: From Date: 02.06.2006

580: AIR CONDITIONING

QTY: 001

HEATING - VENTILATION AIR CONDITIONING

Replaced by A 1698301985

020: From Chassis: J 342202

020: From Date: 02.06.2006

580: AIR CONDITIONING

QTY: 001

HEATING - VENTILATION AIR CONDITIONING

Replaced by A 1698302685

020: From Chassis: J 342202

020: From Date: 02.06.2006

580: AIR CONDITIONING

QTY: 001

HEATING - VENTILATION AIR CONDITIONING

Replaced by A 1699000900

020: From Chassis: J 342202

020: From Date: 02.06.2006

580: AIR CONDITIONING

QTY: 001

HEATING - VENTILATION AIR CONDITIONING

020: From Chassis: J 342202

020: From Date: 02.06.2006

QTY: 001

CONTROL MODULE AIR CONDITIONING

18-PIN MQS;N19

580: AIR CONDITIONING

QTY: 001

CONTROL MODULE AIR CONDITIONING

MQS;N19

580: AIR CONDITIONING

QTY: 001

WITH LEVER

N19; TO A 001 545 48 40

580: AIR CONDITIONING

QTY: 001

CONTROL MODULE AIR CONDITIONING

0.25-0.5 MM2 MQS;N19

580: AIR CONDITIONING

CONTROL MODULE AIR CONDITIONING

0.75 MM2 MQS;N19

021: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

021: SEE WIS FOR REPAIR INSTRUCTIONS.

021: =================================================================================================

021: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

021: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

021: A 002 546 00 41 RED 2.0 - 4.0 MM2

021: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

021: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

021: BUTT JOINT:

021: A 002 546 13 41 0.5 MM2

021: A 002 546 14 41 0.8 MM2

021: A 002 546 15 41 1.3 MM2

021: A 002 546 16 41 2.0 MM2

021: ===================================================================================================

580: AIR CONDITIONING
