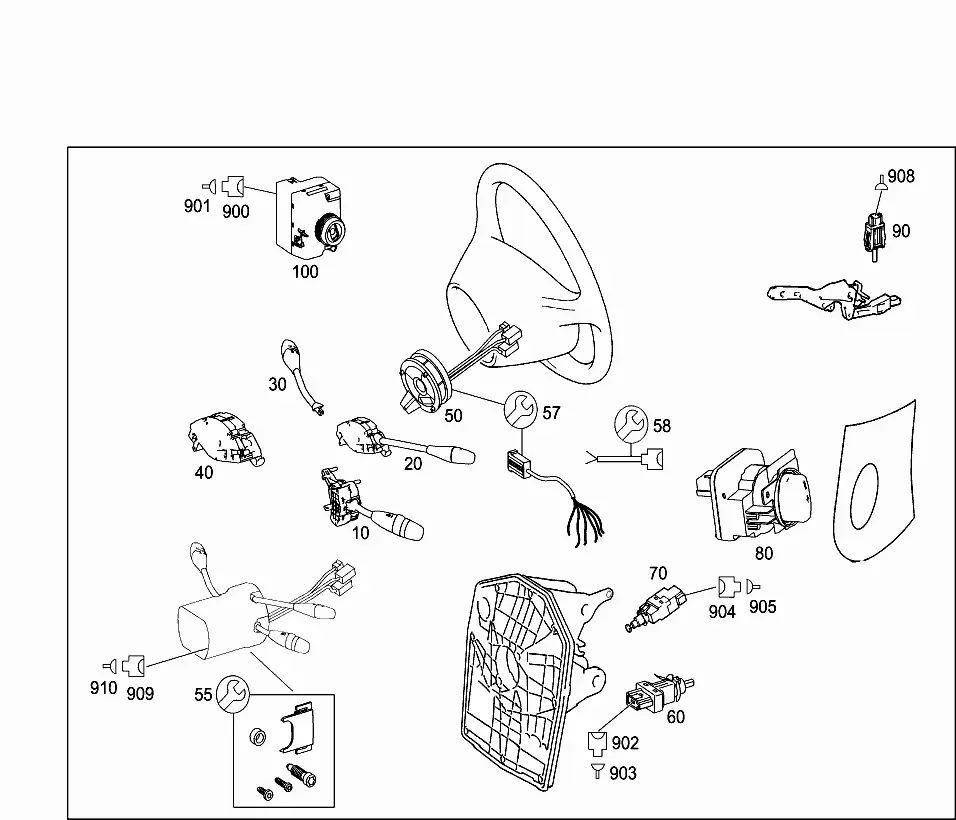

Подрулевой переключатель

QTY: 001

STARTING IGNITION SWITCH

088: From Chassis: J 674767

088: From Date: 19.09.2008

429: THEFT-RELEVANT PART

QTY: 001

CRUISE CONTROL (TEMPOMAT)

-494-511-512-529+440: USA

-494-511-512-529+440: RADIO MB EXQUISIT WITH VK,RDS (PANASONIC)

-494-511-512-529+440: MB RADIO SPECIAL WITH TRAFF. MESS., RDS

QTY: 001

WITH STEERING ANGLE SENSOR

Replaced by A 1694640818

414: THE OLD PART MUST NO LONGER BE INSTALLED

QTY: 001

WITH STEERING ANGLE SENSOR

Replaced by A 1694641218

QTY: 001

WITH STEERING ANGLE SENSOR

Replaced by A 1694641518

QTY: 001

WITH STEERING ANGLE SENSOR

QTY: 001

WITH STEERING ANGLE SENSOR

Replaced by A 1694640618

QTY: 001

COVERINGS AND SCREWS

QTY: 001

CONTACT SPIRAL

QTY: 001

PRIMER PELLET

2-PIN 0.5MM2;CODE A / 180

076: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

PRIMER PELLET

2-PIN 0.5MM2;CODE C / 90

076: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

PRIMER PELLET

CODE C / 180

076: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

PRIMER PELLET

2-PIN 0.5MM2;CODE A / 90

076: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

STOP LIGHT

Replaced by A 0015456709

072: From Chassis: J 625723

072: From Date: 02.06.2008

QTY: 001

STOP LIGHT

072: From Chassis: J 625723

072: From Date: 02.06.2008

QTY: 001

LIGHT SWITCH

085: From Chassis: J 625723

085: From Date: 27.05.2008

Except for the model year808

900: 9174 079

900: QFT169A1002 LASER BLACK

Version: L

QTY: 001

PARKING BRAKE

QTY: 001

IGNITION LOCK

8-PIN MQS;N73

QTY: 001

IGNITION LOCK

5-PIN SLK2.8;N73

QTY: 001

IGNITION LOCK

0.25-0.5 MM2 MQS;N73

IGNITION LOCK

0.75 MM2 MQS;N73

023: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

023: SEE WIS FOR REPAIR INSTRUCTIONS.

023: =================================================================================================

023: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

023: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

023: A 002 546 00 41 RED 2.0 - 4.0 MM2

023: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

023: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

023: BUTT JOINT:

023: A 002 546 13 41 0.5 MM2

023: A 002 546 14 41 0.8 MM2

023: A 002 546 15 41 1.3 MM2

023: A 002 546 16 41 2.0 MM2

023: ===================================================================================================

IGNITION LOCK

0.75-1.0 MM2 SLK2.8;N73

IGNITION LOCK

2.5 MM2 SLK;N73

023: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

023: SEE WIS FOR REPAIR INSTRUCTIONS.

023: =================================================================================================

023: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

023: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

023: A 002 546 00 41 RED 2.0 - 4.0 MM2

023: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

023: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

023: BUTT JOINT:

023: A 002 546 13 41 0.5 MM2

023: A 002 546 14 41 0.8 MM2

023: A 002 546 15 41 1.3 MM2

023: A 002 546 16 41 2.0 MM2

023: ===================================================================================================

STOP LIGHT SWITCH

4-PIN JPT;S9/1

QTY: 001

STOP LIGHT SWITCH

0.5-1.0 MM2 JPT;S9/1

PARKING BRAKE INSPECTION SWITCH

0.5-1.5 MM2;S12

JACKET COLUMN MODULE 14-PIN

14 PIN;N80

QTY: 001

JACKET TUBE MODULE

N80

QTY: 001

JACKET TUBE MODULE

0.5 MM2 MLK1.2S;N80
