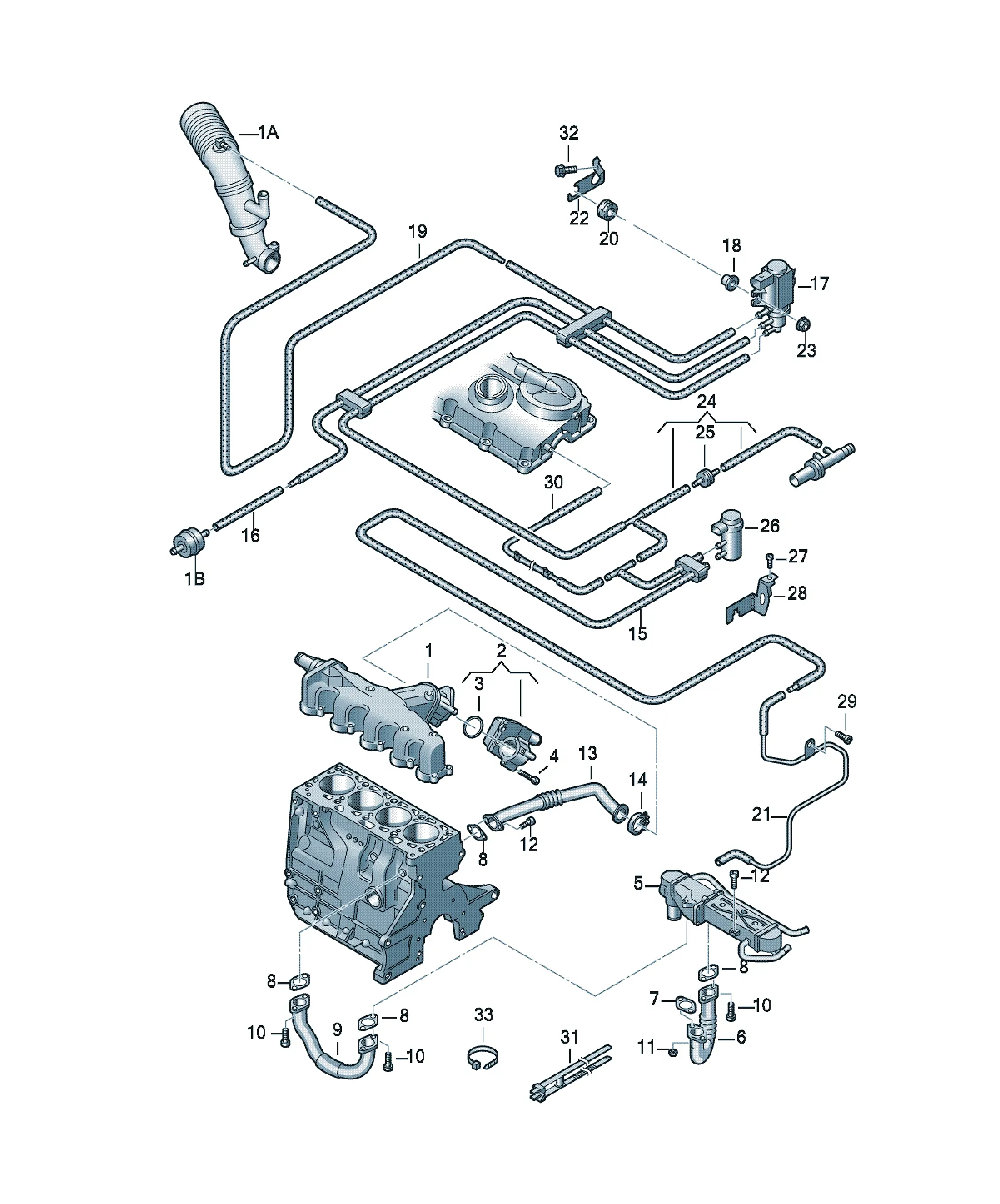

Система СРОГ

[Name] [QTY]

Securing clip 1

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

Threaded pin M8X22 2

additionally to be used items: 11

[Name] [Note]

see illustration: 129-018

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 6

[Name] [Note] [QTY]

hexagon nut, self-locking M8 2

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 4

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Clamp 1

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

Pressure converter 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Distance piece 2

[Name] [QTY]

Vacuum hose 1

[Name] [Note]

see illustration: 129-018

[Name] [Note] [QTY]

Connecting pipe 4/4 1

[Name] [QTY]

Throttle valve control element 1

mating connector

1J0973705 Flat contact housing with contact locking mechanism 5 pin 1

8K0973705 Flat contact housing with contact locking mechanism 5 pin 1

black

[Name] [QTY]

Grommet 2

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

Hexagon collar nut M6 2

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 1

[Name] [QTY]

Retaining plate 1

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X55 3

[Name] [QTY]

Cooler for exhaust gas recuperation with control flap 1

Old part

03L131512DP Cooler for exhaust gas recuperation with control flap

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Connecting pipe 1
