Клапан системы рециркуляции ОГ (EGR)

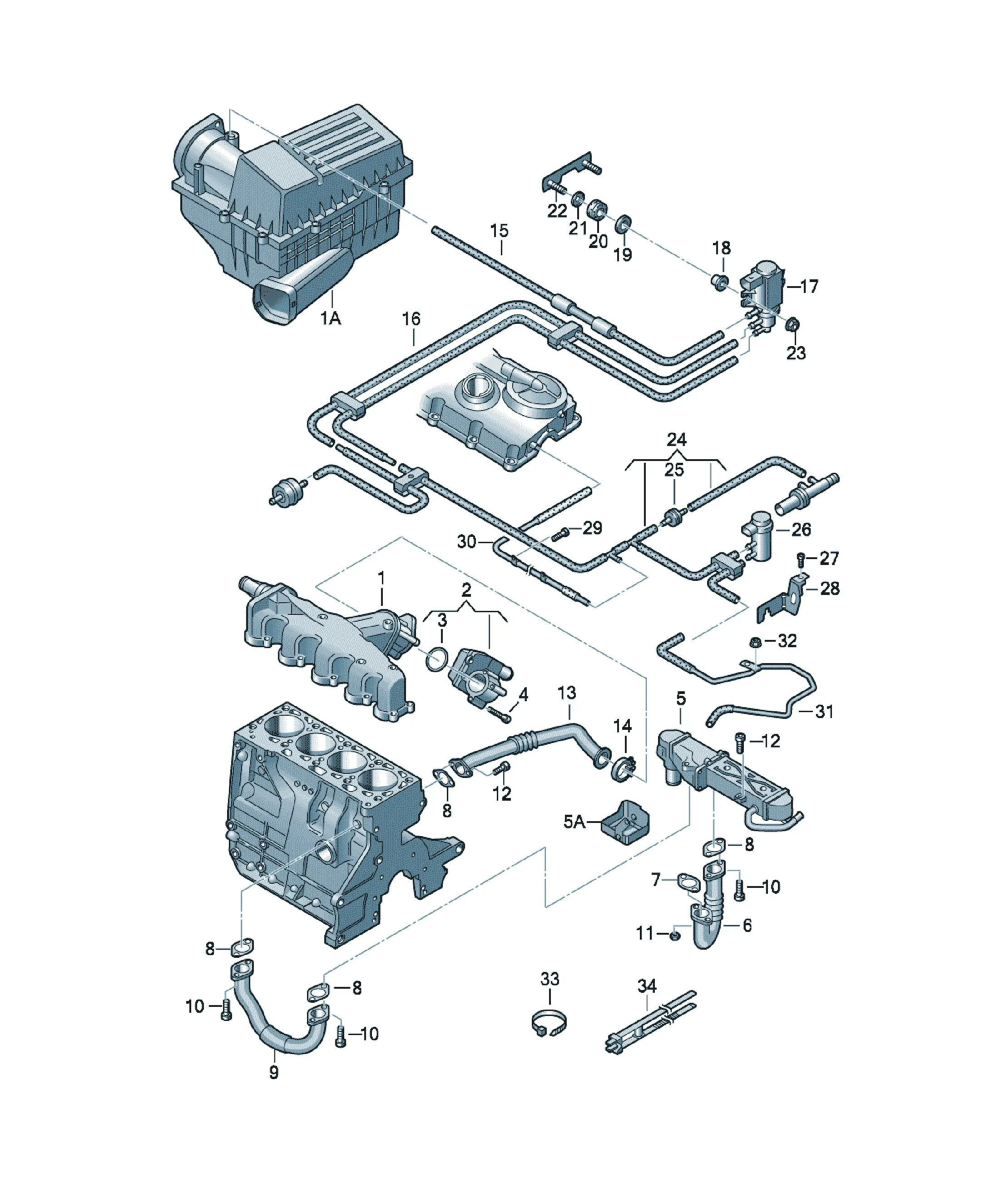

Система СРОГ

Схемы узла

3 схемы

Детали

41 деталь

Retaining plate
6R0906287 Предложения

[Name] [QTY]
Retaining plate 2
Securing bracket
6Q0131927 Предложения

[Name] [QTY]
Securing clip 1
Тройник Y-образный
2D0133381 Предложения

[Name] [Note] [QTY]
Y-piece 4/4/4 1
[Name] [Note]
see illustration: 129-018
N91032702 Предложения

[Name] [Note] [QTY]
Round-head screw with inner hexagon socket head M6X20 6
N90894601 Предложения

[Name] [Note] [QTY]
hexagon nut, self-locking M8 2
N10196103 Предложения

[Name] [Note] [QTY]
Oval socket head bolt with hex drive M6X18 4
03L131521R Предложения

[Name] [QTY]
Connecting pipe 1
070131548C Предложения

[Name] [QTY]
Clamp 1
03L131055DT Предложения

[Name] [QTY]
Vacuum hose 1
D - 27.05.2014>>
03L131055CP Предложения

[Name] [QTY]
Vacuum hose 1
D >> - 26.05.2014
03L131055CQ Предложения

[Name] [QTY]
Vacuum hose 1
1K0906627B Предложения

[Name] [QTY]
Pressure converter 1
mating connector
1J0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
8P0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
052129734 Предложения

[Name] [Note] [QTY]
Distance piece 17,5X10,6X10,6 2
1K0906139 Предложения

[Name] [QTY]
Thrust ring 1
[Name] [Note]
see illustration: 129-018
03L128063T Предложения

[Name] [QTY]
Throttle valve control element 1
mating connector
8K0973705 Flat contact housing with contact locking mechanism 5 pin 1
black
1J0973705 Flat contact housing with contact locking mechanism 5 pin 1
046131887 Предложения

[Name] [QTY]
Grommet 2
1K0906139A Предложения

[Name] [QTY]
Thrust ring 1
046130405 Предложения

[Name] [QTY]
Retaining plate 2
N01508210 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M6 2
03L131055CN Предложения

[Name] [QTY]
Vacuum hose 1
046905291B Предложения

[Name] [QTY]
Non-return valve 1
1K0906283A Предложения

[Name] [QTY]
Solenoid valve 1
mating connector
1J0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
1K0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
8P0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
N10406505 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X12 1
03L131529F Предложения

[Name] [QTY]
Retaining plate 1
03L131529G Предложения

[Name] [QTY]
Retaining plate 1
N10406505 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X12 1
03L131547B Предложения

[Name] [Note] [QTY]
Square ring 55 1
03L131605R Предложения

[Name] [QTY]
Connecting pipe 1
03L131605M Предложения

[Name] [QTY]
Vacuum hose 1
N10170303 Предложения

[Name] [Note] [QTY]
round hd. screw M6X10 1
3D0971838N Предложения

[Name] [Note] [QTY]
Cable ties with bracket 4,5X200 1
4A0820199 Предложения

[Name] [Note] [QTY]
double cable tie 7X213/140MM X
N10670301 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X55 3
03L131512DP Предложения

[Name] [QTY]
Cooler for exhaust gas recuperation with control flap 1
Exchange program parts: 03L131527 X
03L131531A Предложения

[Name] [QTY]
Heat insulation 1
03P131521E Предложения

[Name] [QTY]
Connecting pipe 1
04L131547S Предложения

[Name] [QTY]
Seal 1
03K131547C Предложения

[Name] [QTY]
Seal 1
03P131521A Предложения

[Name] [QTY]
Connecting pipe 1
