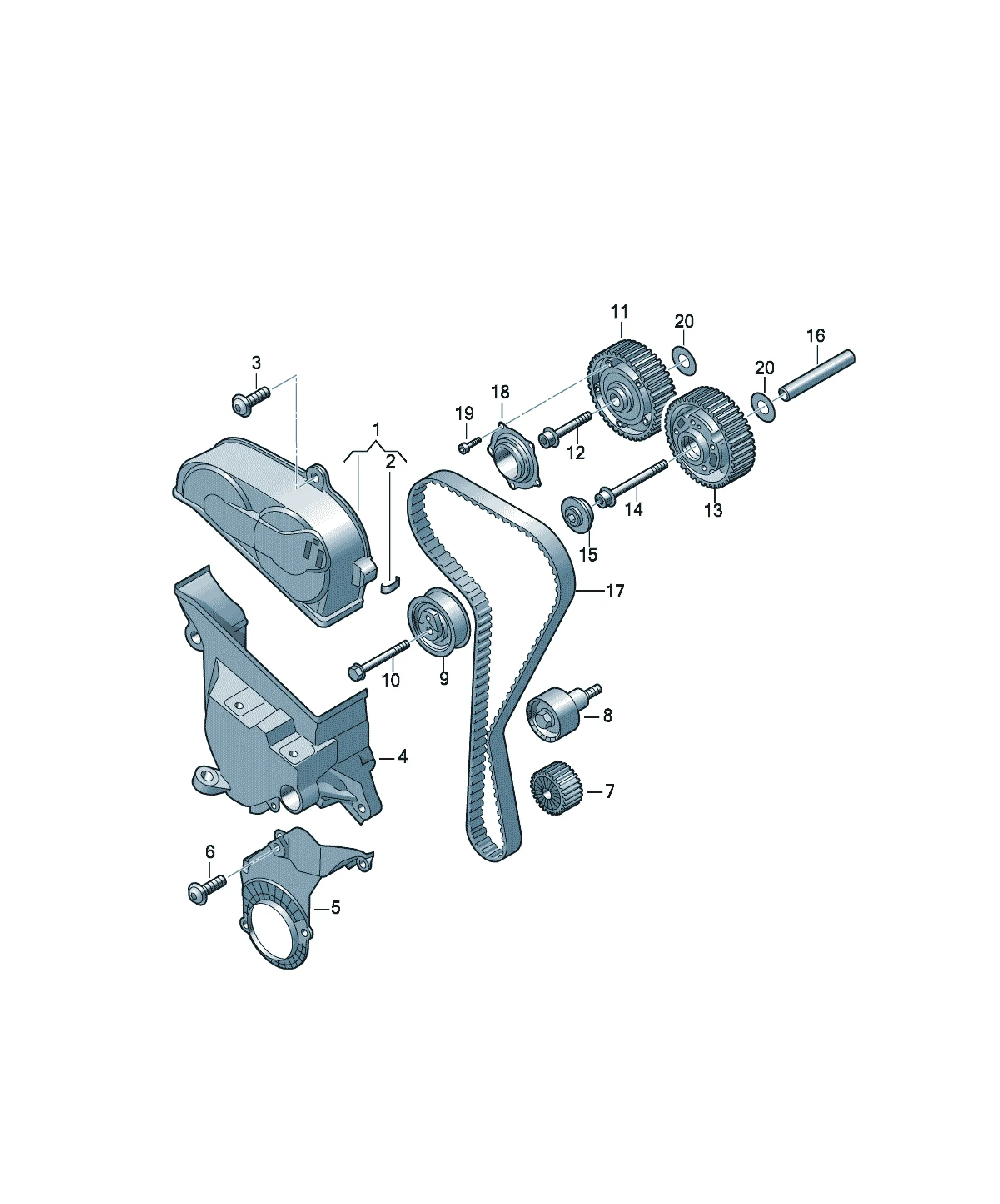

Привод газораспределительного механизма

[Name] [Note] [QTY]

O-ring 69,4X3,1 1

also use:

[Name] [Note] [QTY]

Toothed belt guard upper 1

[Name] [Note] [QTY]

Hexagon flange screw M8X70 1

[Name] [Note] [QTY]

camshaft adjuster unit Outlet 1

[Name] [QTY]

Socket head collared bolt with inner multipoint head 1

[Name] [Note] [QTY]

camshaft adjuster unit Inlet 1

[Name] [QTY]

Socket head collared bolt with inner multipoint head 1

[Name] [QTY]

sealing plug 1

[Name] [QTY]

Sleeve 1

[Name] [Note] [QTY]

toothed belt Z=163 1

[Name] [Note] [QTY]

End cap 04E.109.153 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X16 5

[Name] [QTY]

Spring clip 2

[Name] [Model info] [QTY]

Disc (diamond coated) ZAS 2

[Name] [Note] [QTY]

Hex collared bolt M6X20 1

[Name] [Note]

Support

see illustration, item: 199-033,21

[Name] [Note] [QTY]

Toothed belt guard lower 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 5

[Name] [QTY]

toothed belt pulley 1

[Name] [QTY]

idler pulley 1

[Name] [QTY]

Tensioning roller 1
