Ремень ГРМ

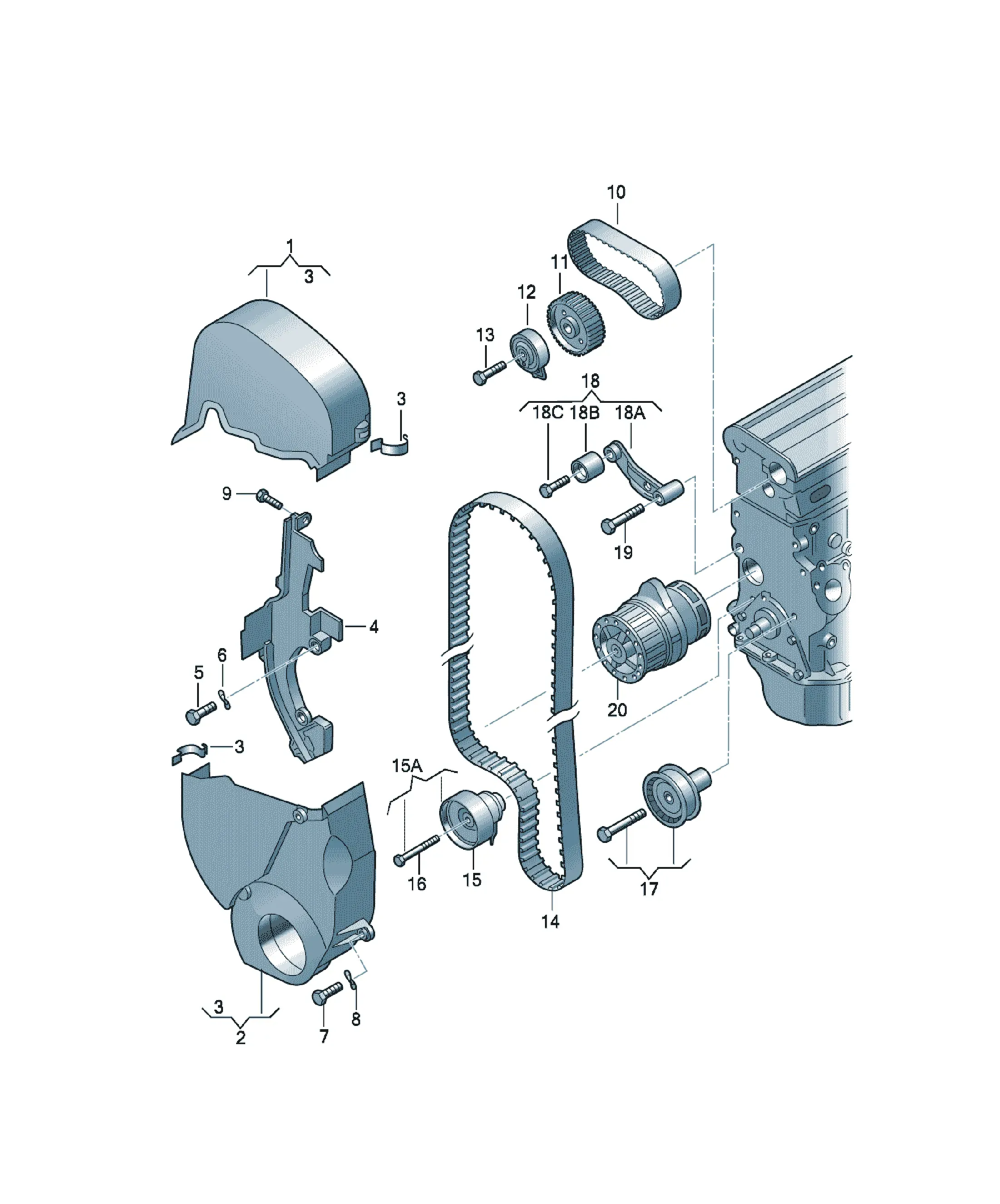

Привод газораспределительного механизма

Схемы узла

7 схем

24 детали

036109121L Предложения

[Name] [Note] [QTY]
Toothed belt guard upper 1
036109119P Предложения

[Name] [Note] [QTY]
toothed belt Z=58 1
[Name] [Note] [QTY]
toothed belt pulley 1
see illustration: 109-015
036109243AG Предложения

[Name] [QTY]
Tensioning roller 1
N10268304 Предложения

[Name] [Note] [QTY]
Hex collared bolt AM8X45 1
036109119AG Предложения

[Name] [Note] [QTY]
toothed belt Z=130 1
[Name]
Not for this model
036109243AF Предложения

[Name] [QTY]
Tensioning roller 1
[Name]
Not for this model
036109244J Предложения

[Name] [QTY]
idler pulley 1
036109181B Предложения

[Name] [QTY]
BRACKET FOR idler pulley 1
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
N90596906 Предложения

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder, self-locking M10X55X32 1
036109127L Предложения

[Name] [Note] [QTY]
Toothed belt guard lower 1
[Name]
Coolant pump
026109150A Предложения

[Name] [QTY]
Spring clip 4
036109170K Предложения

[Name] [QTY]
Cover 1
N91102201 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X35 2
[Name]
Not for this model
N01022013 Предложения

[Name] [Note] [QTY]
Hexagon bolt M6X30 3
[Name]
Not for this model
N01028712 Предложения

[Name] [Note] [QTY]
Hexagon bolt M6X16 1
