Жгут проводов

[Name] [QTY]

Adapter cable loom 1

Control unit for reversing camera system

radio

[Name] [Note] [QTY]

flat contact housing with cap 26 pin 1

black

Locking mechanism white

radio

Radio navigation unit

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000098670A adapter aerial wire 300MM 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 54-pin 1

black/blue

Control unit for reversing camera system

Possible single wire:

000979010E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

[Name] [Note]

Cable set for tailgate

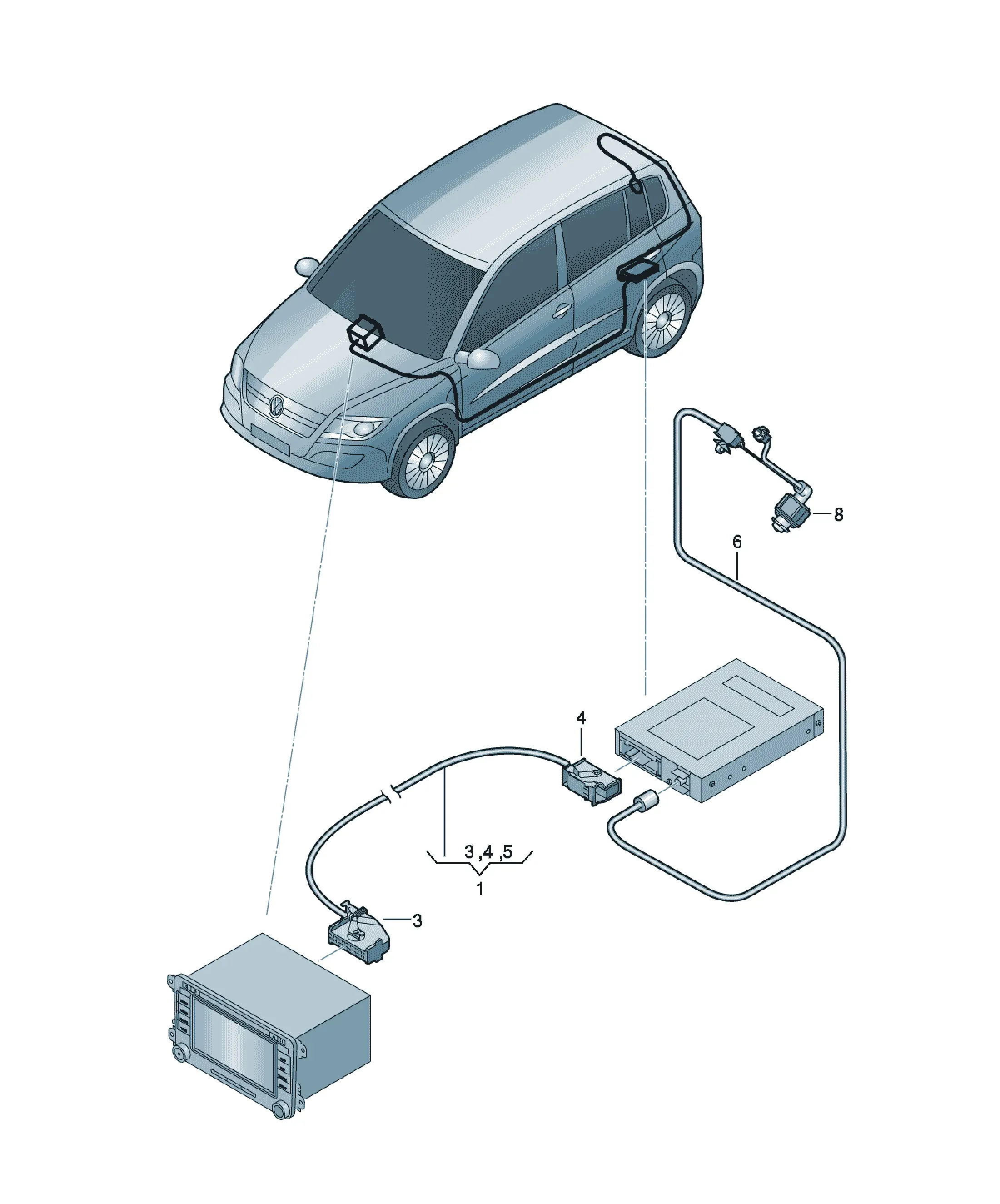

see illustration, item: 972-082,2

[Name] [Note]

see illustration: 907-020
