Датчики

Датчик частоты вращения

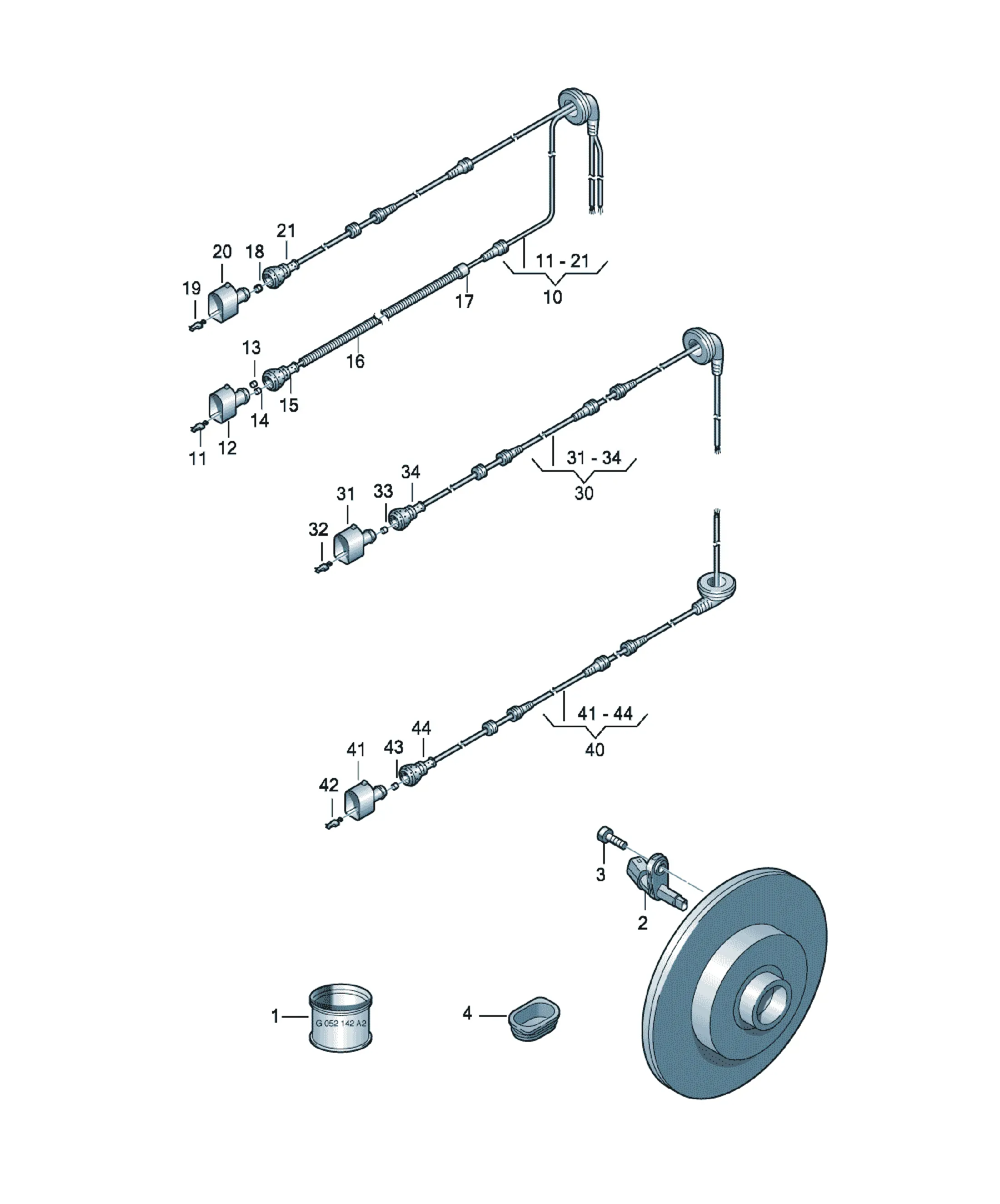

Схемы узла

10 схем

Детали

39 деталей

G052142A2 Предложения

[Name] [Note] [QTY]
poly lubricant 400G 1
5N0927904AC Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
for vehicles with gas discharge bulb
D - 02.11.2009>> - 31.05.2010
5N0927904C Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear 4motion 1
For vehicles with electron- ically controlled damping
5N0927904Q Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
for vehicles with gas discharge bulb
D >> - 02.11.2009
Replacements: 5N0927904AC
5N0927904AE Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
for vehicles with gas discharge bulb
D - 31.05.2010>>
5N0927904T Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear 4motion 1
for vehicles with gas discharge bulb
D - 02.11.2009>>
5N0927904M Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear 4motion 1
for vehicles with gas discharge bulb
D >> - 02.11.2009
Replacements: 5N0927904T
5N0927904H Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor right rear fr.wheel drv 1
For vehicles with electron- ically controlled damping
5N0927904D Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor right rear 4motion 1
For vehicles with electron- ically controlled damping
5N0927904G Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
For vehicles with electron- ically controlled damping
000979131EA Предложения

[Name] [Note] [QTY]
1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
Items supplied
Single wire 5
4B0973712 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
mating connector
4B0973812 Flat connector housing with contact locking mechanism 4 pin X
7L0973812 Flat connector housing with contact locking mechanism 4 pin X
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
357972740E Предложения

[Name] [Note] [QTY]
single wiring seal 3,9X7,8 X
red
for wire cross section: 0,35-0,5
3C0972841 Предложения

[Name] [Note] [QTY]
Bungs 4,0X7,8 X
white
[Name]
Not for this model
N10732401 Предложения

[Name] [Note] [QTY]
corrugated pipe in coils of 5m 'order unit 5' 4,5 X
3D0971838N Предложения

[Name] [Note] [QTY]
Cable ties with bracket 4,5X200 X
For hole/material thickness: 6,5 / 0,3-3
357972740D Предложения

[Name] [Note] [QTY]
single wiring seal 3,9X7,8 X
Grey
for wire cross section: 0,5-1,0
000979131EA Предложения

[Name] [Note] [QTY]
1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
flat contact 1,5
Items supplied
Single wire 5
WHT003858 Предложения

[Name] [Note] [Model info] [QTY]
speed sensor right fr.wheel drv 1
mating connector
8T0973702 flat contact housing with gasket 2 pin 1
black
WHT003859 Предложения

[Name] [Note] [Model info] [QTY]
speed sensor left fr.wheel drv 1
mating connector
8T0973702 flat contact housing with gasket 2 pin 1
black
WHT003857 Предложения

[Name] [Note] [Model info] [QTY]
speed sensor left 4motion 1
Replacements: WHT003857D
mating connector
8T0973702 flat contact housing with gasket 2 pin 1
black
WHT003856 Предложения

[Name] [Note] [Model info] [QTY]
speed sensor right 4motion 1
Replacements: WHT003856D
mating connector
8T0973702 flat contact housing with gasket 2 pin 1
black
8T0973702 Предложения

[Name] [Note] [QTY]
flat contact housing with gasket 2 pin 1
Possible single wire: 000 979 131 X
000 979 131 A X
mating connector
counterpart to: 1
speed sensor
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0906102 Предложения

[Name] [Note] [QTY]
Grommet 8,2X40 1
N01474011 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M6X16 1
6Q0971907 Предложения

[Name] [QTY]
Protective cap 1
5N0927904K Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear 4motion 1
D >> - 02.11.2009
Replacements: 5N0927904R
5N0927904R Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear 4motion 1
D - 02.11.2009>>
5N0927904S Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor right rear 4motion 1
5N0927904N Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
D >> - 02.11.2009
Replacements: 5N0927904AA
5N0927904AA Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor left rear fr.wheel drv 1
D - 02.11.2009>>
5N0927904P Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor right rear fr.wheel drv 1
D >> - 02.11.2009
Replacements: 5N0927904AB
5N0927904AB Предложения

[Name] [Note] [Model info] [QTY]
wiring harness for speed sensor right rear fr.wheel drv 1
D - 02.11.2009>>
8T0973702 Предложения

[Name] [Note] [QTY]
flat contact housing with gasket 2 pin 1
mating connector
counterpart to: 1
speed sensor
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
000979131EA Предложения

[Name] [Note] [QTY]
1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
Items supplied
Single wire 5
357972740D Предложения

[Name] [Note] [QTY]
single wiring seal 3,9X7,8 X
Grey
for wire cross section: 0,5-1,0
D >> - 02.11.2009
357972740E Предложения

[Name] [Note] [QTY]
single wiring seal 3,9X7,8 X
red
for wire cross section: 0,5-1,0
D - 02.11.2009>>
1J0906102 Предложения

[Name] [Note] [QTY]
Grommet 8,2X40 1
