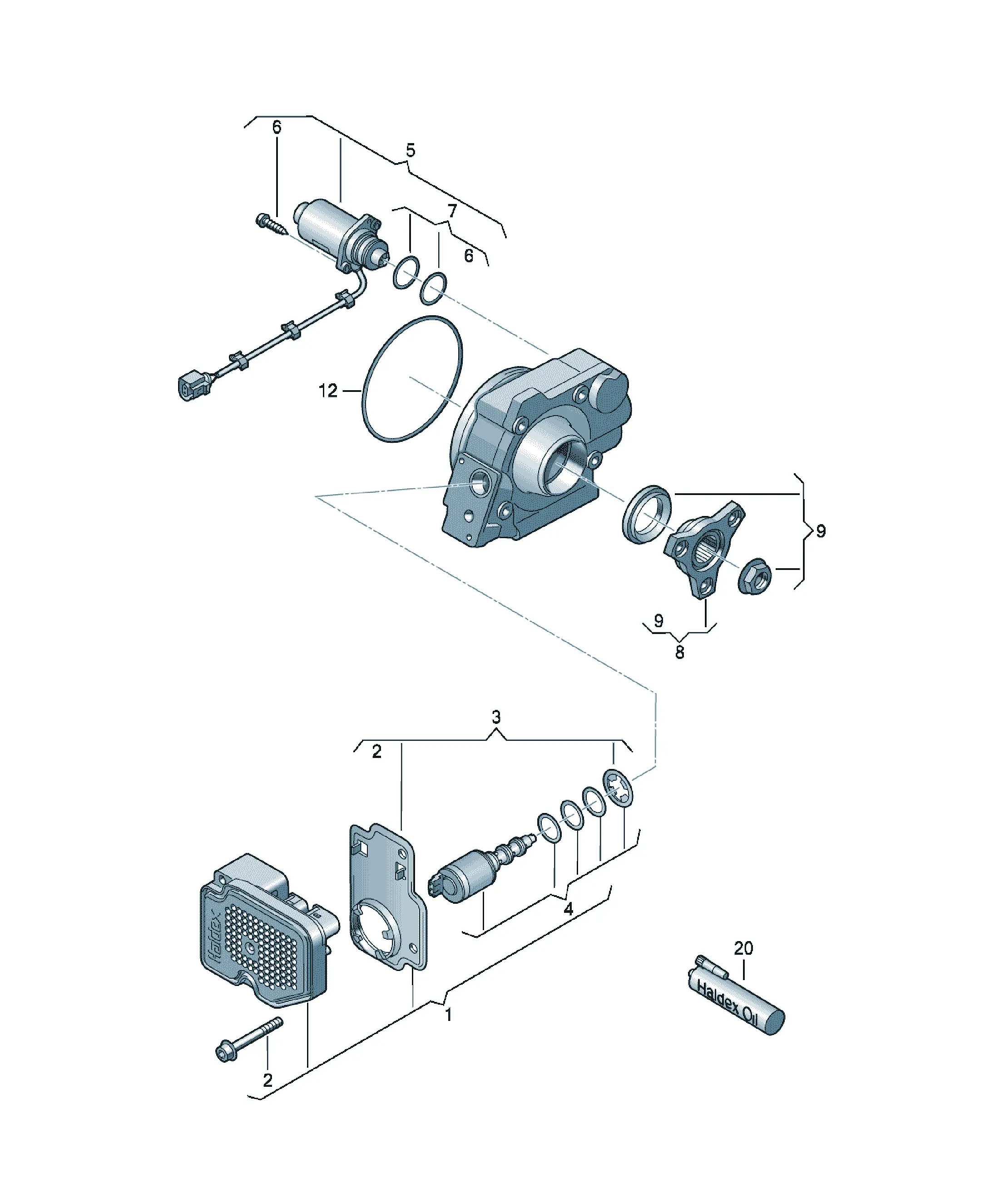

Блок управления полным приводом

[Name] [QTY]

Repair set for four-wheel drive control unit 1

D - 13.04.2010>>

Replacements: 0AY598554C

repair set

Control unit 1

Pressure valve 1

ring 1

Socket head bolt M5X45 2

Cover 1

[Name] [QTY]

Repair set for four-wheel drive control unit 1

D >> - 12.04.2010

Replacements: 0AY598554B

repair set

Control unit 1

Pressure valve 1

FORMRING 1

Socket head bolt M5X45 2

Cover 1

[Name] [Note] [QTY]

O-ring 130X3 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M5X45 2

[Name] [Note] [QTY]

High-perf. transmission fluid 850ml 1

For four-wheel coupling

[Name] [QTY]

Gasket set for control unit 1

repair set

Cover 1

guide ring 1

Socket head bolt M5X45 2

[Name]

Pressure regulating valve

No replacement part

[Name] [QTY]

Repair set for pre-charging pump 1

repair set

pre-charging pump 1

Socket head bolt M5X25 2

[Name] [Note] [QTY]

Socket head bolt M5X25 2

[Name] [QTY]

Gasket set for primer pump 1

repair set

O-ring 34X2,5 2

Socket head bolt M5X25 2

[Name] [QTY]

Repair set for drive flange 1

Replacements: 02D598289B

repair set

02D525289A flange 130MM 1

WHT001284 Hexagon collar nut M22X1,5 1

02D525275 Shaft oil seal 80X10X114 1

[Name] [QTY]

Gasket set for drive flange 1

Replacements: 02D598275A

repair set

02D525275 Shaft oil seal 80X10X114 1

WHT001284 Hexagon collar nut M22X1,5 1
