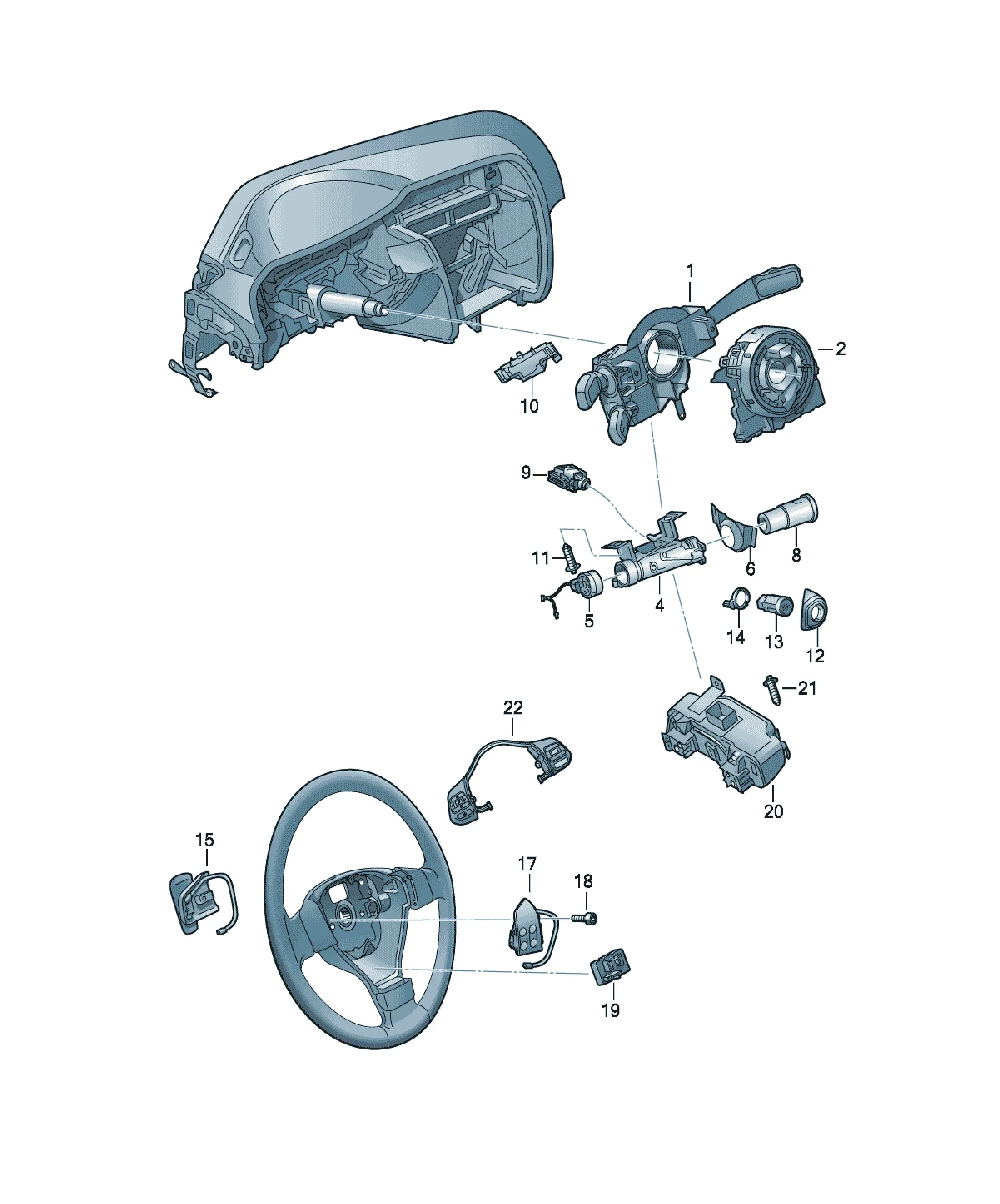

Блок подрулевых переключателей

[Name] [Model info] [QTY]

steering col. combi switch PR:2FQ,2PP, 1

2FJ,2FU+8T0

[Name] [Model info] [QTY]

steering col. combi switch PR:8T2+9Q0 1

[Name]

Satin black

[Name] [Model info] [QTY]

steering col. combi switch PR:8T2+9Q4, 1

9Q5+1MG,1MV

[Name]

Satin black

[Name] [Model info] [QTY]

steering col. combi switch PR:8T2+2FQ, 1

2PP,2FJ,2FU

[Name]

Satin black

[Name]

Satin black

[Name] [Model info] [QTY]

steering col. combi switch PR:8T0+9Q4, 1

9Q5

[Name] [Model info] [QTY]

steering col. combi switch PR:8T0+2FQ, 1

2PP,2FJ,2FU

[Name] [Model info] [QTY]

steering col. combi switch PR:1MG,1MV+ 1

8T0,9Q0

[Name] [QTY]

Fixing plate for steering column switch 1

[Name] [Note] [QTY]

sheer bolt M8X20 X

[Name] [Note]

Cover

For vehicles with KESSY (access and start auth.)

see illustration, item: 857-010,12

[Name] [Note]

Ignition starter button

see illustration, item: 941-050,21

[Name] [QTY]

reader coil 1

D >> - 30.05.2011

mating connector

8W0971832 Flat contact housing 2 pin 1

[Name] [QTY]

reader coil 1

D - 31.05.2011>>

mating connector

8W0971832 Flat contact housing 2 pin 1

black

[Name]

Titan black

[Name] [Note] [Model info] [QTY]

Push button for TIPTRONIC right PR:2FQ,2FU 1

[Name] [Note] [Model info] [QTY]

Push button for TIPTRONIC left PR:2FQ,2FU 1

[Name]

Titan black

[Name] [Note] [Model info] [QTY]

multiple switch for radio and telephone remote control left PR:2PP,2FQ 1

[Name] [Note] [Model info] [QTY]

Multi-switch for multi-function display right PR:2PP,2FQ 1

[Name]

Titan. black/chrome matt silk/ chrome gloss

[Name]

titanium black/white/ chrome matt silk

[Name] [Note] [QTY]

self-tapping screw 4X10 2

[Name] [Model info] [QTY]

Control unit for multifunction steering wheel PR:2PP,2FQ 1

Replacements: 5K0959542B

[Name] [Model info] [QTY]

Control unit for multifunction steering wheel PR:2FJ,2FU 1

[Name] [Model info] [QTY]

Control unit for steering column electronics PR:2FQ,2PP, 1

2FJ,2FU+

4I2,4K0,4K3+

8T0

Replacements: 5K0953569AK

[Name] [Model info] [QTY]

Control unit for steering column electronics PR:2FQ,2PP, 1

2FJ,2FU+

4I2,4K0,4K3+

8T2

Replacements: 5K0953569AL

mating connector

1K0971975 Flat contact housing with contact locking mechanism 20 pin 1

Possible single wire: 000 979 151/A

000 979 009

000 979 242/A

000 979 308

1K0972974 Flat contact housing with contact locking mechanism 4 pin 1

yellow

Possible single wire: 000 979 025 A 0,5

000 979 150 A 1,5

[Name] [Model info] [QTY]

Control unit for steering column electronics PR:4F2,4F6, 1

4I3

Replacements: 5K0953569AL

mating connector

1K0971975 Flat contact housing with contact locking mechanism 20 pin 1

Possible single wire: 000 979 151/A

000 979 009

000 979 242/A

000 979 308

1K0972974 Flat contact housing with contact locking mechanism 4 pin 1

yellow

Possible single wire: 000 979 025 A 0,5

000 979 150 A 1,5

[Name] [Model info] [QTY]

Control unit for steering column electronics PR:1MG,1MV 1

Replacements: 5K0953569AL

mating connector

1K0971975 Flat contact housing with contact locking mechanism 20 pin 1

Possible single wire: 000 979 151/A

000 979 009

000 979 242/A

000 979 308

1K0972974 Flat contact housing with contact locking mechanism 4 pin 1

yellow

Possible single wire: 000 979 025 A 0,5

000 979 150 A 1,5

[Name] [QTY]

Steering column lock 1

D - 08.11.2010>>

Replacements: 5K0905861B

mating connector

1K0972928 Flat contact housing with contact locking mechanism 16 pin 1

black

[Name] [QTY]

Steering column lock 1

D >> - 08.11.2010

mating connector

1K0972928 Flat contact housing with contact locking mechanism 16 pin 1

black

[Name] [Note] [QTY]

sheer bolt M8X20 X

[Name] [Note] [Model info] [QTY]

1 set of combi-switches for multifunction steering wheel left a. right PR:2FJ,2FU 1

repair set

5K0419685E Trim for steering wheel upper PR:2FJ,2FU 1

5K0419685E 3Q7 aluminium

5K0959538A Multi-switch for multi-function display right 1

5K0959537 multiple switch for radio and telephone remote control 1

5K0959537 YQV Titan. black/chrome matt silk/ chrome gloss left

[Name] [QTY]

steering lock 1

[Name] [QTY]

Ignition/starter switch 1

[Name] [QTY]

Trim 1

[Name]

Satin black

[Name] [QTY]

lock cylinder for ignition starter switch with read coil, without key 1

* to retain the one key * system the key code * number and/or chassis * number must be quoted * when ordering

mating connector

8W0971832 Flat contact housing 2 pin 1

black

[Name] [Model info] [QTY]

locking piece PR:G0R,G1A, 1

G1D+4I2,4K0,

4K3

Replacements: 1K0953527D

mating connector

1K0905849 Ignition/starter switch 1

1K0905849B Ignition/starter switch 1
