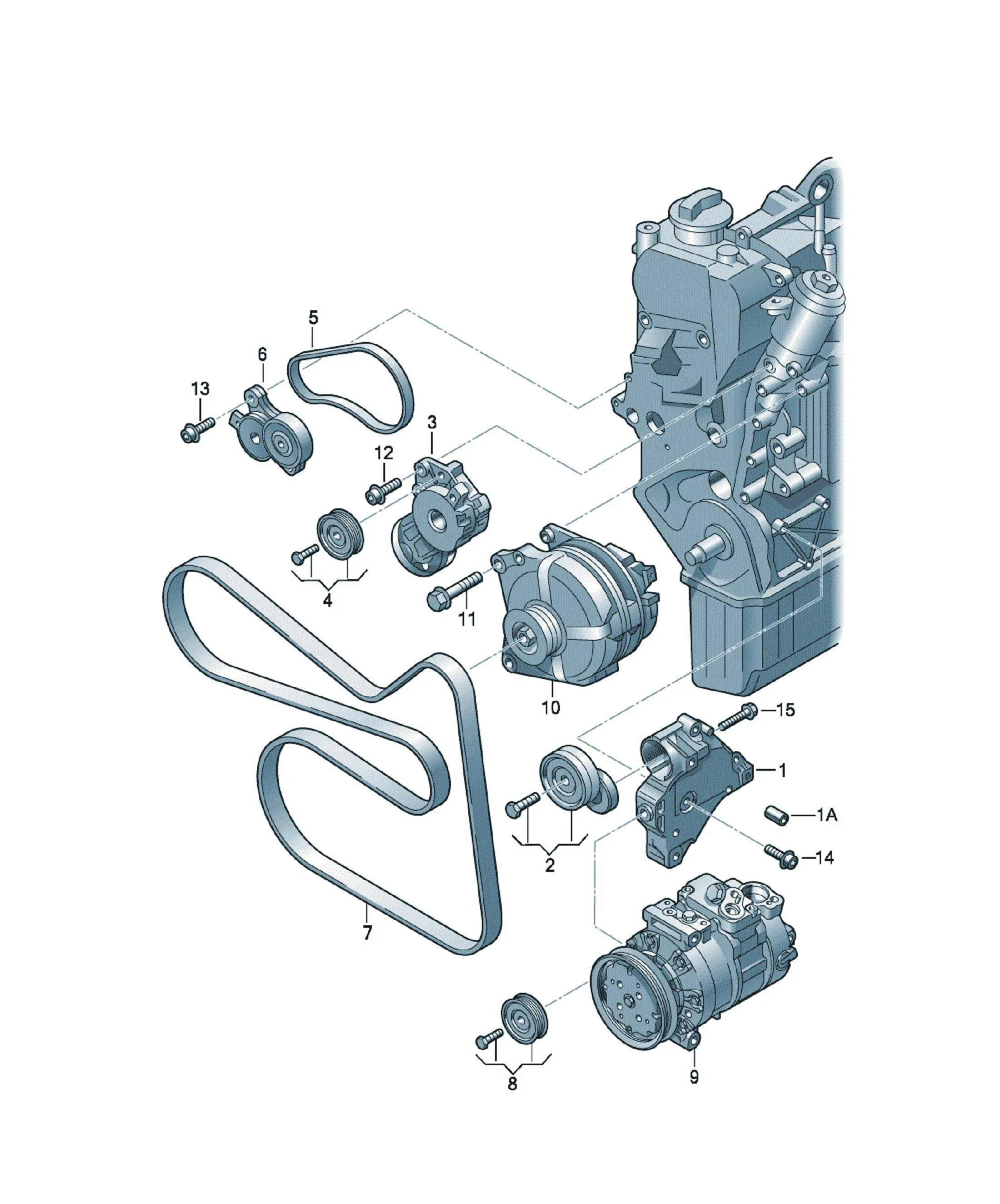

Привод генератора

[Name] [QTY]

Bracket for A/C compressor 1

[Name] [Note]

Alternator

see illustration, item: 903-000,1

[Name] [Note] [QTY]

Hex collared bolt M8X90 2

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X45 3

only for: 3C0 145 299 J

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X40 2

[Name] [Note] [QTY]

Hex collared bolt M8X50 3

[Name] [Note] [QTY]

Hex collared bolt M10X65 1

to be used for item: 2

[Name] [Note] [QTY]

Centre sleeve 11,15X6,5 2

[Name] [Note] [QTY]

tensioner 1

For A/C compressor

to be used for item: 1

use if required: N 106 237 01 1

Accompanying details: N 10623701

Replacements: 03C145299AE

[Name] [Note] [QTY]

tensioner 1

to be used for item: 7

[Name]

Not for this model

[Name] [Note] [QTY]

Poly-V-belt 17,65X492MM 1

For vehicles with air supply unit

[Name] [QTY]

Belt tensioner damper 1

Compressor

[Name] [Note] [QTY]

Poly-V-belt 21,18X1698MM 1

for vehicles with air condit.

[Name] [Note] [QTY]

Poly-V-belt 21,18X1596MM 1

[Name] [Note] [QTY]

idler pulley with bolt 81MM 1

[Name]

Not for this model

[Name] [Note]

A/C compressor

see illustration, item: 260-010,1
