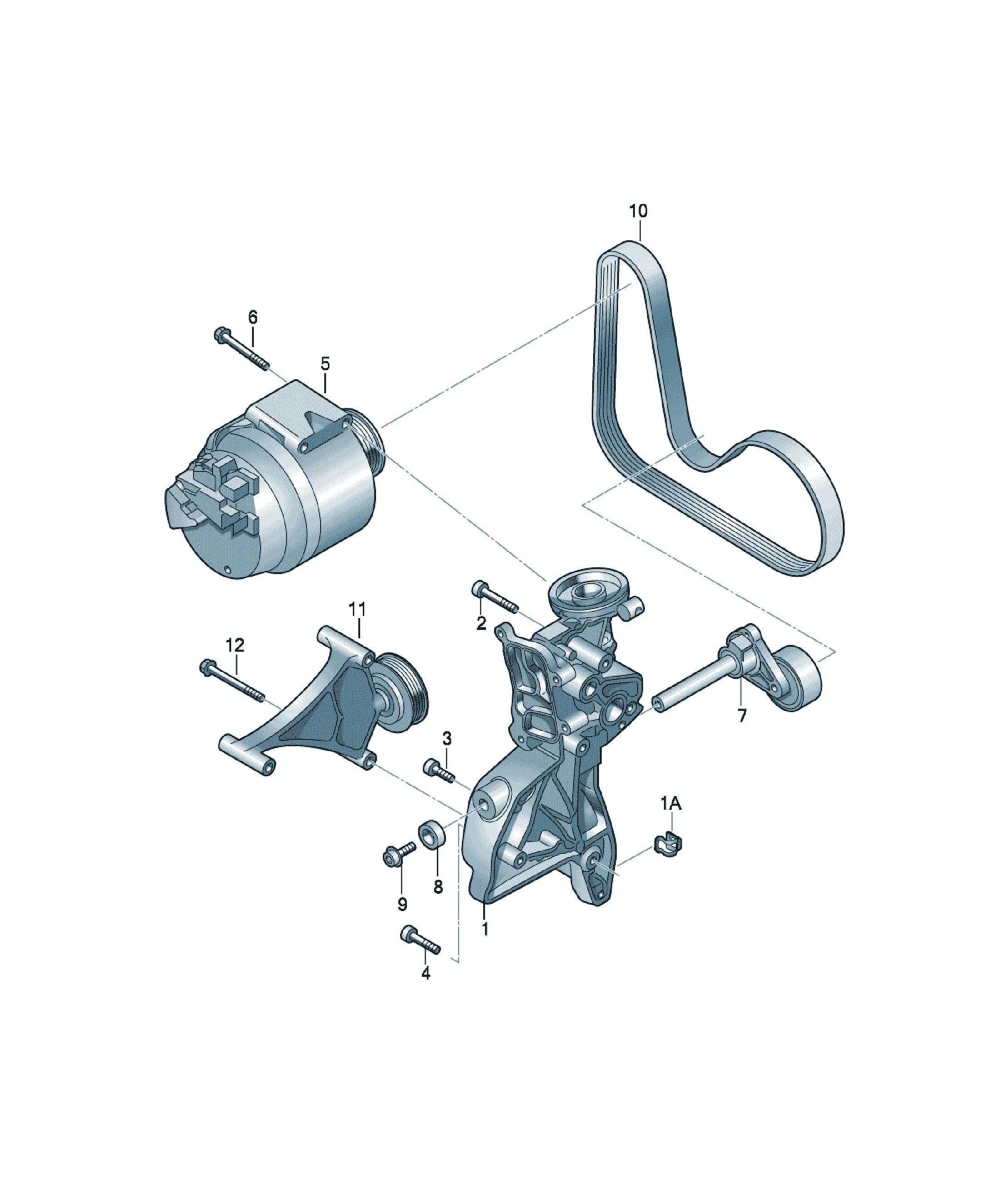

Привод генератора и компрессора

[Name] [Note] [QTY]

sealing plug M10X1 X

[Name] [Note] [QTY]

seal ring 10X13,5 X

[Name] [Note] [QTY]

bracket for alternator and refrigerant compressor 1

also use: N 029 702 2 1

N 013 811 5 1

Accompanying details: N 0297022; N 0138115

[Name] [Note] [QTY]

Poly-V-belt 21,36X1117MM 1

[Name] [Model info] [QTY]

Holder with idler pulley PR:9AA 1

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M8X100X41 PR:9AA 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X65 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X45 1

[Name] [Note]

Alternator

see illustration, item: 903-000,1

[Name] [Note] [QTY]

Hex collared bolt M8X90 4

[Name] [QTY]

Rep. set for clamping element 1

repair set

Tensioning roller 1

Cover cap 1

Hexagon bolt M10X27 1

cotter pin 1

[Name] [Note] [QTY]

tensioner 1

contains: 06J 903 326

N 911 490 01

Replacements: 06J903133D

Potential individual parts

06J198299 Rep. set for clamping element 1

[Name] [Note] [Model info] [QTY]

Centre sleeve 11,15X6,5 PR:9AA 2

to be used for item: 11

[Name] [QTY]

guide ring 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X10 1
