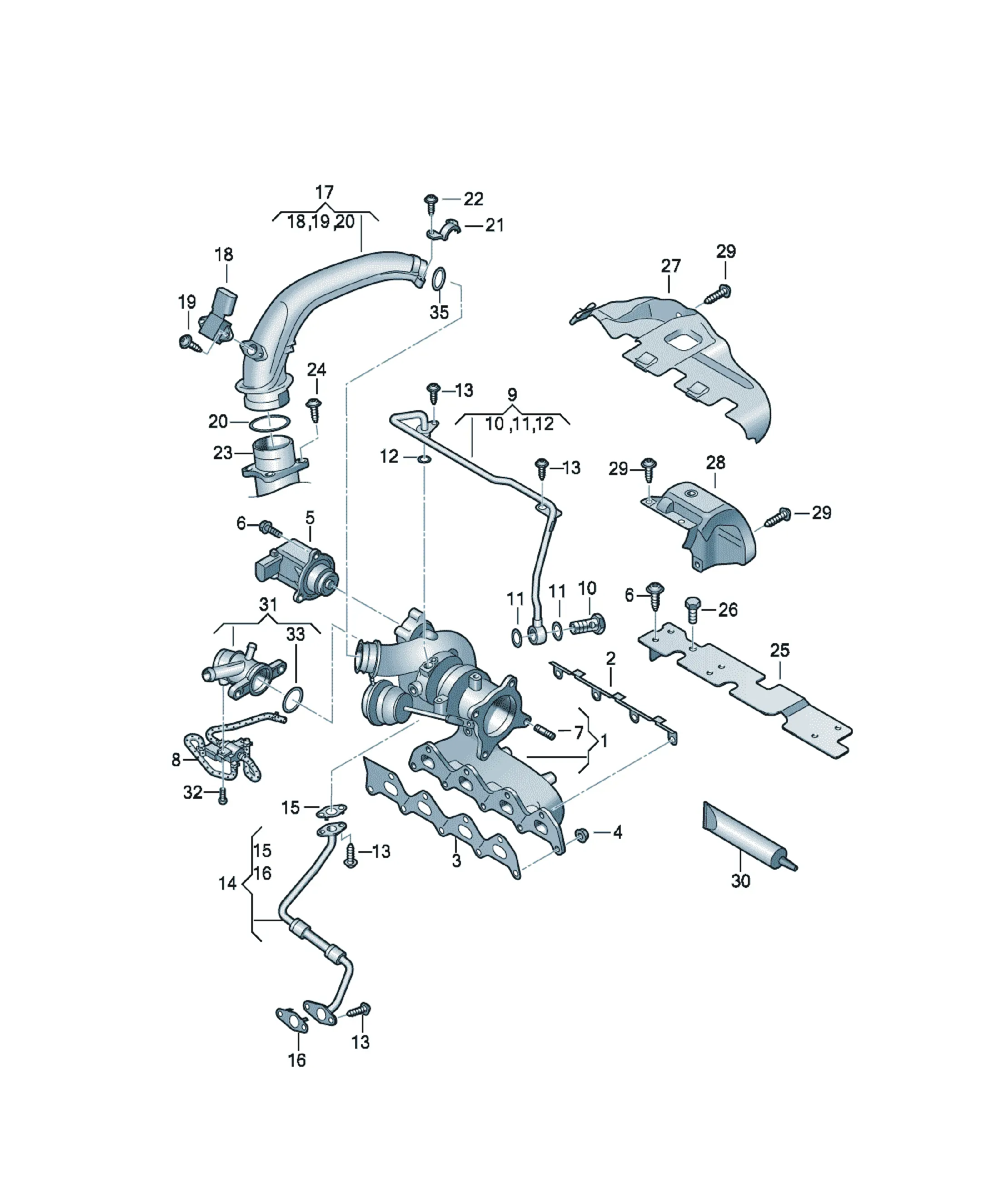

Выпускной коллектор с турбокомпрессором

[Name] [Note] [QTY]

Repair set for exhaust gas turbocharger 1

observe technical service handbook:

2020616

repair set

Stud 4

threaded insert 5

Turbine housing 1

lever 1

bush 1

cotter pin 2

Protective cap 1

Clamp 1

Retaining washer 2

Bag (plastic) 1

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger MHI 1

Exchange program parts: 03C145702LX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger MHI 1

Replacements: 03C145702L

Old part

03C145701J Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701N Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701R Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702A Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702C Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702L Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

Banjo bolt M12 1

Replacements: N 0210719

[Name] [Note] [QTY]

seal ring 12X17 2

[Name] [Note] [QTY]

O-ring 10X2 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 6

[Name] [Note] [QTY]

oil pipe return 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

pressure pipe 1

[Name] [Note] [QTY]

Pressure sensor 1

Flat contact housing 1J0 973 704

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [Note] [QTY]

Retaining plate upper 1

D >> - 31.10.2010*

[Name] [Note] [QTY]

Bracket upper 1

D - 01.11.2010>>*

[Name] [Note] [QTY]

Bracket lower 1

[Name] [Note] [QTY]

seal ring 65X4 1

[Name] [QTY]

Retaining bar 1

[Name] [Note] [QTY]

oval head panel screw 6X22 2

[Name] [QTY]

Adapter 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt 6X65X30 4

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

[Name] [QTY]

warm air deflector plate 1

[Name] [QTY]

warm air deflector plate 1

[Name] [QTY]

Hexagon socket flat head bolt 7

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

hot-bolt-paste 170G X

(N 052 112 00)

[Name] [QTY]

intake manifold 1

[Name] [Note] [QTY]

Seal 44X4 1

[Name] [Note] [QTY]

O-ring 35X4 1

[Name] [Note] [QTY]

shouldered nut with multipoint socket head inner 9

also use: WHT 004 984 9

Accompanying details: WHT004984

[Name] [QTY]

cut-off valve 1

mating connector

3B0973722A Flat contact housing 2 pin 2

Possible single wire: brown 1,0 X

1J0973722A Flat contact housing with contact locking mechanism 2 pin 2

black 1,0 X

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X16 3

to be used for item: 5

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 5

to be used for item: 25

[Name] [Note] [QTY]

Threaded pin M8X27,5 4

[Name] [QTY]

Solenoid valve with negative pressure hose 1

[Name] [Note] [QTY]

oil pipe feed 1
