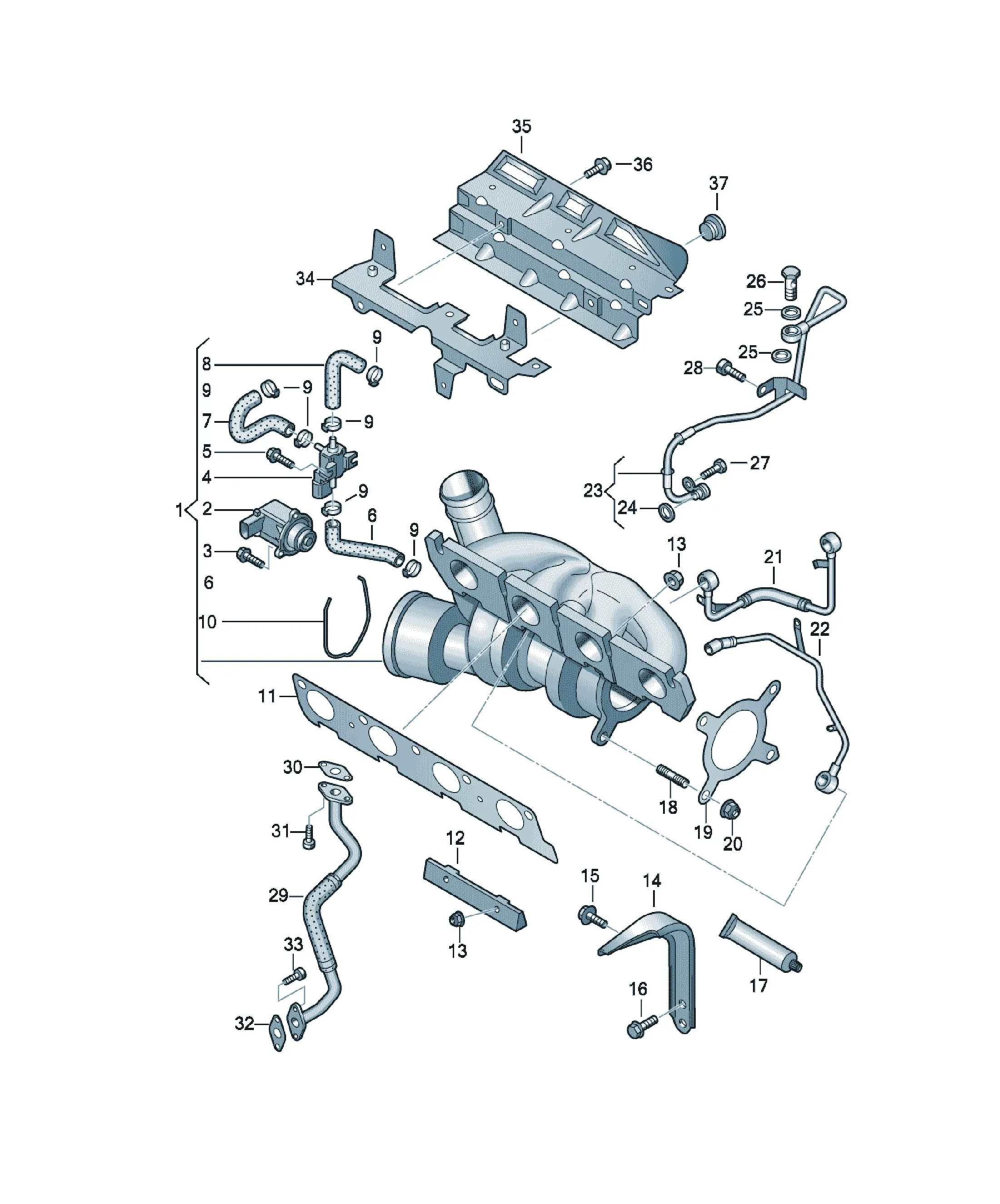

Выпускной коллектор с турбокомпрессором

[Name] [Note] [QTY]

Spring clip 1

Note technical product information:

2021062

[Name] [QTY]

Clamp 1

[Name] [Note] [QTY]

O-ring 41X2 1

Included in position: 2

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

also use: 06J 145 220 A

D >> - 30.07.2011

Accompanying details: 06J145220A

Replacements: 06J145722B

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

also use: 06J 145 220 A

D >> - 30.07.2011

Accompanying details: 06J145220A

Replacements: 06J145722BX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

also use: 06J 145 220 A

D - 31.07.2011>>

Accompanying details: 06J145220A

Exchange program parts: 06J145722BX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

also use: 06J 145 220 A

D - 31.07.2011>>

Accompanying details: 06J145220A

Replacements: 06J145722B

[Name] [Note] [QTY]

O-ring 74,8X1,65 1

Damper

[Name] [Note] [QTY]

Retaining clip SCC48 X

connection piece

[Name] [QTY]

Retaining clip 1

connection piece

[Name] [QTY]

Seal 1

[Name] [QTY]

angled bracket 2

[Name] [Note] [QTY]

hexagon nut, self-locking M8 9

[Name] [QTY]

Support 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X35 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X16 2

[Name] [Note] [QTY]

hot-bolt-paste 170G X

[Name] [Note] [QTY]

Threaded pin M10X28 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

cut-off valve 1

only to be used for: 06J 145 701 N

06J 145 701 T

06J 145 702 K

06J 145 702 KX

mating connector

3B0973722A Flat contact housing 2 pin X

brown

1J0973722A Flat contact housing with contact locking mechanism 2 pin X

black

[Name] [Note] [QTY]

cut-off valve 1

only to be used for: 06J 145 701 T

06J 145 701 N

06J 145 702 K

06J 145 702 KX

mating connector

3B0973722A Flat contact housing 2 pin X

brown

1J0973722A Flat contact housing with contact locking mechanism 2 pin X

black

[Name] [Note] [QTY]

cut-off valve 1

only to be used for: 06J 145 713 K

06J 145 713 KX

06J 145 713 T

06J 145 713 TX

06J 145 722 B

06J 145 722 BX

D >> - 30.07.2011

Replacements: 06H145710J

mating connector

3B0973722A Flat contact housing 2 pin 2

Possible single wire: brown 1,0 X

1J0973722A Flat contact housing with contact locking mechanism 2 pin 2

black 1,0 X

[Name] [Note] [QTY]

cut-off valve 1

only to be used for: 06J 145 713 K

06J 145 713 KX

06J 145 713 T

06J 145 713 TX

06J 145 722 B

06J 145 722 BX

D - 31.07.2011>>

Items supplied

O-ring 41X2 1

mating connector

3B0973722A Flat contact housing 2 pin 2

Possible single wire: brown 1,0 X

1J0973722A Flat contact housing with contact locking mechanism 2 pin 2

black 1,0 X

[Name] [Note] [QTY]

Hexagon collar nut self-locking M10 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M10 4

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) feed 1

see illustration: 121-029

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) feed 1

see illustration, item: 121-029,15

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) return 1

see illustration: 121-029

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) return 1

see illustration, item: 121-029,18

[Name] [Note] [QTY]

oil pipe feed 1

[Name] [Note] [QTY]

O-ring 9,5X2,5 1

[Name] [Note] [QTY]

seal ring 12X18 2

[Name] [Note] [QTY]

Banjo bolt 8X4 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X15 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X15 1

[Name] [Note] [QTY]

oil pipe return 1

[Name] [Note] [QTY]

oil pipe return

F 5N-8-060 001>>* 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X16 3

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X15 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X15 1

[Name] [QTY]

Retainer for cover 1

[Name] [QTY]

Retainer for cover 1

Replacements: 06J145383E; 06H129597K

[Name] [QTY]

Cover plate 1

[Name] [QTY]

Cover plate 1

Replacements: 06H129597K; 06J145383E

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X16 2

[Name] [Note] [QTY]

sealing plug M12X1,50 1

[Name] [QTY]

Solenoid valve 1

mating connector

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Hexagon socket head bolt M5X12 1

[Name] [QTY]

Hose 1

[Name] [QTY]

Hose 1

[Name] [QTY]

Hose 1

[Name] [Note] [QTY]

Spring band clamp 11,5X8,4 6
