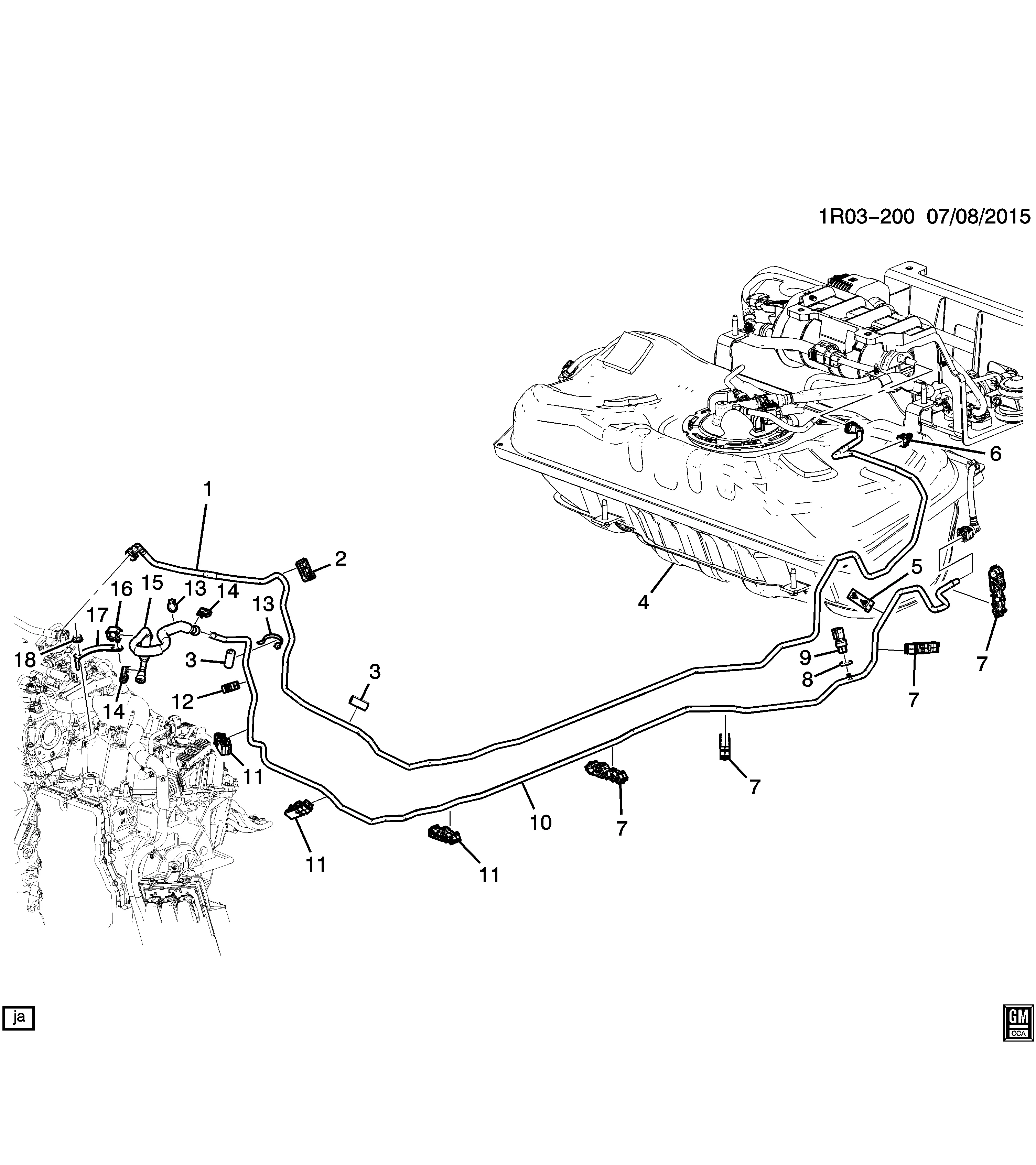

- CLIP,BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE 11547691
- CLIP,EVAP EMIS PIPE(HOLDS 2 LINES,W/O PUSH-IN RETAINER)(4.128) 42439449
- НАГРЕВ И ОХЛАЖДЕНИЕ - БЛОК УПРАВЛЕНИЯ
- PIPE,FUEL FEED FRT(INCLS 13,16,17)(ACDelco #23375761) 23375761
- SENSOR,FUEL PRESS(PART OF 10)(3.682)(ACDelco #13516496) 13516496
- НАГРЕВ И ОХЛАЖДЕНИЕ - БЛОК УПРАВЛЕНИЯ
- NUT,HFH,M6X1,5.85THK,14.2 O.D.,10,ZOR(L/GATE SI APLQ) 03530297
- НАГРЕВ И ОХЛАЖДЕНИЕ - БЛОК УПРАВЛЕНИЯ
- CLIP,BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE(BLACK/GRAY)(87X27X20)(HOLDS (2)9.52,& (2)5.1 DIA PIPES)(CLIPS TO 6MM THREADED STUD) 11611162
- CLIP,FUEL FEED FRT HOSE(PART OF 15) 11547092
- TANK,FUEL(SEE GROUP 03"FUEL TANK" FOR DETAILED ILLUSTRATED VIEW) 84258180
- PIPE,FUEL FEED(INCLS 3,8,9,13)(CODE AAG8) 23409070
- CLIP,FUEL FEED PIPE(13 X 19 X 36MM)(ONE TUBE) 22695614
- SEAL,FUEL PRESS SEN (O RING)(PART OF 10)(ACDelco #15778699) 15778699
- STRAP, TIE, 200MM NOMINAL LENGTH(PART OF 10,15)(ACDelco #11509086) 11509086
- CLIP,EVAP EMIS PIPE(PART OF 1)(HOLDS ONE 9.5MM, 3/8" TUBE, PLASTIC TREE FOR 9.5 HOLE) 11547871
- CLIP,EVAP EMIS PIPE 23380182
- PIPE,EVAP EMIS(INCLS 3,6)(INCLS PROTECTOR) 84266671
