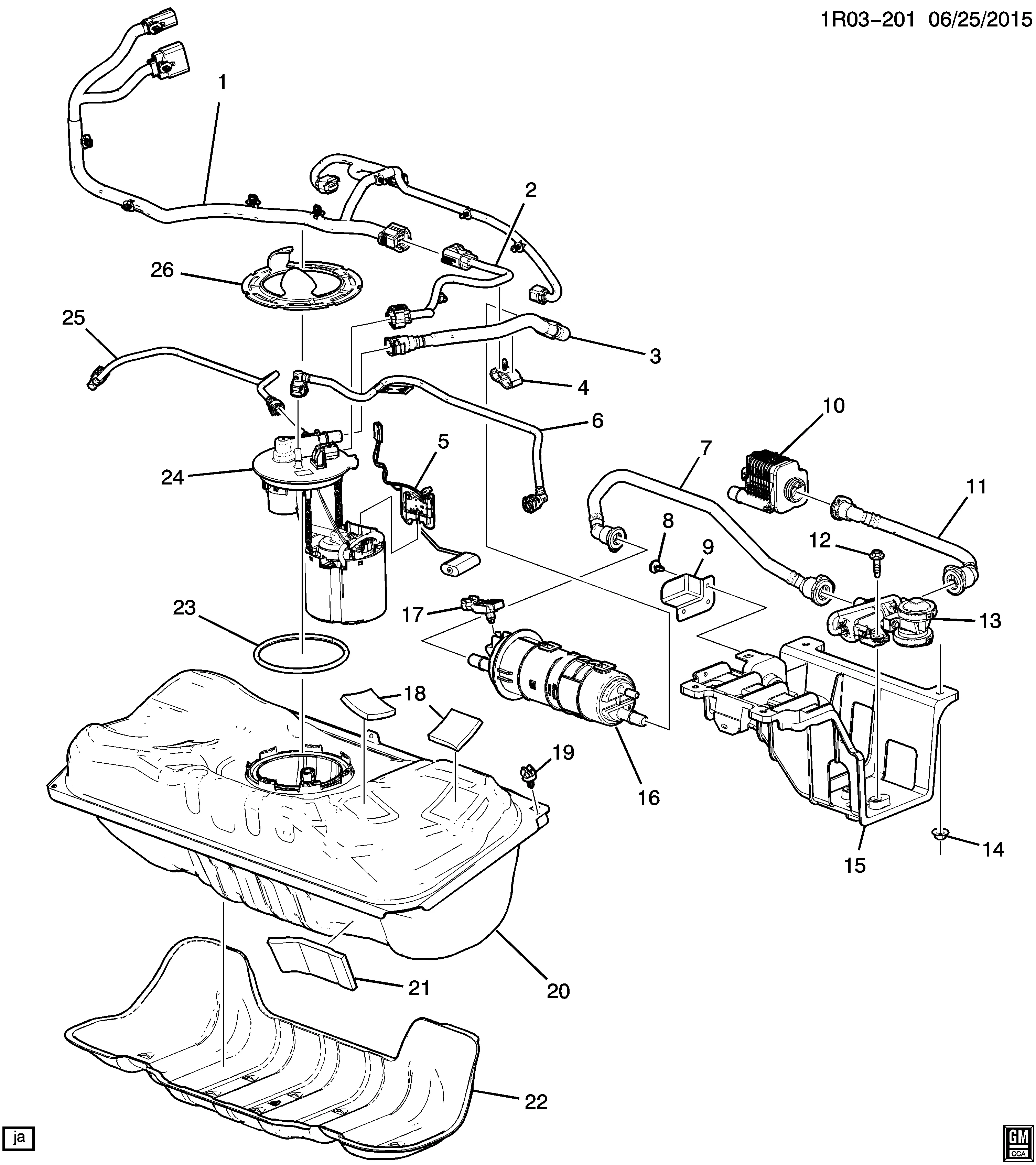

- RETAINER,FUEL SDR(PART OF 20) 23142155
- ФИКСАТОР ИЗОЛЯТОРА ПЕРЕДНЕГО КРЫЛА (НАЖИМНОЙ)(ЧЕРНЫЙ)(M6.5X17.5 ММ) 11589289
- TANK,FUEL(SEE GROUP 03"FUEL TANK" FOR DETAILED ILLUSTRATED VIEW) 84258180
- INSULATOR,F/TNK(PART OF 20) 23142158
- INSULATOR,F/TNK(PART OF 20) 23281220
- HARNESS,F/TNK F/PMP MDL WRG 23142154
- CLIP,EVAP EMIS TK INL PIPE 23142160
- HARNESS,EVAP EMIS CNSTR VAC LEAK PMP 23147062
- SENSOR KIT,FUEL LVL 23308794
- MODULE KIT,F/TNK F/PMP (W/O FUEL LVL SEN)(INCLS 23) 23375543
- SCREW,HEX HD W/CON SPR WA,M6X1X30,29 THD,17 O.D.,9.8,7114M,ZE(FUEL VPR CONTAINMENT VLV) 11516589
- CLIP,F/TNK VENT HOSE(PART OF 20) 23243014
- SENSOR,F/TNK PRESS(PART OF 16) 13574913
- УПЛОТНЕНИЕ, ТОПЛ БАК ТОПЛ/НАС (КОЛЬЦО)(ДЕТАЛЬ ИЗ 22)(147MM)(ПОЛОЖЕНИЕ КОМПЛЕКТА МОДУЛЕЙ)(*KIT2)(3.112) 22682111
- HOSE,EVAP EMIS CNSTR 23147065
- HOSE,F/PMP FUEL FEED 23142151
- BRACKET,EVAP EMIS CNSTR 23396498
- HOSE,EVAP EMIS 23314920
- NUT,HEX W/CON WA,M6X1,5.7 THK,16 OD,9,GMW3200(WSWA SOLV CNTNR) 11609411
- CANISTER,EVAP EMIS (W/O VENT VLV SOL)(INCLS 17) 23304687
- HOSE,EVAP EMIS CNSTR C/VLV VAC 23147066
- SHIELD,F/TNK 23142156
- HOSE,EVAP EMIS RR 23142153
- PUMP,EVAP EMIS SYS VAC LEAK 22865478
- VALVE,FUEL VPR CONTAINMENT(VENT VLV)(3.130) 25949410
- SHIELD,EVAP EMIS SYS VAC LEAK PUMP 23431657
- CLIP,F/TNK VENT HOSE(PART OF 20) 84258179
- INSULATOR,F/TNK(PART OF 20) 23142158
