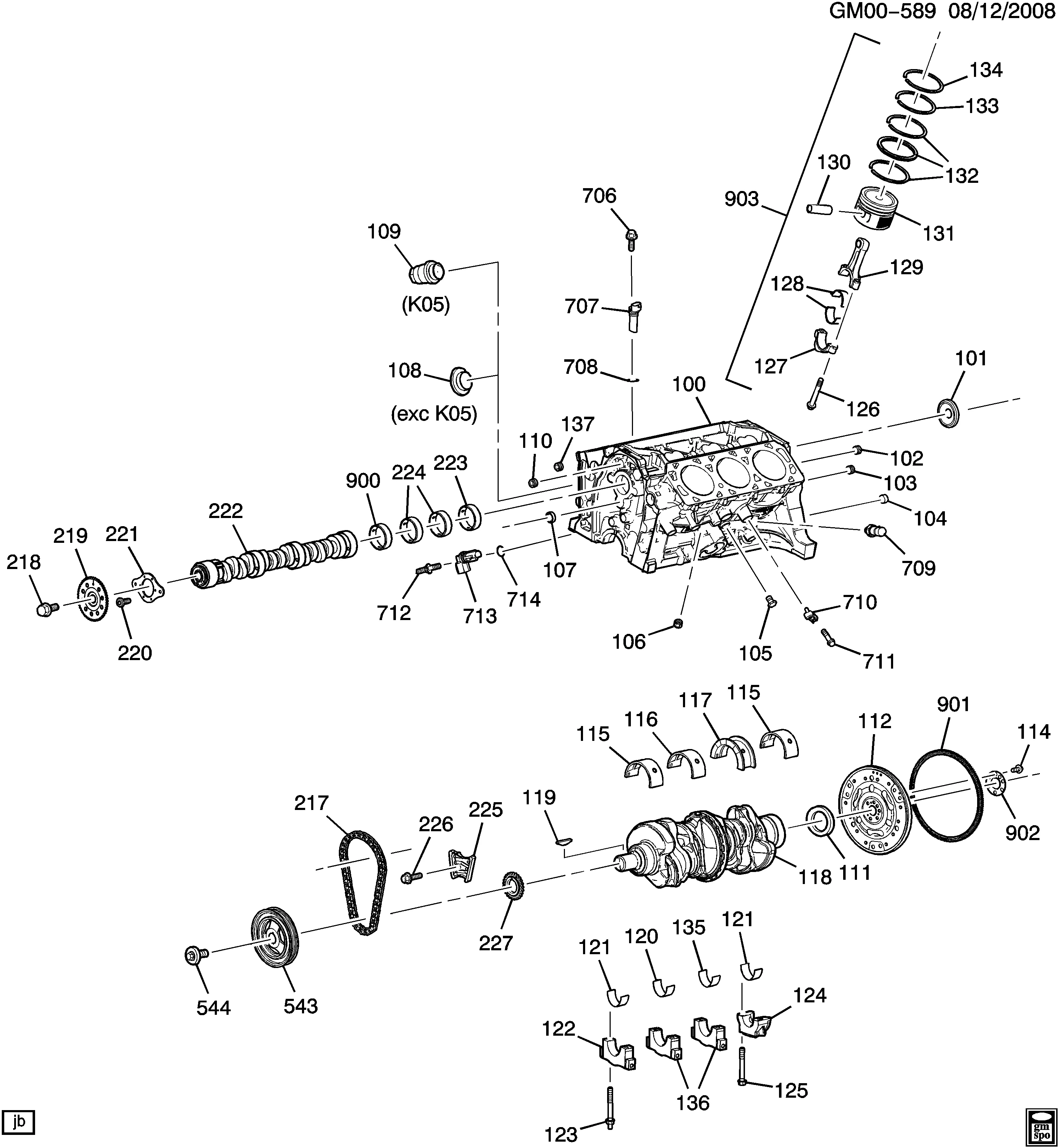

- BALANCER,CR/SHF(ACDelco #12621646) 12621646
- BEARING KIT,CONN ROD(STD) 12480255
- BEARING KIT,CR/SHF(#1, # 4 STD)(INCLS 121) 12480252
- BEARING KIT,CR/SHF(#2 STD)(INCLS 120)(CONTAINS 2 NON-FLANGED BRGS) 12480253
- BEARING KIT,CR/SHF(#3 STD)(INCLS 135) 89060551
- BEARING,CM/SHF(#1) 89018071
- BEARING,CM/SHF(#2 & #3) 89018072
- BEARING,CM/SHF(#4) 89018073
- BOLT,CONN ROD(PART OF 129,903)(M9X1X44) 11570825
- BOLT,CR/SHF BALR(M12X1.5X45)(HFH W/CON SPR WA,30 THD,44.5 OD,GM6047M,W/SEALANT) 11570965
- BOLT,CR/SHF BRG CAP(USE 12346004 THD SEALER)(M11X1.5X93) 10131052
- BOLT,FLYWHL(M10X1X18.5) 12338144
- BOLT,HFH,M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359(CM/SHF POSN SEN) 11588711
- BOLT,W/CON SPR WA,M8X1.25X20,15.58THD,18 O.D.,9.8,ZO(TMG CHAIN DPNR)(1.270)(ACDelco #15614709) 15614709
- CAMSHAFT,ENG 12596567
- CHAIN,CM/SHF TMG 24506090
- CRANKSHAFT, 12598044
- DAMPENER,TMG CHAIN 24507720
- FLYWHEEL,ENG(INCLS 901) 12575076
- GEAR,STRTR DRVN RING(PART OF 112)("11 INCH I/D") 00359115
- KEY,CR/SHF BALR(4.8MMX37.5MM) 12561513
- PIN,TRANS LOC(19.5 MM X 18.5 MM)(TO CYL BLK) 12338076
- PISTON,(W/CONN ROD)(INCLS 126,127,129-134) 12575630
- PLATE,CM/SHF THR 12579591
- PLUG, DRY SEAL(ENG BLK OIL GAL) 14090911
- PLUG,1/4-18X0.56,STEEL,PC(ENG BLK COOL DRN HOLE)(ACDelco #14084945) 14084945
- PLUG,CM/SHF RR BRG HOLE 12580831
- PLUG,CUP 5/8, CORROSION RESISTANT STL(ENG BLK OIL GAL)(1.531) 09427693
- PLUG,HEX, M28X1.25X13, 10.9 STL,GMW3044, INT DRIVER W/THD SEAL(ENG BLK COOL HOLE) 11611351
- PLUG,W/SEALER,1/4-18 NPTF,SQ SOCKET,PL(ENG BLK OIL GAL) 14081701
- RETAINER,FLYWHL 00477288
- RING KIT,PSTN(PART OF 903)(INCLS 133,134)(0.5MM O.S.) 12481323
- RING KIT,PSTN(PART OF 903)(INCLS 133,134)(STD) 12481322
- ROD,CONN(PART OF 903)(INCLS 126,127) 24508535
- SCREW,PAN HD,M6X1X13,12 THD,9.8,PE,TORX(CM/SHF THR BRG) 11515151
- SCREW,PAN HD,M6X1X25,20.9 THD, 11 OD,10.9,GMW3359,6 LOBED T-30 MAT-POINT(CM/SHF SPKT) 11570024
- SEAL,CR/SHF RR OIL 12592195
- SENSOR,CM/SHF POSN(INCLS 708)(MATING CONN W/LEADS USE 13580871)(ACDelco #213-3524) 12598209
- SENSOR,CR/SHF POSN(INCLS 714)(MATING CONN W/LEADS USE 15306388)(ACDelco #213-3523) 12598208
- SENSOR,KNOCK(INCLS 711)(MATING CONN W/LEADS USE 13580877)(ACDelco #213-1576) 12623730
- SPROCKET,CM/SHF 12598184
- SPROCKET,CR/SHF(25 TEETH) 12568125
- STUD,CR/SHF BRG CAP(M11X1.5X93-M8X1.25X13 STUD ON TOP) 10162001
- STUD,HFH,M6X1X16,M6X1X14,34.7 TL,13 O.D.,10.9,GMW3359(CR/SHF POSN SEN) 11518950
- SWITCH,ENG OIL PRESS IND(ACDelco #D1834A) 12635954
