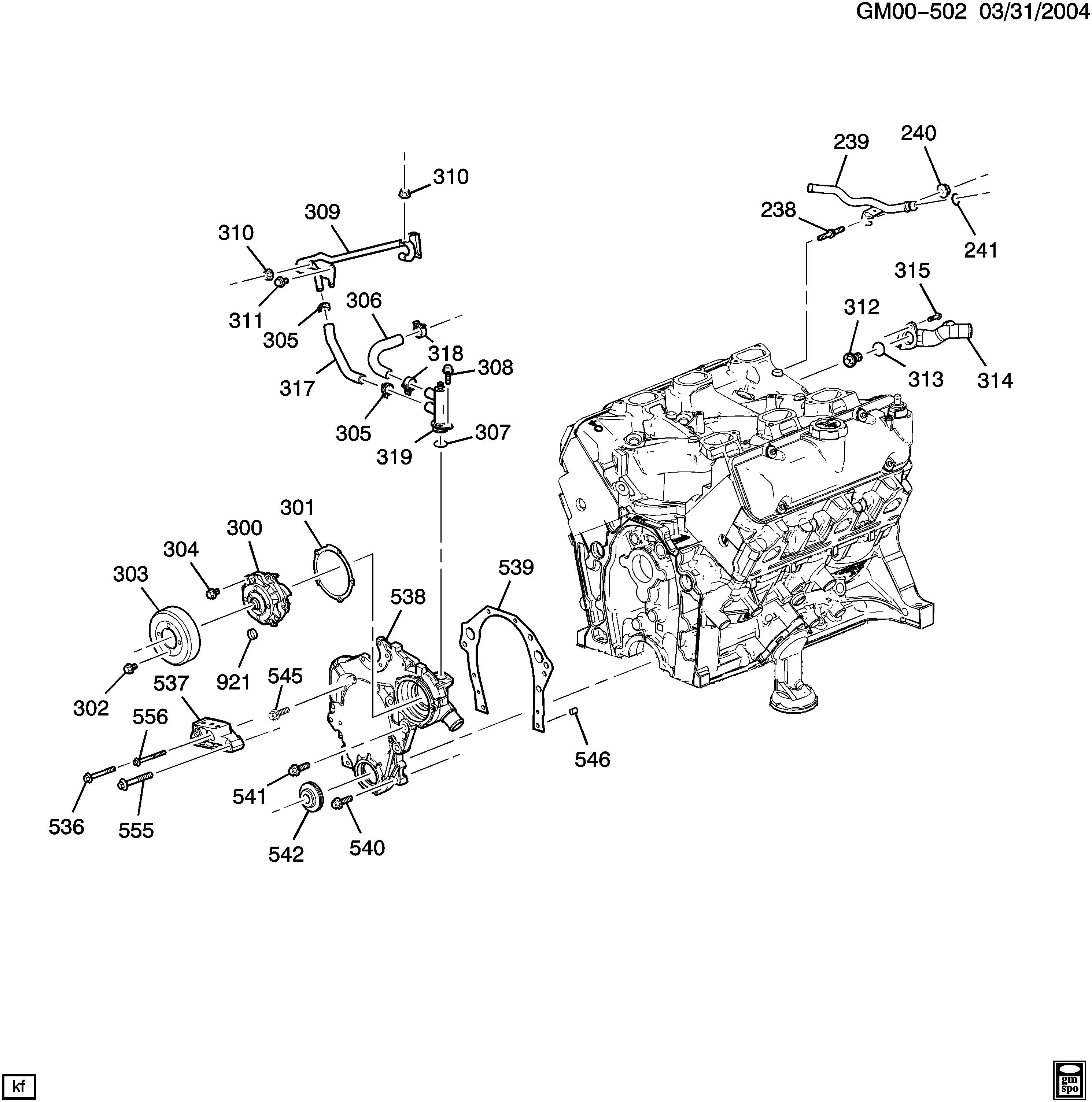

- ADAPTER,THERM BYPASS HOSE(INCLS 307) 12582446
- BOLT, HFH M8X1.25X75,33.2 THD,18 OD,9.8,PO(ENG MT SUPT)(ACDelco #11508301) 11508301
- BOLT, M8X1.25X25 9.8(WAT OTLT) 11508476
- BOLT,ENG FRT CVR(M10X1.5X39, 6H THD)(16OD, 16 THRU HOLE)(6.525) 11609752
- BOLT,ENG FRT CVR(M12X1.75X40) 10238860
- BOLT,ENG FRT CVR(M8X1.25X35)(8.900) 11609591
- BOLT,ENG MT SUPT(M10X1.5X70) 24507994
- BOLT,ENG MT SUPT(M12X1.75X75)(8.900) 11609232
- BOLT,HFH, M8X1.25X12, 10.1 THD, 17 O.D., 9.8, GMW3359(W/PMP PUL) 11588386
- BOLT,HFH,M6X1X13,6 THD,14.2 OD,8.8,GMW3359,MAT POINT(MAP SEN) 11519964
- BOLT,HFH,M6X1X20,17.9 THD,14.2 O.D.,9.8,TIN ZN(THERM BYPASS HOSE ADAP)(ACDelco #11517518) 11517518
- BOLT,W/PMP(M6X1X16)(HEX HEAD)(1.050) 14078823
- BRACKET,ENG MT 22692548
- CLAMP,WORM TYPE(11/16" TO 1 5/16")(THERM BYPASS PIPE)(ACDelco #1470030) 01470030
- COVER,ENG FRT 12599771
- GASKET,ENG FRT CVR(ACDelco #10189276) 10189276
- GASKET,W/PMP(PART OF 300)(ACDelco #251-2018) 10182374
- HOSE,HTR OTLT 12575636
- HOSE,THERM BYPASS(ACDelco #10182356) 10182356
- NUT,HFH,M6X1,5.85THK,14.2 O.D.,10,ZOR(ACCEL CONT CBL BRKT) 03530297
- NUT,HFH,M8X1.25,17.9 OD,738 THK,13MM HEX,10, ZF(IGN COIL)(8.915)(ACDelco #11514596) 11514596
- OUTLET,WAT 12590925
- PIN,M6X16,STL,PLAIN(ENG FRT CVR LOC) 11503504
- PIPE,HTR INL(INCLS 241) 12603191
- PIPE,HTR OTLT 12598237
- PLUG,W/PMP(PLUG-EXPANSION(CUP) 25.68 OD, 10 THK)(0.293) 10044811
- PULLEY,W/PMP(UA)(PART IS PULLEY ONLY)(ACDelco #14091833) 14091833
- PUMP KIT,WAT(INCLS 301)(ACDelco #251-700) 19179031
- SEAL,CR/SHF FRT OIL(61.57/61.37 MM O.D.)(ACDelco #296-21) 14090906
- SEAL,ENG COOL THERM(W/LIP, 46.80MM OD)(PART OF 312)(ACDelco #10226107) 10226107
- SEAL,HTR INL PIPE ADAP (O RING)(PART OF 239)(ACDelco #12582441) 12582441
- SEAL,THERM BYPASS PIPE ADAP (O RING)(PART OF 319)(ACDelco #12582448) 12582448
- STUD,HTR INL PIPE(M10X1.5X16MM) 24507801
- THERMOSTAT,ENG COOL(195 DEG, W/SEAL)(INCLS 313)(ACDelco #131-124) 24507563
