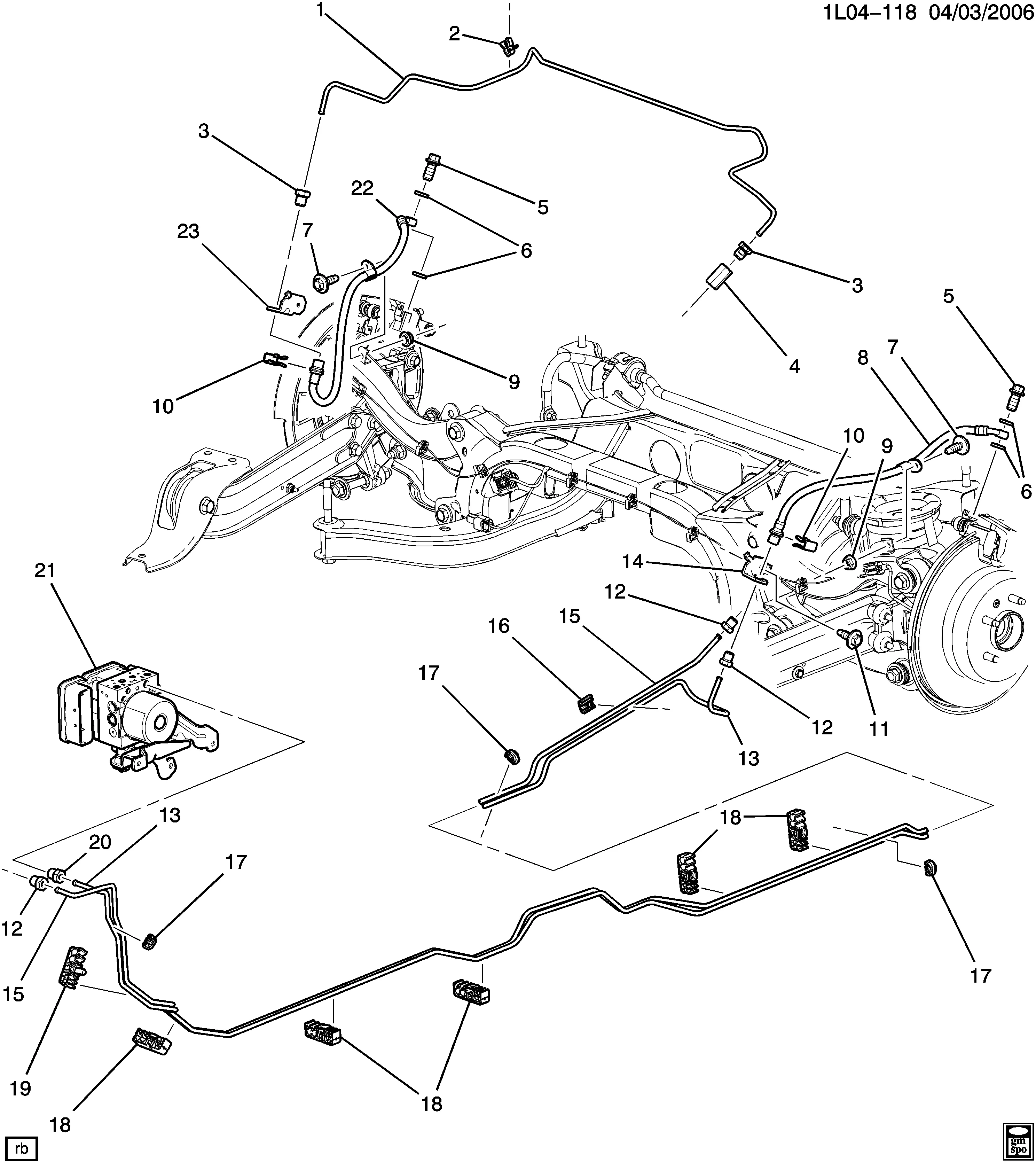

- BOLT,HEX W/FLAT WASHER,M6X1X25,15 THD,17 OD,6202M STL,GMW3200,TAPTITE(FRT BRK HOSE BRKT) 11609989
- BOLT,HFH,M8X1.25X22,19 THD,18 OD,10.9,GMW3359(PARK BRK RR CBL RET)(ACDelco #11570082) 11570082
- BOLT,RR BRK HOSE(M10X1.5X23,13THD)(BANJO) 11569669
- BRACKET,FRT BRK HOSE 25964079
- BRACKET,RR BRK HOSE 15914588
- CLIP,RR BRK C/OVR PIPE 15786665
- HOSE,RR BRK(ACDelco #176-1788) 84068673
- HOSE,RR BRK(INCLS 10,14)(ACDelco #176-1787) 84068674
- NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M(RR BRK FRT PIPE) 11569751
- NUT,HFH,M8X1.25,8.9THK,17.6 O.D.,10 STL,GMW3200, PREV TORQUE(EXH C/OVR PIPE) 11609746
- NUT,HX FLARED TUBE,M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M(RR BRK FRT PIPE) 11569750
- PIPE,BRK(3/16" X 16')(BULK TUBING)(NYLON COATING)(*KIT1)(ACDelco #88983905) 88983905
- PIPE,RR BRK C/OVR 15293514
- RETAINER,BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE(HOLDS (2)9.52 & (2)5.14 TUBES W/TREE)(3.162) 25983337
- RETAINER,BRK PIPE(21.5X10.0MM)(HOLDS (2)4.68-4.82 TUBES) 25607191
- RETAINER,BRK PIPE(HOLDS (2)4.9 LINES,RETAINS IN 6.3 DIA HOLE IN .8-2.5 THK PNL)(8.077) 10223661
- RETAINER,FRT BRK HOSE(28X25X4.7)(SPRING STEEL RETAINER) 11569742
- RETAINER,FRT BRK PIPE(SNAP IN (2) 9.52 & (2) 5.14 TUBES USED ON M5/M6 WELD STUD)(3.162) 15215148
- UNION,INVERTED FLARE TUBE M10X1X25.75, SAE12L14, GMW4700M(RR BRK C/OVR PIPE)(8.963) 11518565
- WASHER,FRT BRK HOSE(10.3X14.5X1.61)(COPPER)(ACDelco #21012386) 21012386
