Throttle valve

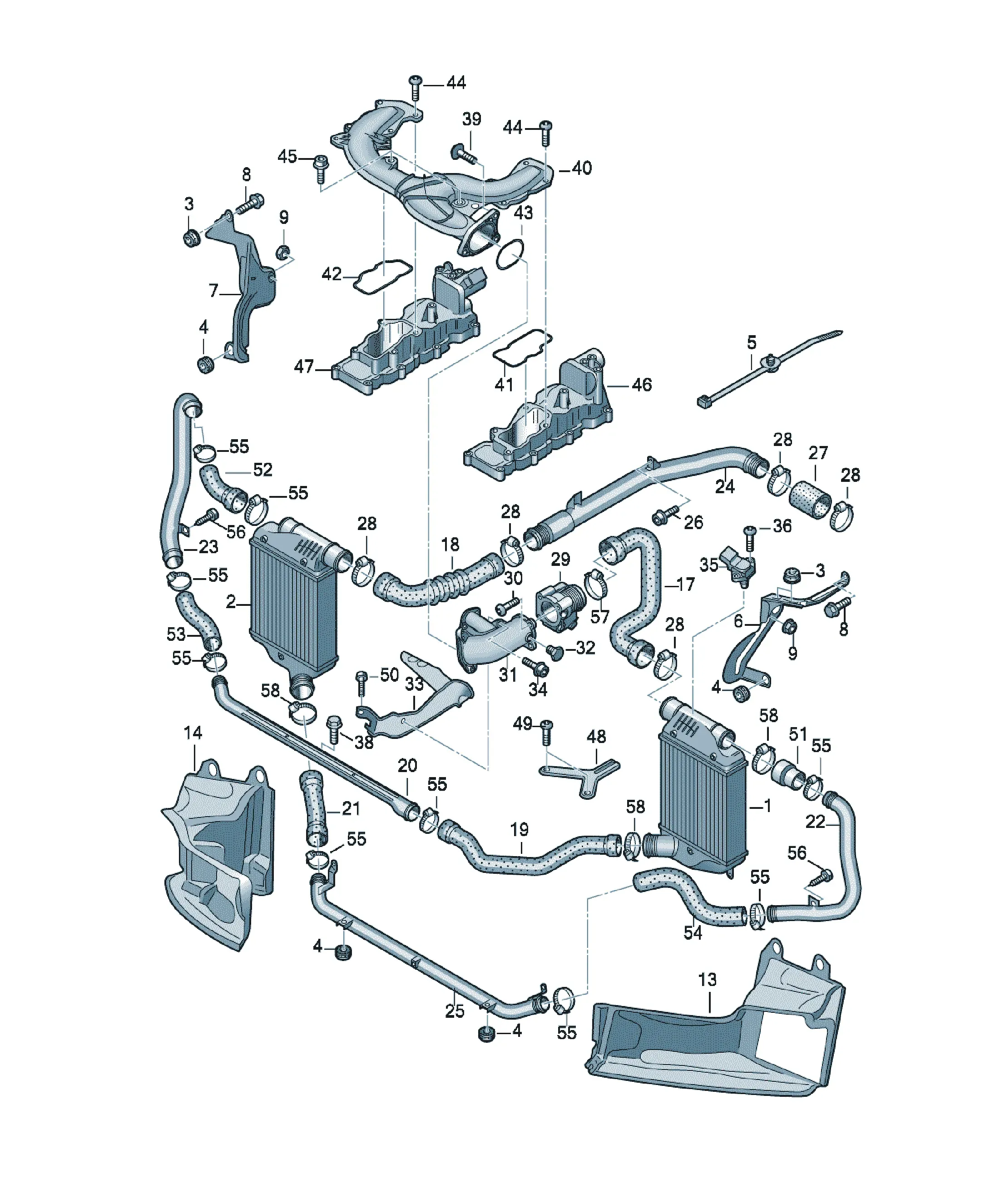

Charge air cooling system

Assembly diagrams

9 diagrams

Parts

81 parts

Уплотнительное кольцо
8E0145865 Offers

[Name] [Note] [QTY]
O-ring 63,2X3 1
Included in position: 31
Replacements: WHT002223
Уплотнительное кольцо
8E0145865 Offers

[Name] [Note] [QTY]
O-ring 63,2X3 1
Replacements: WHT002223
Seal Ring
059145865 Offers

[Name] [Note] [QTY]
O-ring 64,2X2 1
contained in: 4E0 145 950 H
Cable tie
3D0971838N Offers

[Name] [Note] [QTY]
Cable ties with bracket 4,5X200 2
For hole/material thickness: 6,5/0,3-3
Cable tie
3D0971838A Offers

[Name] [Note] [QTY]
Cable tie with holder for weld pin: 5X200 1
5
Cable tie
3D0971838A Offers

[Name] [Note] [QTY]
Cable tie with holder for weld pin: 5X200 X
5
Уплотнительное кольцо
8E0145865 Offers

[Name] [Note] [QTY]
O-ring 63,2X3 1
Included in position: 29
Replacements: WHT002223
4F0145805AF Offers

[Name] [Note] [QTY]
Charge air cooler left 1
4F0145805AF Offers

[Name] [QTY]
Charge air cooler 1
4F0145333 Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K5 1
4F0145333H Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K0,VJ1 1
4F0145333 Offers

[Name] [Model info] [QTY]
Air guide PR:2K1,2K5 1
4F0145333D Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K7 1
4F0145334 Offers

[Name] [Model info] [QTY]
Air guide PR:2K1,2K5 1
4F0145334J Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K0,VJ1 1
4F0145334 Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K5 1
4F0145334G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K7 1
4F0145737K Offers

[Name] [Note] [QTY]
Pressure hose left upper 1
contains additional positions: 28 U. 57
4F0145737K Offers

[Name] [Note] [QTY]
Pressure hose left lower 1
contains additional positions: 28 U. 57
4F0145738F Offers

[Name] [Note] [QTY]
Pressure hose right upper 1
4F0145943N Offers

[Name] [Note] [Model info] [QTY]
Pressure hose left lower PR:2K7 1
4F0145943M Offers

[Name] [Note] [Model info] [QTY]
Pressure hose left lower PR:2K1,2K5 1
4F0145806AA Offers

[Name] [QTY]
Charge air cooler 1
4F0145806AA Offers

[Name] [Note] [QTY]
Charge air cooler right 1
4F0145731E Offers

[Name] [QTY]
pressure pipe 1
4F0145731E Offers

[Name] [QTY]
pressure pipe
F >> 4F-7-180 000* 1
4F0145944H Offers

[Name] [Note] [QTY]
Pressure hose right lower 1
4F0145683F Offers

[Name] [Note] [QTY]
Pressure hose left 1
4F0145686C Offers

[Name] [Note] [QTY]
Pressure hose right 1
059145731AK Offers

[Name] [QTY]
pressure pipe 1
4F0145732E Offers

[Name] [QTY]
pressure pipe
D - 21.05.2007>> 1
4F0145732B Offers

[Name] [QTY]
pressure pipe
D >> - 21.05.2007 1
4F0145732B Offers

[Name] [QTY]
pressure pipe 1
N0147614 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M6X12 2
Replacements: N 0147618
N0147618 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M6X12 2
059145834D Offers

[Name] [QTY]
Pressure hose 1
N10518901 Offers

[Name] [Note] [QTY]
Hose clamp 50-70X12 5
059145950R Offers

[Name] [Note] [QTY]
Throttle valve
F 4F-6-132 001>> 5 pin 1
Replacements: 059145950CC
mating connector
1J0973705 Flat contact housing with contact locking mechanism 5 pin 1
4E0145950H Offers

[Name] [Note] [QTY]
Throttle valve
F >> 4F-6-132 000* 4 pin 1
Replacements: 4E0145950J
mating connector
8K0973704 Flat contact housing with contact locking mechanism 4 pin 1
black
059145950R Offers

[Name] [Note] [QTY]
Throttle valve
F 4F-6-132 001>>* 5 pin 1
Replacements: 059145950CC
mating connector
1J0973705 Flat contact housing with contact locking mechanism 5 pin 1
058145824A Offers

[Name] [QTY]
Grommet 4
N91097101 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M6X30 3
059145997H Offers

[Name] [QTY]
throttle valve adapter 1
N0161581 Offers

[Name] [Note] [QTY]
sealing plug AM8X1 1
059145961G Offers

[Name] [QTY]
Bracket
F >> 4F-6-132 000* 1
059145961J Offers

[Name] [QTY]
Bracket
F 4F-6-132 001>>* 1
N10300805 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M6X45 1
038906051B Offers

[Name] [QTY]
Pressure sensor 1
Replacements: 03G906051D
mating connector
1J0973704 Flat contact housing with contact locking mechanism 4 pin 1
N90739703 Offers

[Name] [Note] [QTY]
panel screw 5X22 2
N10009506 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X18 3
N91054101 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X25 3
050129669 Offers

[Name] [Note] [QTY]
Grommet 15,5/30 4
059145762B Offers

[Name] [Note] [QTY]
pressure pipe 1
contains additional positions: 41,42,43
Replacements: 059145762EB
059145215A Offers

[Name] [Note] [QTY]
Seal 1
Included in position: 40
Replacements: 059145215R
059145723 Offers

[Name] [QTY]
Seal 1
059145723 Offers

[Name] [Note] [QTY]
Seal 1
Included in position: 40
059145625 Offers

[Name] [Note] [QTY]
Seal 1
Included in position: 40
N91054001 Offers

[Name] [Note] [QTY]
Semi round bolt (combi) with hexagon socket head M6X22 8
N10080105 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M6X25 2
N91151201 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X30 2
[Name] [Note]
see illustration: 129-040
[Name] [Note]
see illustration: 129-040
059145764 Offers

[Name] [QTY]
Bracket 1
N10405604 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 2
N10405602 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 2
Replacements: N 10405604
8E0971818B Offers

[Name] [Note] [QTY]
Cable ties 4,6X210 2
For hole/material thickness: 5,0/0,6-3,0
N10413401 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X25 3
N91071701 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X25 1
4F0145979A Offers

[Name] [Note] [QTY]
Pressure hose left upper 1
4F0145980F Offers

[Name] [Note] [QTY]
Pressure hose right upper 1
4F0145708C Offers

[Name] [QTY]
Pressure hose 1
4F0145709M Offers

[Name] [QTY]
Pressure hose 1
N10518701 Offers

[Name] [Note] [QTY]
Clamp 35-50X12 9
N90739703 Offers

[Name] [Note] [QTY]
panel screw 5X22 2
N10544401 Offers

[Name] [Note] [QTY]
Hose clamp 60-80X12 1
N10518801 Offers

[Name] [Note] [QTY]
Hose clamp 40-60X12 3
4F0145813F Offers

[Name] [Note] [QTY]
Bracket left 1
4F0145814G Offers

[Name] [Note] [QTY]
Bracket right 1
N10005207 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X18 4
N90908302 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 2
N90908301 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 2
Replacements: N 90908302
