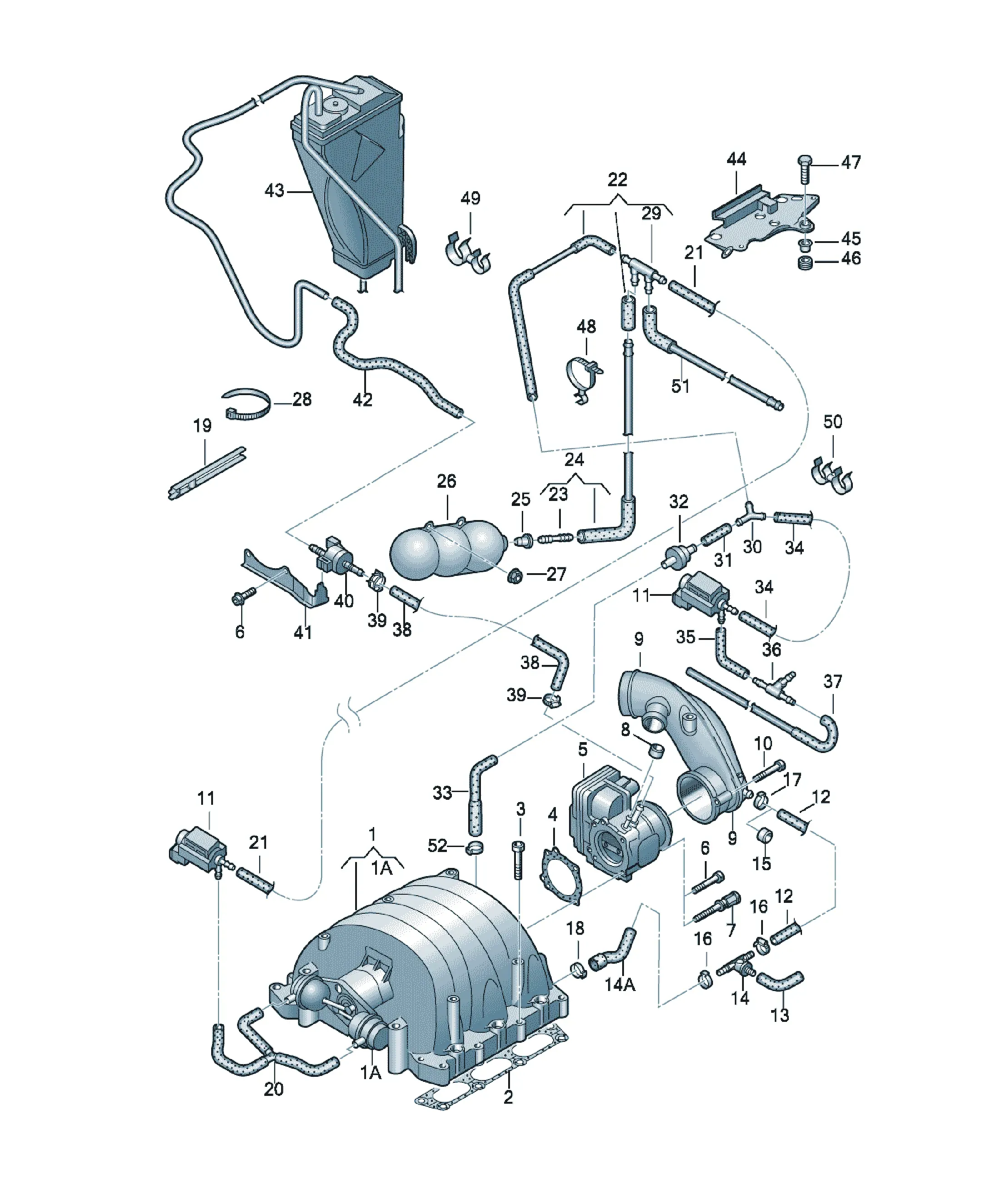

Intake manifold

[Name] [Note] [QTY]

Cap closure 5,2X2X16,6MM 1

[Name] [Note] [QTY]

Var.intake manifold with drive and swivel slide 1

contains: 078 133 717 P 2

Items supplied

06C133223C Intake manifold 1

078129717P Seal green 2

078133073B Seal 1

06C133611 drive unit with rotary valve 1

[Name] [Note]

see illustration: 133-060

[Name] [QTY]

Solenoid valve 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Model info] [QTY]

angled hose manual gearbox 1

[Name] [Note] [Model info]

see illustration: 611-080 automatic

[Name] [Model info] [QTY]

suction jet pump manual gearbox 1

[Name] [Note] [Model info]

see illustration: 611-080 automatic

[Name] [Model info] [QTY]

angled hose manual gearbox 1

[Name] [Note] [Model info] [QTY]

Cap closure 8 automatic 1

[Name] [Note] [QTY]

clamp 21X7X0,60 X

[Name] [Note] [QTY]

Clamp 18,5X7X0,60 1

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [Note] [QTY]

double cable tie M6 X

[Name] [QTY]

drive unit with rotary valve 1

Items supplied

06C133619 Drive unit ASN 1

Assoc. part -> -> -> -> -> ->

06C133613A Rotary slide valve ASN 1

[Name] [Note] [QTY]

Seal red 2

[Name] [Note] [QTY]

Seal green 2

[Name] [QTY]

Vacuum hose 1

[Name] [Note] [QTY]

Vacuum hose left front 1

[Name] [Note] [QTY]

Vacuum hose left 1

[Name] [Note] [QTY]

Connection piece 4/8 1

[Name] [Note] [QTY]

Vacuum pipe left front 1

[Name] [QTY]

Grommet 1

[Name] [QTY]

vacuum reservoir 1

[Name] [Note] [QTY]

hex. nut with washer M5 1

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

[Name] [Note] [QTY]

Distributor 4-4-4-4 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 12

[Name] [Note] [QTY]

t-piece 4-4-4 2

[Name] [Note] [QTY]

Vacuum hose

shorten to: 30MM 1

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

Vacuum hose 1

[Name] [Note] [QTY]

Y-piece 4/4/4 1

[Name] [Note]

see illustration: 131-030

[Name] [QTY]

Connecting hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Seal 1

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Bracket 1

[Name] [Note]

see illustration: 201-090

[Name] [Note]

see illustration: 201-090

[Name] [QTY]

Retaining plate 1

[Name] [QTY]

Distance piece 3

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X25 2

[Name] [Note] [QTY]

Cable tie with hose retainer 7X273-8 1

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

throttle valve adapter 1

mating connector

1J0973713 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Clip 2 point 1

[Name] [Note] [QTY]

Vacuum pipe left front 1

[Name] [Note] [QTY]

Clamp 14,8X7X0,60 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X50 3

[Name] [Note] [QTY]

Threaded bush M6 1

[Name] [Note] [QTY]

Cap closure 8MM 1

[Name] [Note] [QTY]

Cap closure 7MM 1

[Name] [Note]

see illustration: 133-060
