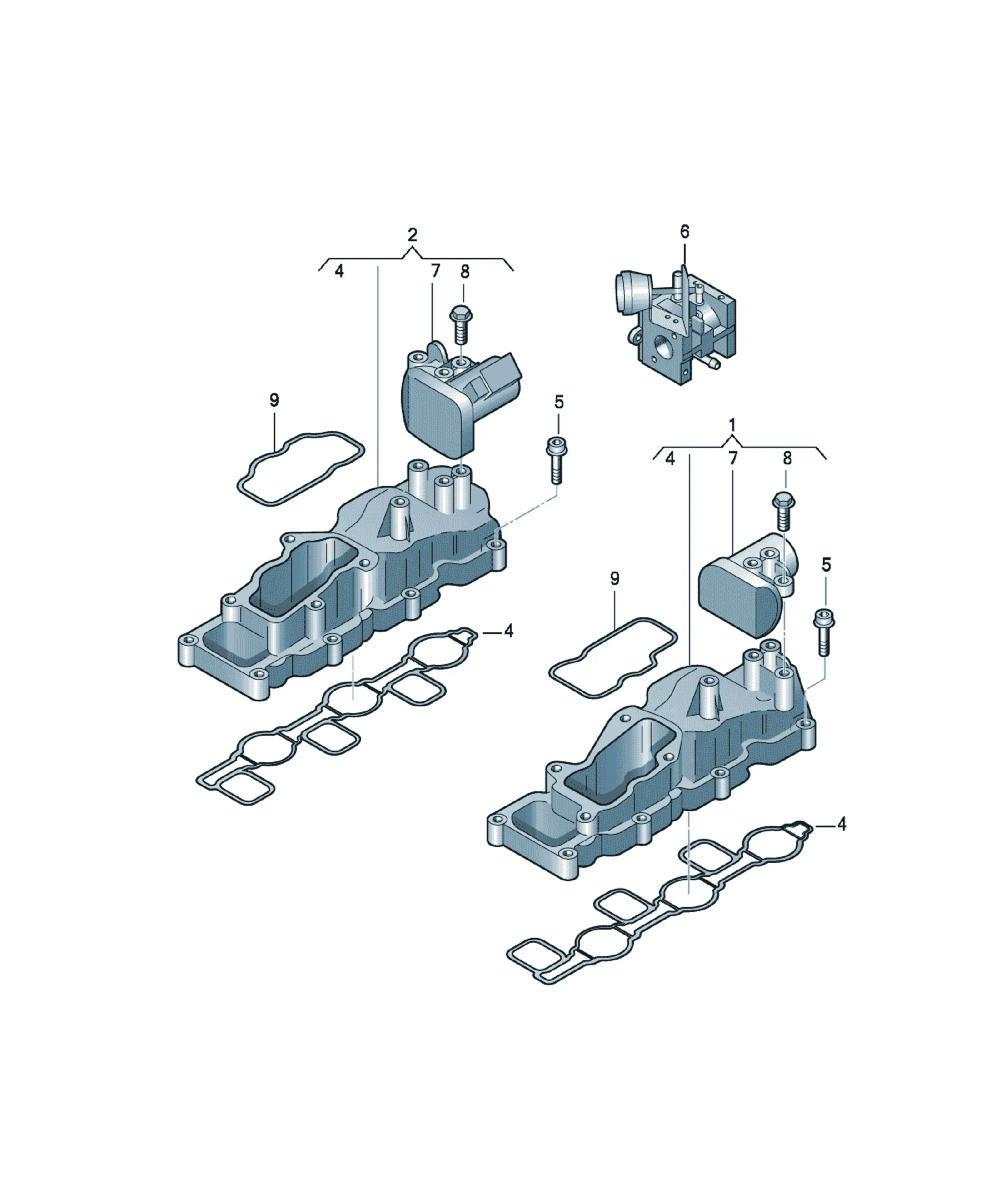

Intake manifold

[Name] [QTY]

Repair set for intake manifold 2

repair set

059198212A slide rod 1

Intake manifold

Follower 1

Clip 1

[Name] [Note] [QTY]

Intake manifold left 1

and

Air flap adjuster

Replacements: 059129711ES

[Name] [Note] [QTY]

Intake manifold right 1

and

Air flap adjuster

Replacements: 059129712CE

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [QTY]

Seal 2

[Name] [Note] [QTY]

oval head countersunk bolt with multi-point socket head M6X40 16

[Name] [Note] [QTY]

see illustration: 131-005 2

[Name] [Note] [QTY]

Air flap adjuster left a. right 2

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 60X55 6

[Name] [Note] [Model info] [QTY]

Seal BMK,BNG,ASB 2

see illustration: 145-045

[Name] [Note] [Model info] [QTY]

Seal BSG,BPP 2

see illustration: 145-042
