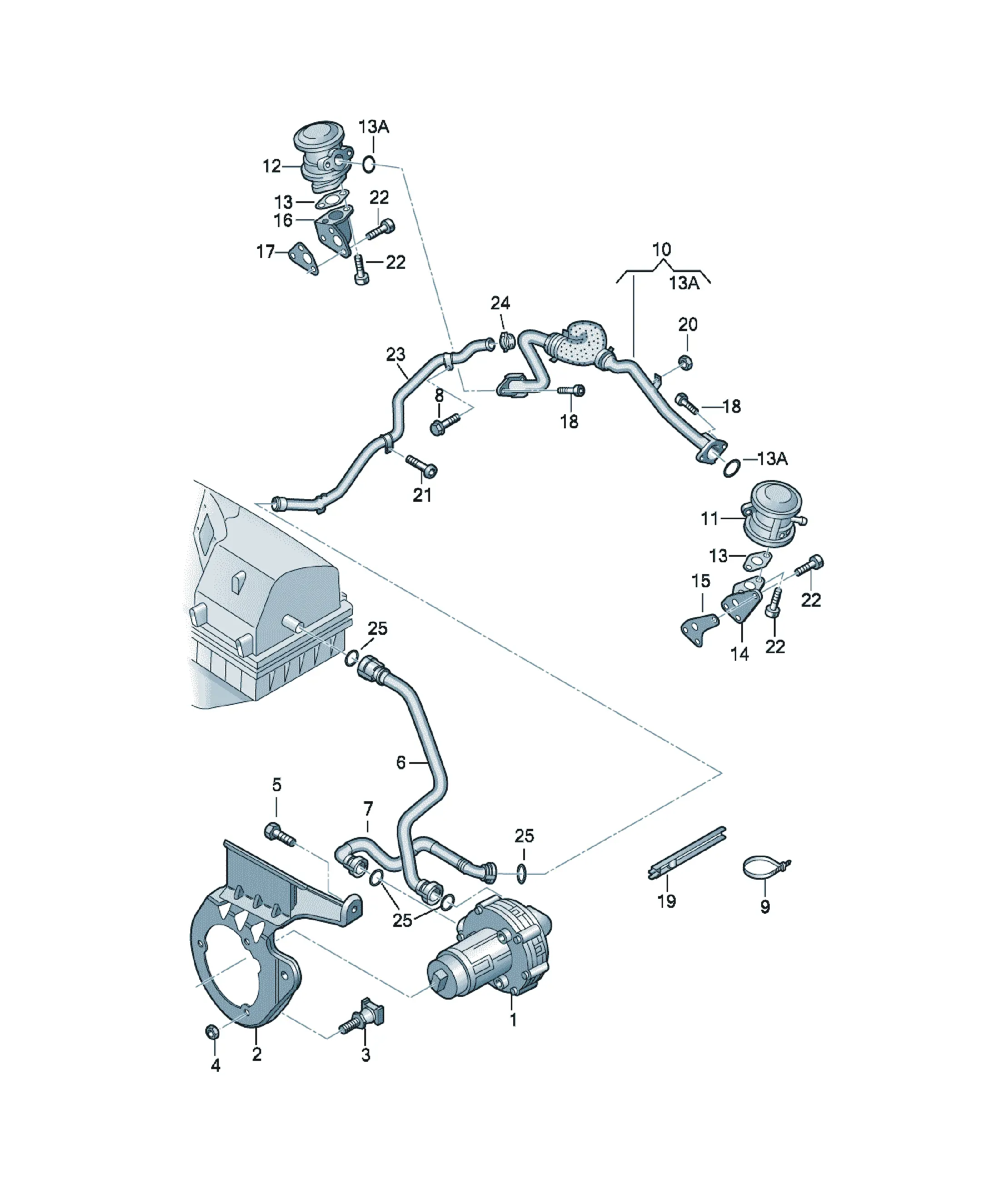

Secondary air injection system

[Name] [Note] [QTY]

O-ring 15X2,5 2

Replacements: WHT008226

[Name] [QTY]

Secondary air pump 1

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [QTY]

Connecting pipe

F >> 4F-6-250 000 1

[Name] [Note] [QTY]

kombi valve left 1

[Name] [Note] [QTY]

kombi valve right 1

[Name] [QTY]

Seal 2

[Name] [Note] [QTY]

O-ring 2

No replacement part

Included in position: 10

[Name] [Note] [QTY]

Adapter left 1

[Name] [Note] [QTY]

Seal left 1

[Name] [Note] [QTY]

Adapter right 1

[Name] [Note] [QTY]

Seal right 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

double cable tie X

[Name] [QTY]

Retainer for pump 1

[Name] [Note] [QTY]

Hexagon collar nut M6 3

Replacements: N 01508210

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 8

[Name] [QTY]

Connecting pipe

F >> 4F-6-250 000 1

[Name] [Note] [QTY]

Spring band clamp 27X12 1

[Name] [QTY]

Stop buffer 3

[Name] [Note] [QTY]

Hexagon collar nut M6 3

Replacements: N 01508210

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X15 3

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X
