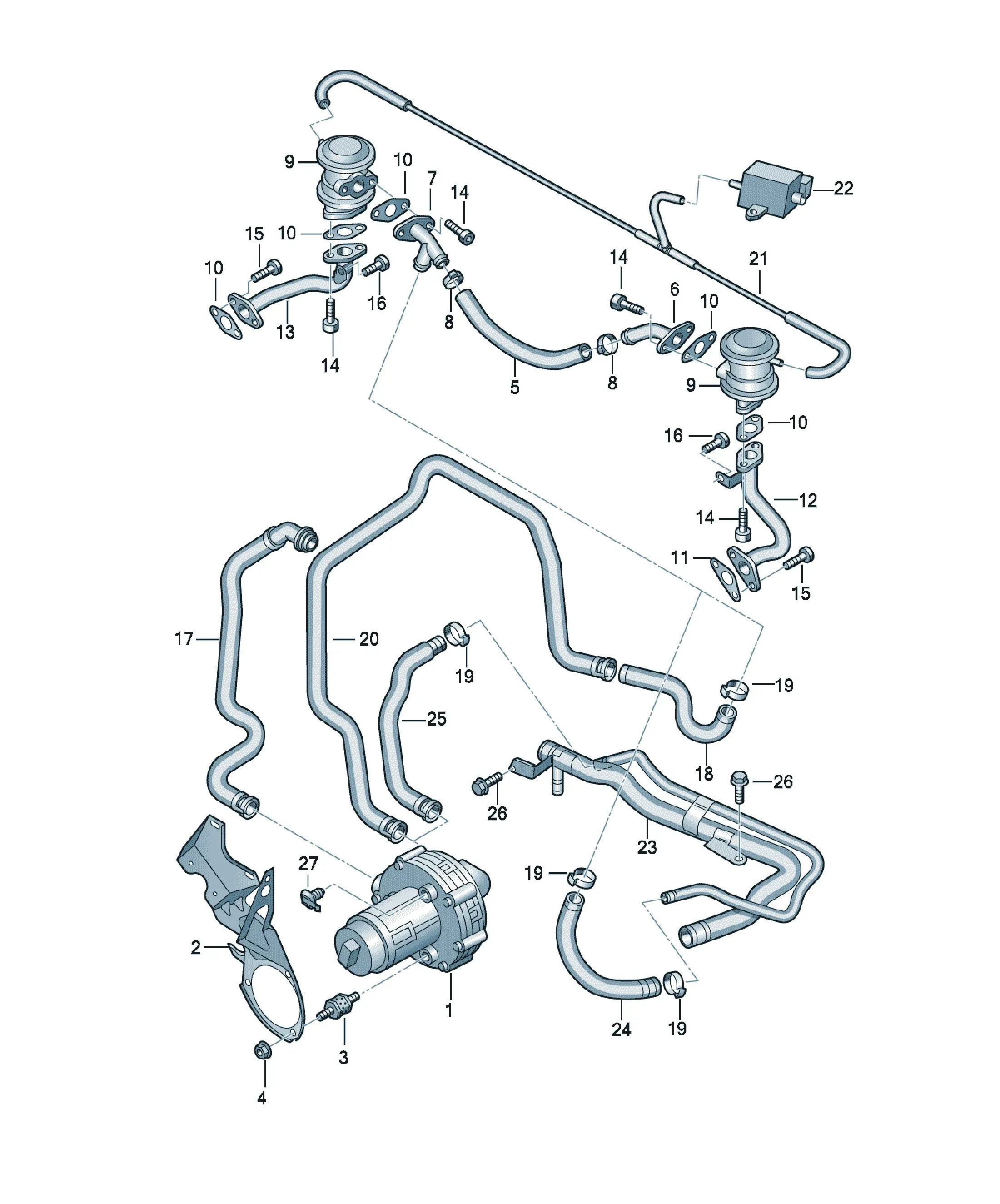

Secondary air injection system

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Hex collared bolt M6X16 X

[Name] [Note] [QTY]

Hex collared bolt M8X16 X

[Name] [QTY]

Secondary air pump 1

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [QTY]

Seal 5

[Name] [Note] [QTY]

Seal left 1

[Name] [Note] [QTY]

Adapter left 1

[Name] [Note] [QTY]

Adapter

F >> 4F-6-035 000* right 1

[Name] [Note] [QTY]

Adapter

F 4F-6-035 001>>* right 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 8

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X18 4

Replacements: N 10196105

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 2

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

Ear crimp hose clamp 24,1X7X0,60 3

[Name] [QTY]

Retainer for pump 1

[Name] [QTY]

pressure controlline 1

[Name] [Note]

see illustration: 133-082

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Connecting pipe 1

[Name] [Model info] [QTY]

Connecting pipe PR:8Z5,8Z6 1

[Name] [Model info] [QTY]

Connecting pipe PR:8Z9 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

Replacements: N 10248003

[Name] [QTY]

Stop buffer 3

[Name] [Note] [QTY]

Hexagon collar nut M6 3

Replacements: N 01508210

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

connection piece left 1

[Name] [Note] [QTY]

connection piece right 1

[Name] [Note] [QTY]

Clamp 22,6X7X0,60 2

[Name] [QTY]

kombi valve 2

Items supplied

clamp 1

Chafe guard 1

Hose 1

connection piece 1
