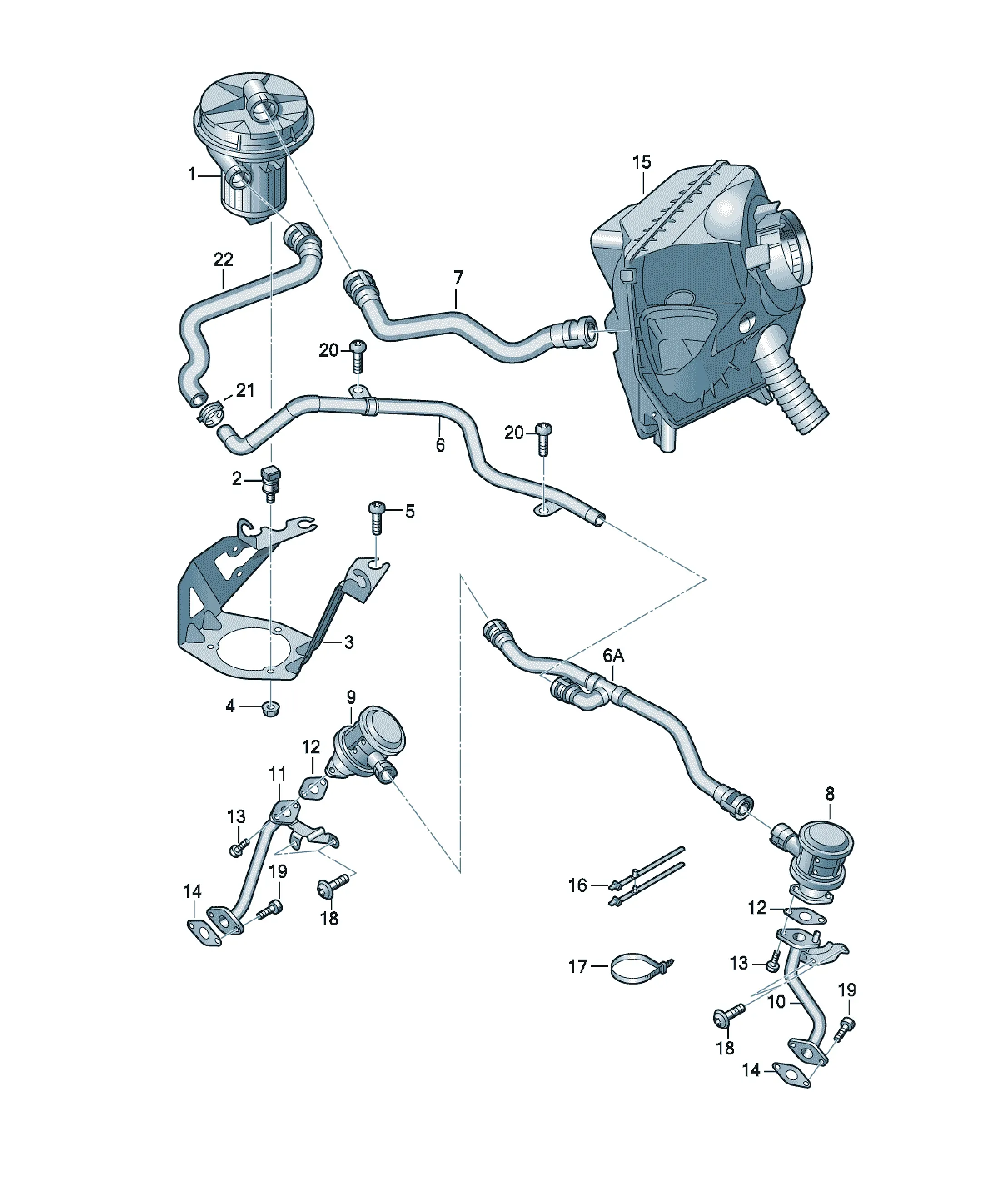

Secondary air injection system

[Name] [QTY]

Secondary air pump 1

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire: 000 979 135 1,0 X

000 979 227 2,5 X

matching contact housing: 1J0 973 852

[Name] [Note] [QTY]

Adapter left 1

[Name] [Note] [QTY]

Adapter right 1

[Name] [QTY]

Seal 2

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 4

[Name] [QTY]

Seal 2

[Name] [Note]

see illustration: 133-080

[Name] [QTY]

double cable tie X

[Name] [Note] [QTY]

Cable ties with bracket 4,6X200 X

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 4

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 4

[Name] [QTY]

Stop buffer 3

[Name] [Note] [QTY]

Hexagon socket head bolt M8X20 2

[Name] [Note] [QTY]

Spring band clamp 27X12 2

[Name] [Model info] [QTY]

Connecting pipe PR:8Z9 1

[Name] [Model info] [QTY]

Connecting pipe PR:8Z4,8Z5, 1

8Z6

[Name] [QTY]

Retainer for pump 1

[Name] [Note] [QTY]

Hexagon collar nut M6 3

Replacements: N 01508210

[Name] [Note] [QTY]

Hex socket head collared bolt M8X16 4

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Connecting pipe 1

[Name] [Note] [QTY]

kombi valve left 1

[Name] [Note] [QTY]

kombi valve right 1
