Engine cover and engine bay

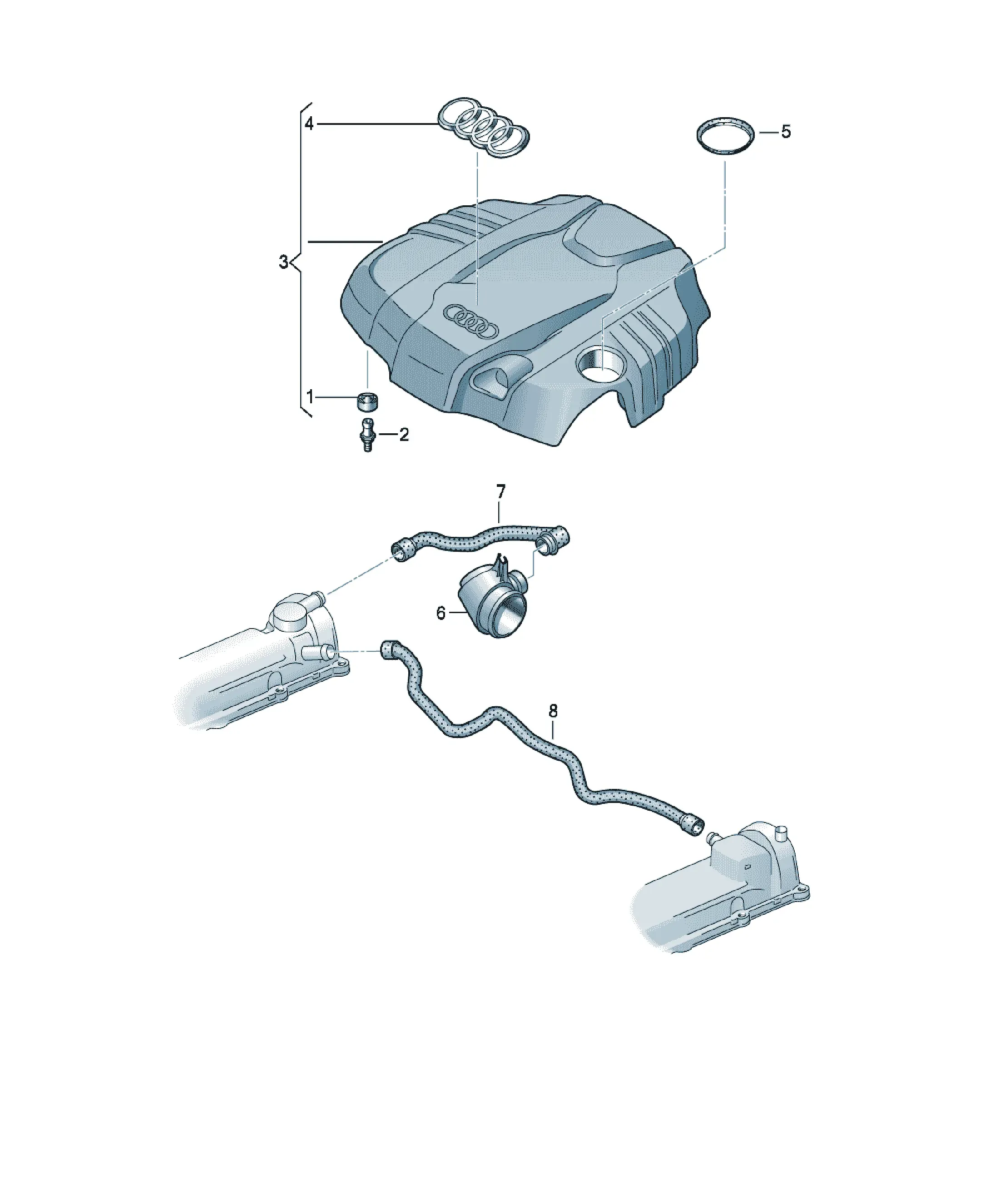

Engine decorative cover

Assembly diagrams

6 diagrams

12 parts

07C103226 Offers

[Name] [QTY]
push-on connector 4
WHT000351 Offers

[Name] [Note] [QTY]
Ball pin 15X12 2
4L0103925E Offers

[Name] [Note] [QTY]
cover for intake manifold 'V6-3,0 TDI' 1
06J103940A Offers

[Name] [Note] [QTY]
maker's plate 'V6-3,0 TDI' 1
D >> - 16.08.2010
Replacements: 4H0103940A
4H0103940A Offers

[Name] [Note] [QTY]
maker's plate 'V6-3,0 TDI' 1
D - 16.08.2010>>
057133287C Offers

[Name] [QTY]
seal ring 1
[Name] [Note]
Damper
see illustration: 145-030
059103221AL Offers

[Name] [QTY]
Vent hose 1
059103221AP Offers

[Name] [Model info] [QTY]
Vent hose PR:7BG 1
059103209F Offers

[Name] [Model info] [QTY]
Vent hose PR:7BG 1
059103209C Offers

[Name] [QTY]
Vent hose 1
D >> - 12.05.2011
Replacements: 059103209D
059103209D Offers

[Name] [QTY]
Vent hose 1
D - 12.05.2011>>
