Engine cover and engine bay

Air duct

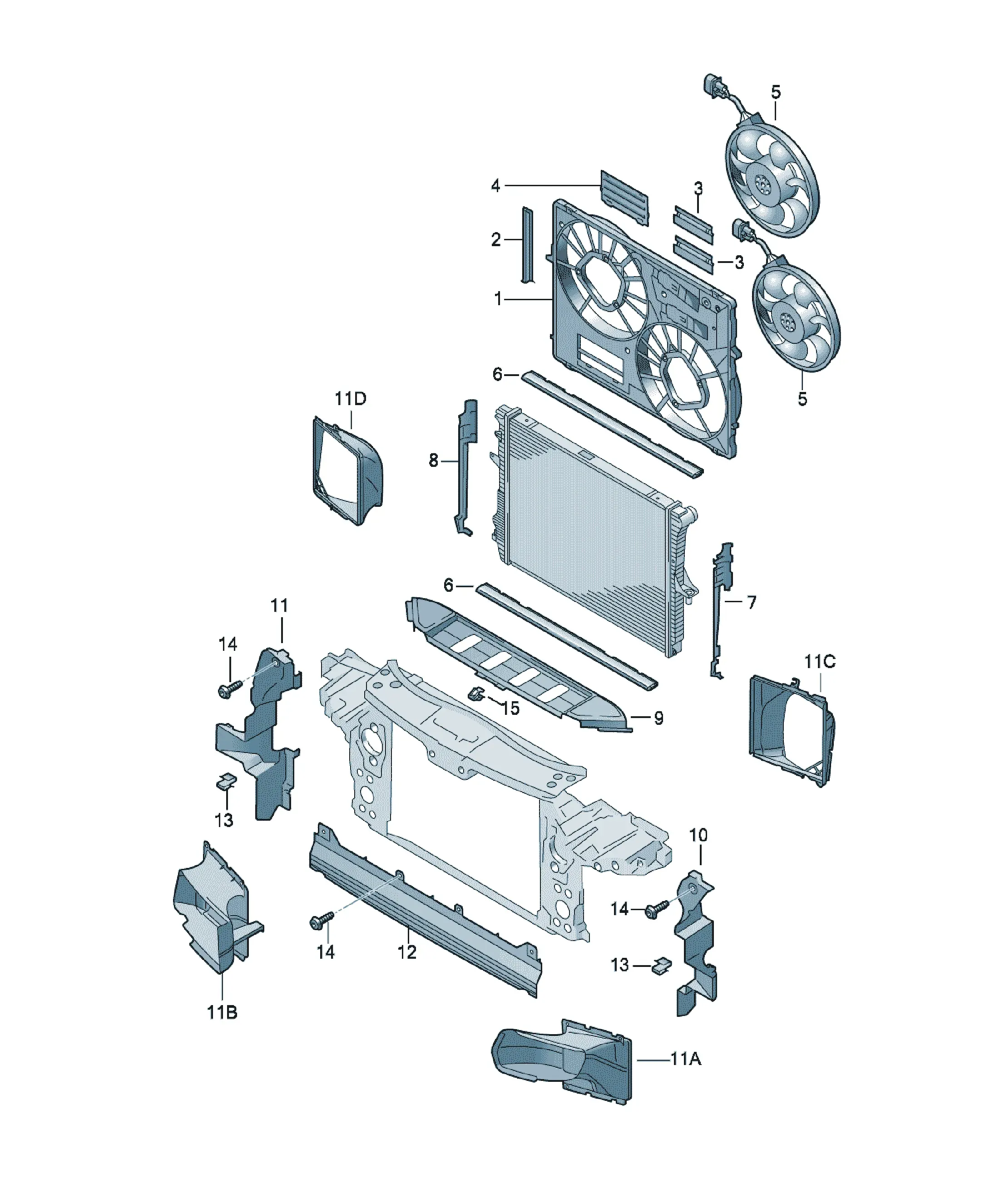

Assembly diagrams

6 diagrams

Parts

102 parts

Bracket - tube fastening
4L0201981 Offers

[Name] [Model info] [QTY]
Hose bracket 12-cylinder+ 1
diesel eng.
Винт самонарез. с внутр. TORX
7L0121953B Offers

[Name] [Note] [Model info] [QTY]
Hexagon socket head panel bolt 4X25 PR:TD5 4
only to be used for: 7L6 121 207
Зажим
7L6121095A Offers

[Name] [Model info] [QTY]
Retaining clip PR:TC6,TE1, 5
TE5,TF1,TH1
Bracket - tube fastening
4L0201981 Offers

[Name] [Model info] [QTY]
Hose bracket PR:TD5 3
7L6121207 Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TE5 1
for models with towing facility
Accompanying details: 7L0121953B
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TC6+1D0, 1
1D8+0Y2,0Y4,
0Y5
7L6121207 Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Petrol eng.+
PR:0Y2,0Y4+
0Y5+1D2,1D6,
1D9
Accompanying details: 7L0121953B
7L6121207 Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Diesel eng.+
PR:1D2,1D6,
1D8,1D9
Accompanying details: 7L0121953B
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TC6+1D2, 1
1D6,1D9+0Y2,
0Y4,0Y5
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TC6+1D8+ 1
9AD,9AH+0Y1,
0Y3
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TC6+1D0, 1
1D8+9AH+0Y1,
0Y3
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TC6+1D2, 1
1D6,1D9+0Y1,
0Y3
7L6121207 Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring PR:TD5 1
use if required: 7L0 121 953 B 4
Accompanying details: 7L0121953B
7L6121207 Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 12-cylinder+ 1
diesel eng.
use if required: 7L0 121 953 B 4
Accompanying details: 7L0121953B
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y2,0Y4,
0Y5+1D0
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y1,0Y3+
1D2,1D6,1D8,
1D9
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y1,0Y3+
1D0+9AH
7L0121207F Offers

[Name] [Note] [Model info] [QTY]
Fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y1,0Y3+
1D0+9AB,9AD
7L0121207F Offers

[Name] [Model info] [QTY]
Fan ring PR:TC6+1D0+ 1
9AD+0Y1,0Y3
7L0121207E Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y2,0Y4,
0Y5+1D2,1D6,
1D9
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring 6-cylinder+ 1
Diesel eng.+
PR:1D2,1D6,
1D8,1D9
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring 6-cylinder+ 1
Diesel eng.+
PR:1D0
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Diesel eng.+
PR:1D0
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Petrol eng.+
PR:1D0
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Petrol eng.+
PR:0Y2,0Y4,
0Y5+1D8
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring 8-cylinder+ 1
Petrol eng.+
PR:0Y1,0Y3+
1D2,1D6,1D8,
1D9
7L0121207F Offers

[Name] [Note] [Model info] [QTY]
Fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC+
PR:0Y1,0Y3+
1D0+9AD
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC,+
PR:0Y1,0Y3+
1D2,1D6,1D9
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC,+
PR:0Y1,0Y3+
1D0,1D8+9AH
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC,+
PR:0Y1,0Y3+
1D8+9AD
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC,+
PR:0Y2,0Y4,
0Y5+1D0,1D8
7L0121207E Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CJTC,CJWC,+
PR:0Y2,0Y4,
0Y5+1D2,1D6,
1D9
7L0121207E Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CNAA,CJTB,
CJWB+PR:0Y1,
0Y3+1D2,1D6,
1D9
7L0121207E Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CNAA,CJTB,
CJWB+PR:0Y2,
0Y4,0Y5+1D0,
1D8
7L6121207 Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.0Ltr. 6-cylinder+ 1
CNAA,CJTB,
CJWB+PR:0Y2,
0Y4,0Y5+1D2,
1D6,1D9
Accompanying details: 7L0121953B
7L0121207D Offers

[Name] [Note] [Model info] [QTY]
Twin fan ring 3.6ltr. 6-cylinder+ 1
Petrol eng.+
PR:0Y2,0Y4,
0Y5,1D8
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TE1,TF1, 1
for models with towing facility TH1
7L0121207D Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TE1,TF1, 1
TH1
7L0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring PR:TE5 1
4L0121283J Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TC6,TE1, 1
D - 04.11.2013>> TE5,TF1,TH1+
2K6
4L0121283H Offers

[Name] [Note] [Model info] [QTY]
Air guide left diesel eng. 1
4L0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left 6, 8-cyl.+ 1
Petr. engine
4L0121283D Offers

[Name] [Note] [Model info] [QTY]
Air guide left 12-cylinder+ 1
diesel eng.
4L0121283D Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TD5 1
4L0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:T8T,TA0 1
4L0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TC6+2K1, 1
D - 04.11.2013>> 2K2,2K7,2K8,
VJ0,VJ1,VJ2,
VJ3,VJ4,VJ5
4L0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TC6 1
D >> - 04.11.2013
4L0121283H Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TE1,TE5, 1
D - 04.11.2013>> TF1,TH1+2K1,
2K2,2K7,2K8,
VJ1,VJ2,VJ3,
VJ4
4L0121283H Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TE1,TE5, 1
D >> - 04.11.2013 TF1,TH1
4L0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right 6, 8-cyl.+ 1
Petr. engine
4L0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TC6 1
D >> - 04.11.2013
4L0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:T8T,TA0 1
4L0121284D Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TD5 1
4L0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TC6+2K1, 1
D - 04.11.2013>> 2K2,2K7,2K8,
VJ0,VJ1,VJ2,
VJ3,VJ4,VJ5
4L0121284H Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TE1,TE5, 1
D >> - 04.11.2013 TF1,TH1
4L0121284H Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TE1,TE5, 1
D - 04.11.2013>> TF1,TH1+2K1,
2K2,2K7,2K8,
VJ1,VJ2,VJ3,
VJ4
4L0121284J Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TC6,TE1, 1
D - 04.11.2013>> TE5,TF1,TH1+
2K6
4L0121284H Offers

[Name] [Note] [Model info] [QTY]
Air guide right diesel eng. 1
4L0121284D Offers

[Name] [Note] [Model info] [QTY]
Air guide right 12-cylinder+ 1
diesel eng.
4L0117335F Offers

[Name] [Note] [Model info] [QTY]
Air guide left front PR:TC6+2K1, 1
for additional coolant rad. 2K2,2K7,2K8,
VJ0,VJ1,VJ2,
VJ3,VJ4,VJ5
[Name] [Note] [Model info]
Air guide for charge air cooler PR:TE1,TE5,
TF1,TH1
see illustration: 145-045
4L0117335G Offers

[Name] [Note] [Model info] [QTY]
Air guide left front PR:TC6+2K6 1
for additional coolant rad.
4L0117335F Offers

[Name] [Note] [Model info] [QTY]
Air guide 3.0Ltr. 6-cylinder+ 1
for additional coolant rad. left Petr. engine
[Name] [Note] [Model info]
Air guide for charge air cooler diesel eng.
see illustration: 145-045
[Name] [Note] [Model info]
Air guide for charge air cooler diesel eng.
see illustration: 145-045
4L0117336F Offers

[Name] [Note] [Model info] [QTY]
Air guide right front PR:TC6+2K1, 1
for additional coolant rad. 2K2,2K7,2K8,
VJ0,VJ1,VJ2,
VJ3,VJ4,VJ5
4L0117336G Offers

[Name] [Note] [Model info] [QTY]
Air guide right front PR:TC6+2K6 1
for additional coolant rad.
4L0117336F Offers

[Name] [Note] [Model info] [QTY]
Air guide 3.0Ltr. 6-cylinder+ 1
for additional coolant rad. right Petr. engine
[Name] [Note] [Model info]
Air guide for charge air cooler PR:TE1,TE5,
TF1,TH1
see illustration: 145-045
[Name] [Note] [Model info]
Air guide PR:TE5
Charge air cooler
see illustration, item: 145-050,37
7P5117339D Offers

[Name] [Note] [Model info] [QTY]
Air guide left rear "CN."+ 1
for additional coolant rad. PR:TC6
7P0117340 Offers

[Name] [Note] [Model info] [QTY]
Air guide right rear "CN."+ 1
for additional coolant rad. PR:TC6
[Name] [Note] [Model info]
Air guide PR:TE5
Charge air cooler
see illustration, item: 145-050,38
4L0121292 Offers

[Name] [Note] [Model info] [QTY]
Air guide lower PR:FM0 1
[Name] [Note] [Model info]
Air guide PR:FN4
see illustration, item: 075-010,15
4L0121292 Offers

[Name] [Note] [Model info] [QTY]
Air guide lower 6, 8-cyl.+ 1
PR:FM0
[Name] [Note] [Model info]
Air guide 6, 8-cyl.+
see illustration, item: 075-010,15 PR:FN4
4L0121095 Offers

[Name] [QTY]
Retaining clip 2
N91034301 Offers

[Name] [Note] [QTY]
self-tapping screw 6X20 3
1J0858137B Offers

[Name] [QTY]
Clip 2
7L0121229 Offers

[Name] [Model info] [QTY]
beading PR:TC6,TH1 1
7L0121229 Offers

[Name] [QTY]
beading 1
7L0121223 Offers

[Name] [Note] [QTY]
Radiator louvre X
only to be used for: 7L0 121 207 E
7L0 121 207 F
7L0 121 207 D
7L0121223 Offers

[Name] [Note] [Model info] [QTY]
Radiator louvre PR:TC6,TD5, X
only to be used for: 7L0 121 207 E TE1,TE5,TH1
7L0 121 207 F
7L0 121 207 D
8A0121223A Offers

[Name] [Note] [QTY]
Radiator louvre X
only to be used for: 7L6 121 207
7L0 121 207 D
7L0 121 207 E
8A0121223A Offers

[Name] [Note] [Model info] [QTY]
Radiator louvre PR:TC6,TD5, X
only to be used for: 7L6 121 207 TE1,TE5,TH1
7L0 121 207 D
7L0 121 207 E
[Name] [Note] [Model info]
Radiator fan 8-cylinder+
see illustration: 959-070 Petr. engine
[Name] [Note] [Model info]
Radiator fan 6-cylinder+
see illustration: 959-060 diesel eng.
[Name] [Note] [Model info]
Radiator fan PR:TC6
see illustration: 959-050
[Name] [Note] [Model info]
Radiator fan PR:T8T
see illustration: 959-070
[Name] [Note] [Model info]
Radiator fan PR:TH1
see illustration: 959-060
[Name] [Note] [Model info]
Radiator fan 6-cylinder+
see illustration: 959-050 Petr. engine
7L0121345 Offers

[Name] [Note] [Model info] [QTY]
beading 706MM PR:TC6,TD5, 2
TE1,TE5,TF1,
TH1
7L0121345 Offers

[Name] [Note] [QTY]
beading 706MM 2
7L0121331B Offers

[Name] [Note] [QTY]
Seal left 1
7L0121331B Offers

[Name] [Note] [Model info] [QTY]
Seal left PR:TC6,TE1, 1
TE5,TF1,TH1
7L0121332B Offers

[Name] [Note] [QTY]
Seal right 1
7L0121332B Offers

[Name] [Note] [Model info] [QTY]
Seal right PR:TC6,TE1, 1
TE5,TF1,TH1
4L0121285 Offers

[Name] [Note] [Model info] [QTY]
Air guide upper PR:TC6,TE1, 1
use if required: 4L0 121 095 TE5,TF1,TH1 2
7L6 121 095 A 5
Accompanying details: 4L0121095; 7L6121095A
4L0121285 Offers

[Name] [Note] [Model info] [QTY]
Air guide upper 6-,8-cyl. 1
use if required: 4L0 121 095
Accompanying details: 4L0121095
4L0121285A Offers

[Name] [Note] [Model info] [QTY]
Air guide upper 12-cylinder+ 1
use if required: 4L0 201 981 diesel eng. 3
Accompanying details: 4L0201981
4L0121285A Offers

[Name] [Note] [Model info] [QTY]
Air guide upper PR:TD5 1
use if required: 4L0 201 981 3
Accompanying details: 4L0201981

Air duct

Assembly diagrams

Parts

Catalog

More

Contact us
