Engine cover and engine bay

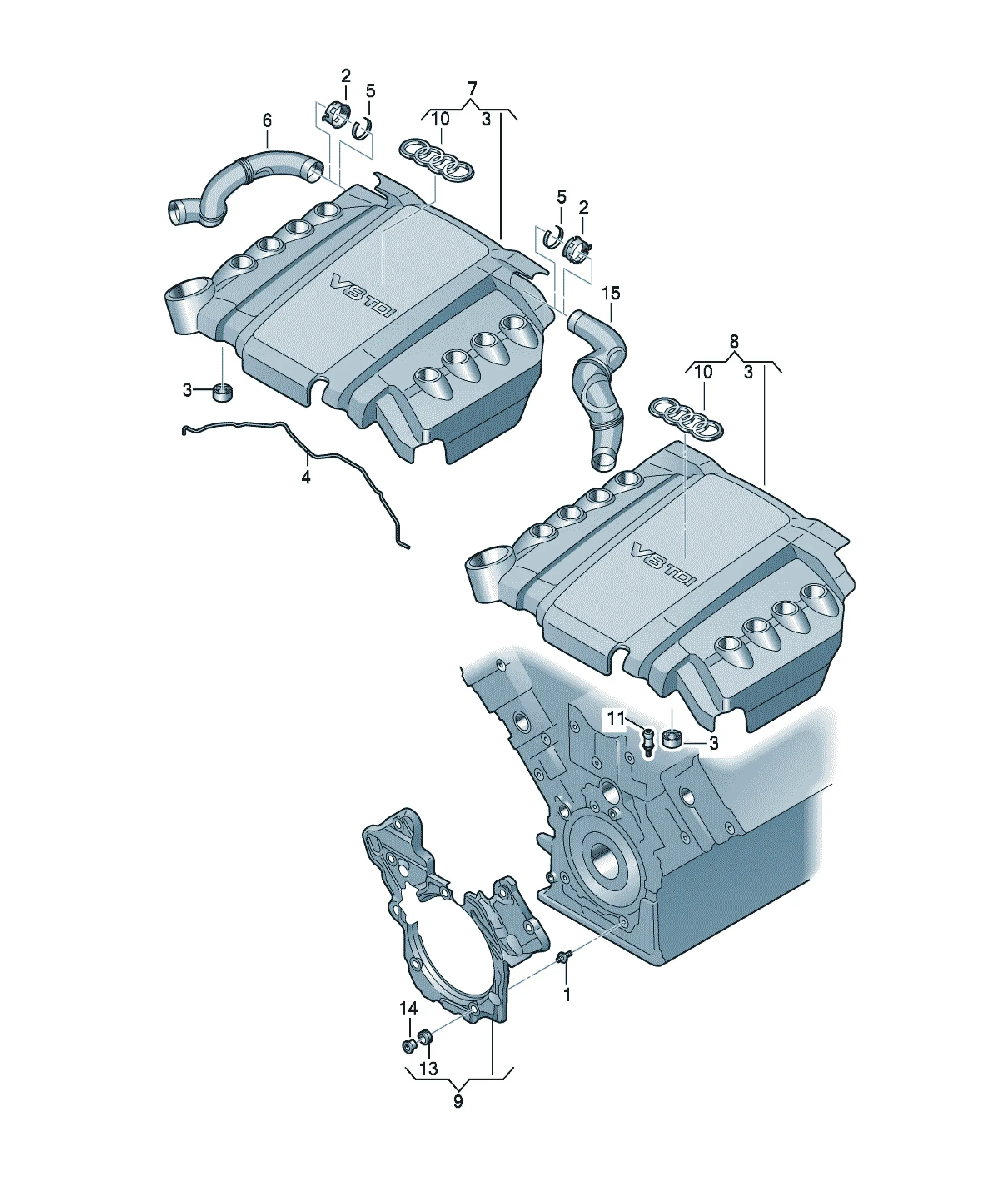

Engine decorative cover

Assembly diagrams

6 diagrams

11 parts

Зажимная шайба
N90962502 Offers

[Name] [Note] [QTY]
Clamping washer B-2.0X9.75 4
WHT000939 Offers

[Name] [Note] [QTY]
Threaded pin M6X6,4/M6X12 6
4H0103940 Offers

[Name] [Note] [QTY]
maker's plate 1
also use: N 909 625 02 4
Accompanying details: N 90962502
WHT002378 Offers

[Name] [Note] [QTY]
Ball screw rear 2
WHT002377 Offers

[Name] [Note] [QTY]
Ball screw front 2
059109151 Offers

[Name] [QTY]
Grommet 7
WHT000750 Offers

[Name] [Note] [QTY]
Collar nut with hexagon socket M6 6
07C103226 Offers

[Name] [QTY]
push-on connector 4
4L0103925D Offers

[Name] [Model info] [QTY]
cover for intake manifold CCFC 1
057103925E Offers

[Name] [Model info] [QTY]
cover for intake manifold CCFA 1
057103926C Offers

[Name] [Note] [QTY]
Cover lower centre 1
