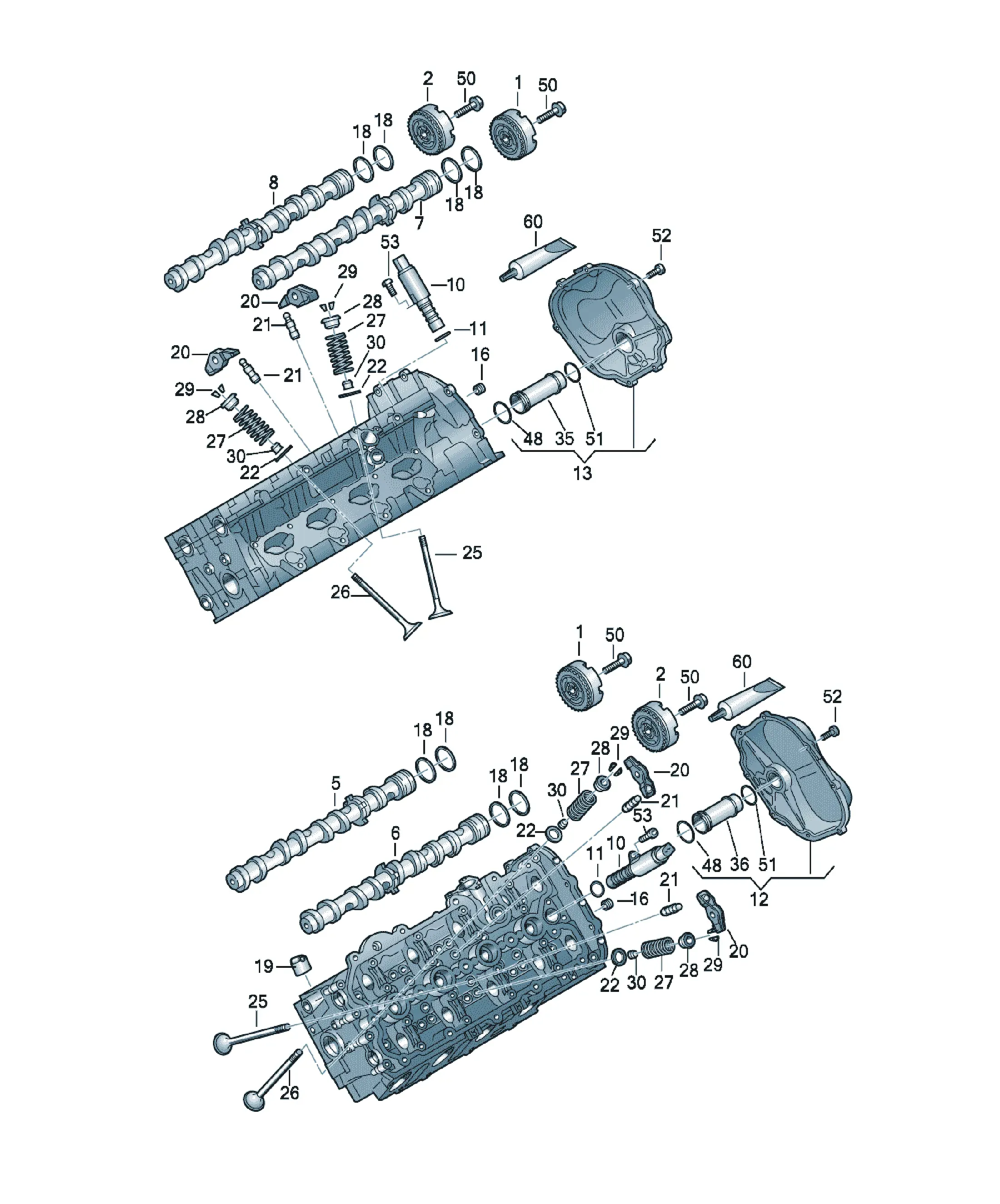

Camshaft and valve train

[Name] [Note] [QTY]

Mounting sleeve 6X20 X

red

[Name] [Note] [QTY]

camshaft adjuster unit Inlet 2

[Name] [QTY]

control valve 4

Replacements: 06E109257AA

[Name] [Note] [QTY]

O-ring 14,8X1,9 4

[Name] [Note] [QTY]

Cover left 1

Replacements: 079109283L

[Name] [Note] [QTY]

Cover right 1

Replacements: 079109284P

[Name] [QTY]

Bungs 6

[Name] [QTY]

seal ring 8

[Name] [Note] [QTY]

camshaft adjuster unit Outlet 2

[Name] [QTY]

roller rocker arm 32

[Name] [QTY]

equalizing element, hydraulic 32

[Name] [Note] [QTY]

Inlet valve 104MM 16

[Name] [QTY]

exhaust valve 16

[Name] [QTY]

Valve spring 32

[Name] [QTY]

spring disc 32

[Name] [QTY]

cotter, split 64

Replacements: 036109651A

[Name] [Note] [QTY]

Valve stem seal 6MM 32

also use: 100 109 001 B X

Accompanying details: 100109001B

[Name] [Note] [QTY]

Coolant pipe 103 MM 1

Replacements: 079121071CQ

[Name] [Note] [QTY]

Coolant pipe 83,5 MM 1

Replacements: 079121071CS

[Name] [QTY]

seal ring 8

[Name] [Note] [QTY]

Camshaft Inlet 1

Cylinder 5-8

[Name] [Note] [QTY]

Flat head multi-point socket bolt M12X1,25X60X30 4

[Name] [QTY]

seal ring 8

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X28 16

[Name] [Note] [QTY]

Hexagon socket flat head bolt M4X10 4

[Name] [Note] [QTY]

Camshaft Outlet 1

Cylinder 5-8

[Name] [Note] [QTY]

Silicon sealant 50ML X

adhesives and sealing compound

[Name] [Note] [QTY]

Camshaft Inlet 1

Cylinders 1-4

[Name] [Note] [QTY]

Camshaft Outlet 1

Cylinders 1-4
