Camshaft

Cylinder head

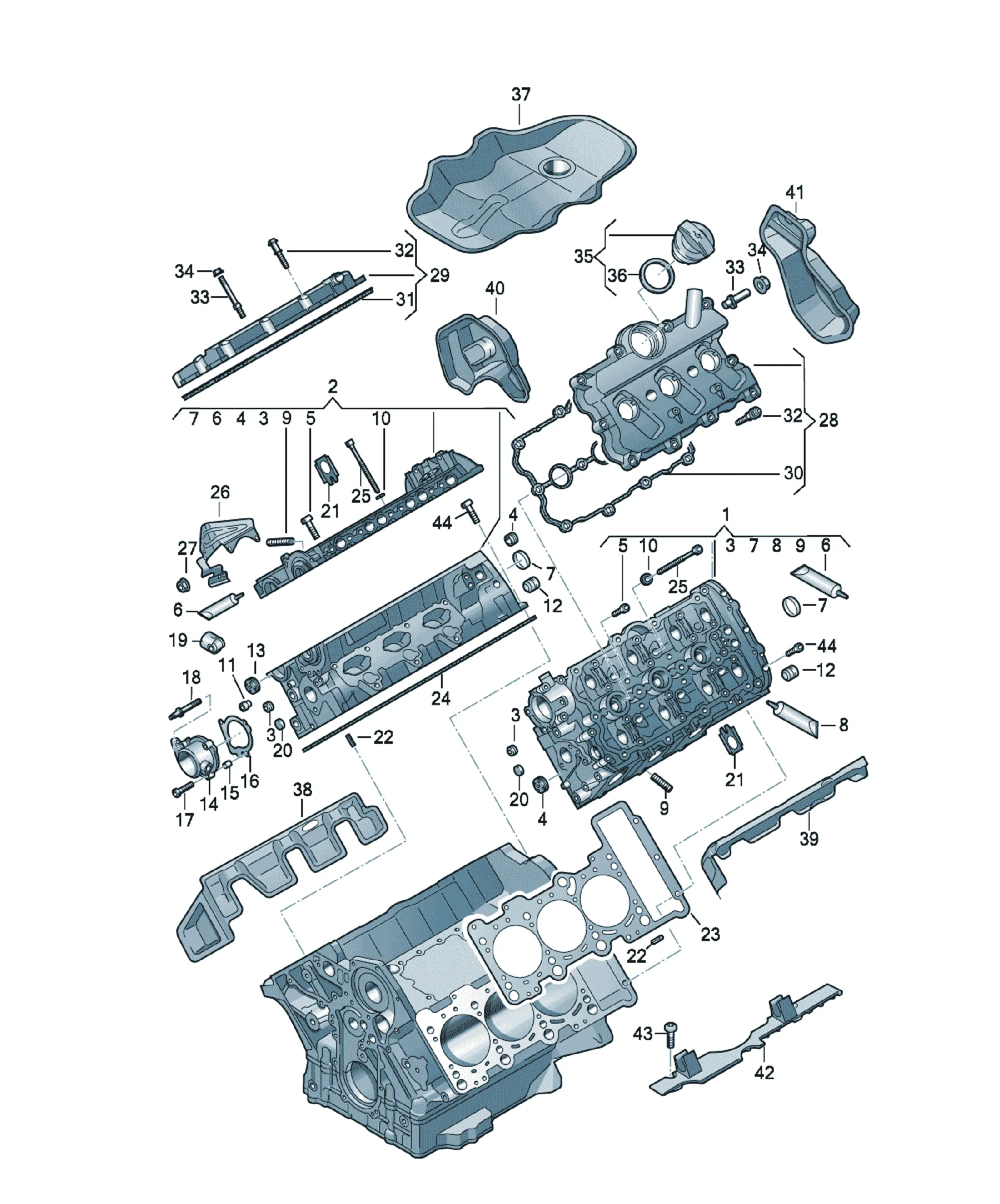

Assembly diagrams

9 diagrams

Parts

65 parts
  • Распределительный вал
    06E109102BF Offers

    [Name] [Note] [QTY]

    Camshaft Outlet 1

  • Винт с полукр.гол. и внут.TORX
    N10750101 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X48.0 6

  • Распределительный вал
    06E109102BG Offers

    [Name] [Note] [QTY]

    Camshaft Outlet 1

  • Распределительный вал
    06E109101BH Offers

    [Name] [Note] [QTY]

    Camshaft Inlet 1

  • Распределительный вал
    06E109101BG Offers

    [Name] [Note] [QTY]

    Camshaft Inlet 1

  • 06E103065QX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 19.04.2013>> - 21.03.2014 48

    also use: 1

    Camshaft 1

    Replacements: 06E103065Q

    Items supplied

    06E103067DE Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    N 10750101 Oval hexagon socket head bolt M6X48.0 3

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

  • 06E103065Q Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 19.04.2013>> - 21.03.2014

    also use: 1

    Camshaft 1

    Replacements: 06E103263B

    Items supplied

    06E103067DE Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    N 10750101 Oval hexagon socket head bolt M6X48.0 3

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

  • 06E103065LX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 13.02.2012>> - 19.04.2013

    also use: 06E 109 101 BH 1

    06E 109 102 BG 1

    Accompanying details: 06E109101BH; 06E109102BG

    Replacements: 06E103065L

  • 06E103065DX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 10.01.2011>> - 13.02.2012

    also use: 06E 109 101 BH 1

    06E 109 102 BG 1

    Accompanying details: 06E109101BH; 06E109102BG

    Replacements: 06E103065LX

    Items supplied

    06E103067CF Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    022109423D equalizing element, hydraulic 12

    06B103113C End cap 26MM 2

    06E103385 Torx socket head bolt 16

    N 10750101 Oval hexagon socket head bolt M6X48.0 7

  • 06E103065L Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 13.02.2012>> - 19.04.2013

    also use: 06E 109 101 BH 1

    06E 109 102 BG 1

    Accompanying details: 06E109101BH; 06E109102BG

    Replacements: 06E103065Q

    Items supplied

    06E103067CT Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 1

    N 10750101 Oval hexagon socket head bolt M6X48.0 3

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

  • 06E103065D Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D >> - 13.02.2012

    also use: 06E 109 101 BH 1

    06E 109 102 BG 1

    Accompanying details: 06E109101BH; 06E109102BG

    Replacements: 06E103065L

    Items supplied

    06E103067CF Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 1

    N 10750101 Oval hexagon socket head bolt M6X48.0 3

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

  • 06E103903KX Offers

    [Name] [Note] [QTY]

    Cylinder head with valves and camshaft cylinders 4-6 1

    D >> - 10.01.2011

    Replacements: 06E103065DX; 06E109101BH; 06E109102BG

    Items supplied

    036103113A End cap 36,6 1

    06D103377 Washer 8

    07L905163A impulse sender 1

    Camshaft

    036109675A Valve stem seal 6MM 12

    06E109601E Inlet valve 104MM 6

    06E109623L Valve spring 12

    06E109641A spring disc 12

    036109651A cotter, split 24

    06E109417H roller rocker arm 12

    022109423D equalizing element, hydraulic 6

    06D109611H exhaust valve 6

    06E109101BH Camshaft Inlet 1

    cylinders 4-6

    06E109102BG Camshaft Outlet 1

    cylinders 4-6

    06B103113C End cap 26MM 1

    06E103385 Torx socket head bolt 8

    079109470 covering 1

    101905611G spark plug 'longlife' PFR8S-8EG NGK 3

    06E103411B partition 3

  • 06E103263BX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 21.03.2014>>

    also use: 1

    Camshaft 1

    Replacements: 06E103791BX

    Items supplied

    06E103067DS Complete cylinder head (without camshaft) cylinders 4-6 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    N 10750101 Oval hexagon socket head bolt M6X48.0 3

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

    Valve stem seal 12

    Inlet valve 6

    Valve spring 12

    cotter, split 24

    exhaust valve 12

    partitions 3

  • 06E103263B Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 4-6 1

    D - 21.03.2014>>

    also use: 1

    Camshaft 1

    Exchange program parts: 06E103263BX

    Replacements: 06E103791B

  • 06D103377 Offers

    [Name] [QTY]

    Washer 16

    D >> - 11.07.2011

  • 06E103154C Offers

    [Name] [QTY]

    Water jet 1

    Replacements: 06E103154D

  • 06E103113A Offers

    [Name] [Note] [QTY]

    End cap 26MM 2

    Replacements: 06B103113C

  • 06E103535A Offers

    [Name] [QTY]

    housing 1

  • N91020801 Offers

    [Name] [Note] [QTY]

    dowel sleeve 8M7X10 2

  • 06E103121A Offers

    [Name] [QTY]

    Seal 1

  • N91127602 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X35X16 38

  • WHT003269 Offers

    [Name] [QTY]

    double collared stud 2

  • 07L109311 Offers

    [Name] [QTY]

    Tappets 1

  • 06E103066M Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 13.02.2012>> - 13.05.2013

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066R

    Items supplied

    06E103068CT Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 1

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103066D Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D >> - 13.02.2012

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066M

    Items supplied

    06E103068CF Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 1

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103904MX Offers

    [Name] [Note] [QTY]

    Cylinder head with valves and camshaft cylinders 1-3 1

    D >> - 10.01.2011

    Replacements: 06E103066DX; 06E109101BG; 06E109102BF

  • 06E103066DX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 10.01.2011>> - 13.02.2012

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066MX

    Items supplied

    06E103068CF Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 2

    022109423D equalizing element, hydraulic 12

    06E103385 Torx socket head bolt 8

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103066P Offers

    [Name] [Note] [Model info] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 PR:7GB 1

    D - 13.02.2012>> - 13.05.2013

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066R

    Items supplied

    06E103068DC Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06B103113C End cap 26MM 1

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

    Inlet valve 6

    exhaust valve 6

  • 06E103066R Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 13.05.2013>> - 21.03.2014

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103264B

    Items supplied

    06E103068DE Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    WHT005739 Socket head bolt with inner multipoint head M10X170 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103264B Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 21.03.2014>>

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103792B

    Items supplied

    06E103068DS Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    WHT005739 Socket head bolt with inner multipoint head M10X170 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103066RX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 13.05.2013>> - 21.03.2014

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066R

    Items supplied

    06E103068DE Complete cylinder head (without camshaft) cylinders 1-3 1

    06E109417N roller rocker arm 12

    06E103113A End cap 26MM 1

    06E103385 Torx socket head bolt 8

    022109423D equalizing element, hydraulic 12

    N 10750101 Oval hexagon socket head bolt M6X48.0 4

  • 06E103066MX Offers

    [Name] [Note] [QTY]

    Complete cylinder head (without camshaft) cylinders 1-3 1

    D - 13.02.2012>> - 13.05.2013

    also use: 06E 109 101 BG 1

    06E 109 102 BF 1

    Accompanying details: 06E109101BG; 06E109102BF

    Replacements: 06E103066M

  • N0119078 Offers

    [Name] [Note] [QTY]

    End cap 14 2

  • 06E103411B Offers

    [Name] [QTY]

    partition 6

  • 055105277 Offers

    [Name] [Note] [QTY]

    spring pin 6,2X22 2

  • 06E103149AG Offers

    [Name] [Note] [QTY]

    Cylinder head gasket cylinders 4-6 1

    Replacements: 06E103149BB

  • 06E103148AG Offers

    [Name] [Note] [QTY]

    Cylinder head gasket cylinders 1-3 1

    Replacements: 06E103148BB

  • 06E103385 Offers

    [Name] [QTY]

    Torx socket head bolt 16

    D >> - 11.07.2011

  • WHT005739 Offers

    [Name] [Note] [QTY]

    Socket head bolt with inner multipoint head M10X170 16

    D - 11.07.2011>>

  • 06E103177A Offers

    [Name] [QTY]

    Cover 1

  • N01508210 Offers

    [Name] [Note] [QTY]

    Hexagon collar nut M6 4

  • 06E103471P Offers

    [Name] [Note] [QTY]

    cylinder head cover cylinders 4-6 1

  • 06E103472N Offers

    [Name] [Note] [QTY]

    cylinder head cover cylinders 1-3 1

  • N10630302 Offers

    [Name] [Note] [QTY]

    sealing plug M10X1 2

  • 06E103483P Offers

    [Name] [Note] [QTY]

    Seal cylinders 4-6 1

    Replacements: 06E103483Q

  • 06E103484N Offers

    [Name] [Note] [QTY]

    Seal cylinders 1-3 1

    Replacements: 06E103484P

  • 06B103831J Offers

    [Name] [QTY]

    Hexagon socket flat head bolt with guide sleeve 24

  • 06E103239E Offers

    [Name] [QTY]

    Pin 6

  • N10609203 Offers

    [Name] [Note] [QTY]

    Hexagon collar nut M8 6

  • 079103485A Offers

    [Name] [QTY]

    End cap 1

  • 06A103483D Offers

    [Name] [Note] [QTY]

    Seal 58,5X2,2 1

  • 06E103977B Offers

    [Name] [Note] [QTY]

    Damping center 1

  • 06E103978B Offers

    [Name] [Note] [QTY]

    Damping right 1

  • 06E103979B Offers

    [Name] [Note] [QTY]

    Damping left 1

  • 07L109291 Offers

    [Name] [QTY]

    Bungs 1

  • 06E103980B Offers

    [Name] [Note] [QTY]

    Damping right rear 1

    Replacements: 06E103980D

  • 06E103981B Offers

    [Name] [Note] [QTY]

    Damping left rear 1

    Replacements: 06E103981D

  • 06E103935E Offers

    [Name] [QTY]

    Cover 1

  • N10622502 Offers

    [Name] [Note] [QTY]

    Socket head bolt with hexagon socket head M5X12 2

  • N10470705 Offers

    [Name] [Note] [QTY]

    round hd. screw M6X50 7

  • N91127602 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X35X16 38

  • D176501A1 Offers

    [Name] [Note] [QTY]

    Silicon sealant 50ml X

    adhesives and sealing compound

    black

  • 036103113A Offers

    [Name] [Note] [QTY]

    End cap 36,6 2

  • D000600A2 Offers

    [Name] [Note] [QTY]

    Locking fluid 18ML X

    Replacements: D 200005A2

  • N0145555 Offers

    [Name] [Note] [QTY]

    Threaded pin M8X44 18

Catalog

VIN Search By make & model

More

Contact us

We'll find the part, check availability, and arrange delivery across Georgia

Offline · we'll reply at 09:00
