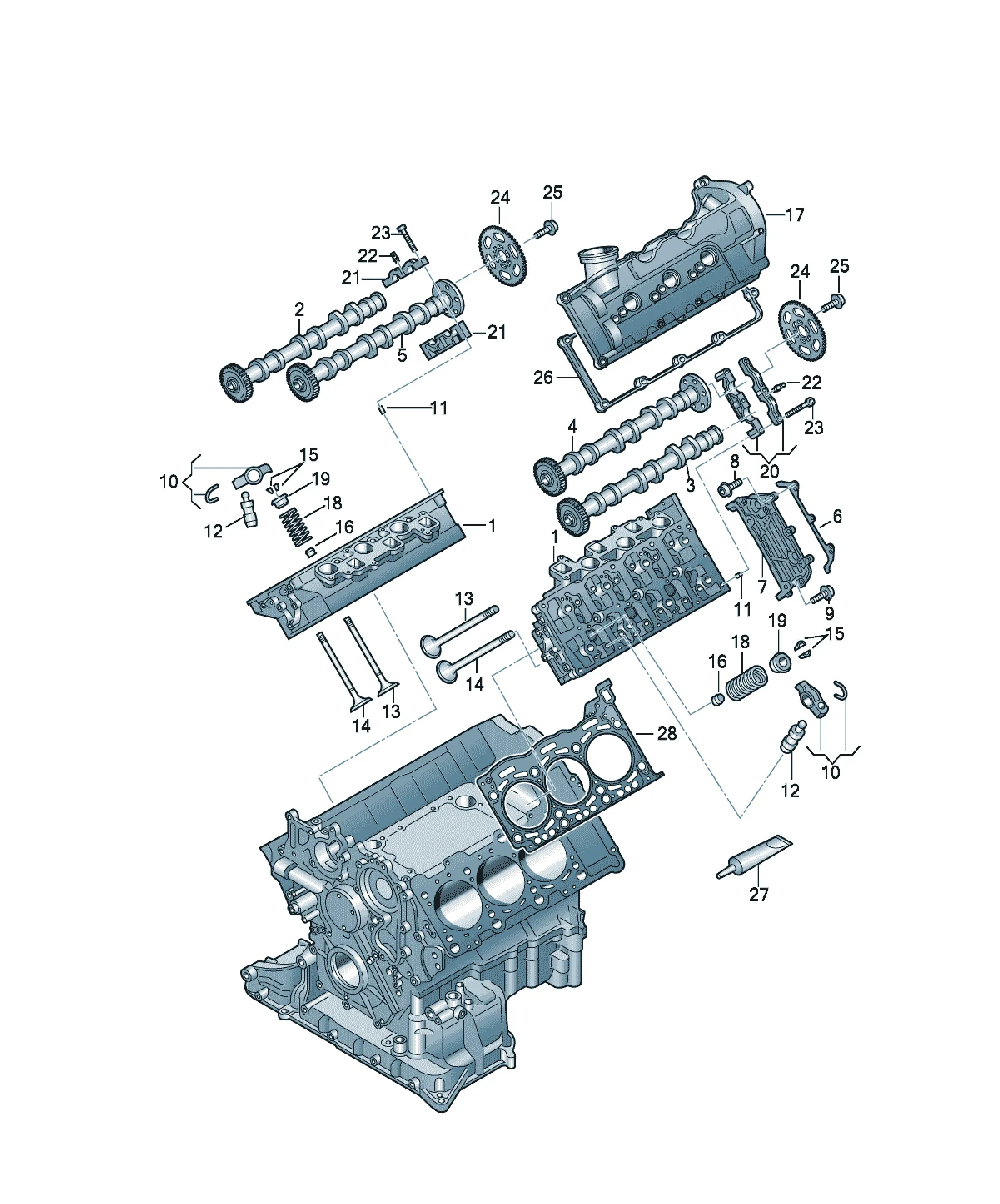

Valvetrain

[Name] [Note] [QTY]

Mounting sleeve 6X20 1

red

[Name] [Note]

Complete cylinder head (without camshaft)

see illustration: 103-055

[Name] [QTY]

roller rocker arm 24

[Name] [Note]

dowel sleeve

see illustration: 103-055

[Name] [QTY]

equalizing element, hydraulic 24

[Name] [QTY]

Inlet valve 12

[Name] [QTY]

exhaust valve 12

[Name] [QTY]

cotter, split 48

[Name] [Note] [QTY]

Valve stem seal Outlet 12

also use: 100 109 001 B X

Accompanying details: 100109001B

[Name] [Note] [QTY]

Valve stem seal Inlet 12

also use: 100 109 001 B X

Accompanying details: 100109001B

[Name] [Note]

cylinder head cover

see illustration: 103-055

[Name] [QTY]

Valve spring 24

Replacements: 059109633N

[Name] [Note] [QTY]

spring disc upper 24

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CNRB 1

cylinders 1-3

Replacements: 059109022FN

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CJGA,CJGC, 1

cylinders 1-3 CJGD,CRCA,

Replacements: 059109022DM

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CLZB 1

cylinders 1-3

Replacements: 059109022DA

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CJMA 1

cylinders 1-3

Replacements: 059109022DN

[Name] [Note]

Bearing cover

see illustration: 103-055

[Name] [Note]

Bearing cover

see illustration: 103-055

[Name] [Note]

ball head

see illustration: 103-055

[Name] [Note]

round hd. screw

see illustration: 103-055

[Name] [Note]

Chain sprocket

see illustration: 109-055

[Name] [Note]

round hd. screw

see illustration: 109-055

[Name] [Note]

Seal

see illustration: 103-055

[Name] [Note] [QTY]

Silicone sealant 80ML X

adhesives and sealing compound

Replacements: D 174003M2

[Name] [Note]

Cylinder head gasket

see illustration: 103-055

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CNRB 1

cylinders 4-6

Replacements: 059109009FN

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CJGA,CJGC, 1

cylinders 4-6 CJGD,CRCA

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CLZB 1

cylinders 4-6

Replacements: 059109009EA

[Name] [Note] [Model info] [QTY]

Camshaft Outlet CJMA 1

cylinders 4-6

Replacements: 059109009EA

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CLZB 1

cylinders 4-6

Replacements: 059109021FF

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CNRB 1

cylinders 4-6

Replacements: 059109021GN

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CJGA,CJGC, 1

cylinders 4-6 CJMA,CJGD,

CRCA

Replacements: 059109021FF

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CJGA,CJGC, 1

cylinders 1-3 CJMA,CJGD,

CRCA

Replacements: 059109009DS

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CLZB 1

cylinders 1-3

Replacements: 059109009DS

[Name] [Note] [Model info] [QTY]

Camshaft Inlet CNRB 1

cylinders 1-3

Replacements: 059109009FE

[Name] [Note]

Seal

see illustration: 103-052

[Name] [Note]

Cover

see illustration: 103-052

[Name] [Note]

shouldered bolt

see illustration: 103-052

[Name] [Note]

shouldered bolt

see illustration: 103-052
