Power steering system

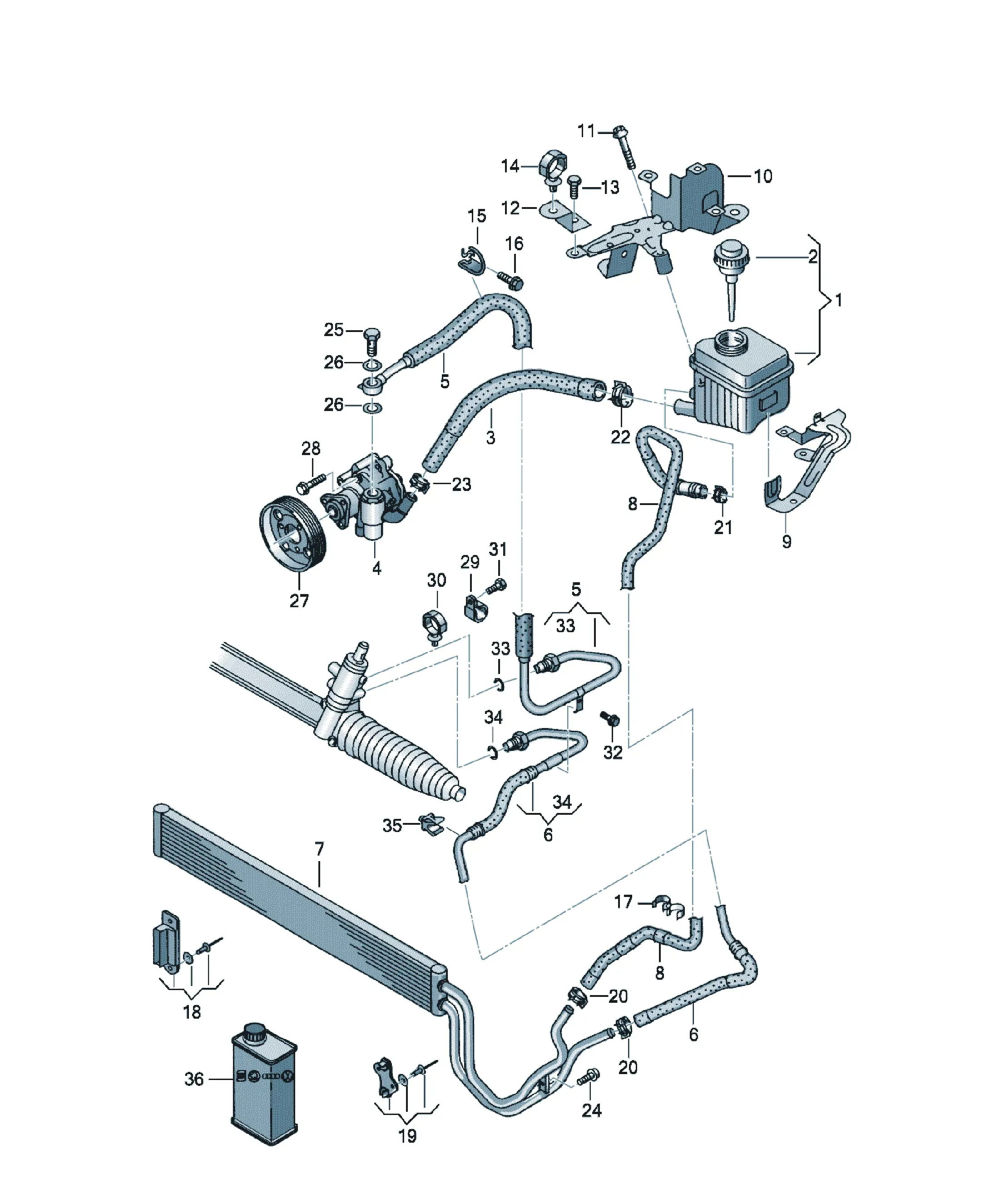

Power steering hose system

Assembly diagrams

8 diagrams

Parts

77 parts

Зубчатый диск
8E0130722D Offers

[Name] [Note] [QTY]
toothed lock washer ZC10X20X20 1
Fastening bolt
N10677501 Offers

[Name] [Note] [Model info] [QTY]
Socket head bolt with inner multipoint head M8X22 CJGA,CJGC, 1
CJMA,CJGD,
CRCA,CLZB,
CNRB
Power steering hose holder
7L8422926 Offers

[Name] [Model info] [QTY]
Holder for extendible hose CATA,CCMA, 1
CASA,CASB
Holder for extendible hose
7L8422926A Offers

[Name] [Model info] [QTY]
Holder for extendible hose CJGA,CJGC, 1
CJMA,CJGD,
CRCA,CLZB,
CNRB
Винт с шестигр.гол.(с шайбой)
N90533005 Offers

[Name] [Note] [Model info] [QTY]
hexagon head bolt (combi) M6X20 CATA,CCMA, 1
CASA,CASB
7L6422371E Offers

[Name] [QTY]
oil container 1
[Name] [Note]
see illustration: 127-050
N90533005 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X20 1
N10530303 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M6X55 1
N10521201 Offers

[Name] [Note] [Model info] [QTY]
Clip 15X16 CATA,CCMA, 1
CJGA,CJGC,
CJMA,CJGD,
CRCA,CLZB,
CNRB
7L6422164 Offers

[Name] [Model info] [QTY]
Bracket CASA,CASB 1
N90440706 Offers

[Name] [Note] [Model info] [QTY]
Hexagon bolt M6X15 CASA,CASB 1
037133687BG Offers

[Name] [QTY]
Hose bracket X
7L6422926C Offers

[Name] [QTY]
Hose bracket X
N90533005 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X20 1
N10521201 Offers

[Name] [Note] [QTY]
Clip 15X16 1
N10667201 Offers

[Name] [Note] [QTY]
Clip 18X16 X
N10502201 Offers

[Name] [Note] [Model info] [QTY]
Retainer, swivel 18X16 CATA,CCMA, X
CJGA,CJGC,
CJMA,CJGD,
CRCA,CLZB,
CNRB
N10521201 Offers

[Name] [Note] [QTY]
Clip 15X16 1
lower
701422921 Offers

[Name] [Note] [QTY]
Double clip 16-18+18-20MM 1
upper
7L0498871 Offers

[Name] [Note] [QTY]
Retainer for oil cooler right 1
repair set
7L0422281 retaining segment 1
Pop rivet 2
7L0498849 Offers

[Name] [Note] [QTY]
Retainer for oil cooler left 1
repair set
7L0422281 retaining segment 1
Pop rivet 2
7L6422376 Offers

[Name] [QTY]
End cap 1
N10197601 Offers

[Name] [Note] [QTY]
Ear crimp hose clamp 19,8X7X0,6 2
1K0423933 Offers

[Name] [Note] [QTY]
Spring band clamp 19,4-22,5 1
1K0423933 Offers

[Name] [Note] [QTY]
Spring band clamp 19,4-22,5 2
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 1
N90686902 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 1
N10451404 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X16-CH 1
N10451404 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X16 1
N10226103 Offers

[Name] [Note] [QTY]
Socket head bolt M6X16 2
WHT001878 Offers

[Name] [QTY]
Banjo bolt 1
WHT001878 Offers

[Name] [Note] [QTY]
Banjo bolt M16X1,5 1
WHT002666 Offers

[Name] [Note] [QTY]
seal ring 9,8X2,5 1
N0138487 Offers

[Name] [Note] [QTY]
seal ring 16X22 2
[Name] [Note]
Poly V-belt pulley
see illustration: 145-080
[Name] [Note]
see illustration: 145-080
[Name] [Note]
see illustration: 145-075
[Name] [Note]
see illustration: 145-075
[Name] [Note]
Hexagon socket head bolt
see illustration: 145-080
[Name] [Note]
see illustration: 145-080
N0206015 Offers

[Name] [Note] [QTY]
Clamp rhd 3
N0206015 Offers

[Name] [Note] [QTY]
Clamp 12X15 3
rhd
7L8422889C Offers

[Name] [QTY]
Intake hose 1
(vane type pump > oil reserv.)
Replacements: 7L8422889E
7L6422889N Offers

[Name] [QTY]
Intake hose 1
7L6422889AA Offers

[Name] [QTY]
Intake hose 1
Replacements: 7L6422889AB
037133687BG Offers

[Name] [Note] [QTY]
Hose bracket rhd 1
N90440706 Offers

[Name] [Note] [QTY]
Hexagon bolt M6X15 3
rhd
N90440706 Offers

[Name] [Note] [Model info] [QTY]
Hexagon bolt M6X15 BAN 3
rhd
N10156305 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X12 1
lhd
7L0422999 Offers

[Name] [Note] [QTY]
O-ring 9,25X1,78 1
7M0422999 Offers

[Name] [Note] [QTY]
O-ring 7,65X1,63 1
1K0971818 Offers

[Name] [Note] [QTY]
Cable ties 4,6X160 1
1K0971818 Offers

[Name] [Note] [QTY]
Cable ties 4,6X160 3
G004000M2 Offers

[Name] [Note] [QTY]
Hydraulic fluid 1.0 Ltr. X
G004000M7 Offers

[Name] [Note] [QTY]
Hydraulic fluid 30ltr. X
Replacements: G 004000M2; G 004000M8
G004000M8 Offers

[Name] [Note] [QTY]
Hydraulic fluid 60ltr. X
[Name] [Note]
Vane pump
see illustration: 145-078
[Name] [Note]
see illustration: 145-080
[Name] [Note]
see illustration: 145-075
7L8422893BP Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear rhd 1
7L8422893BN Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
7L8422893AS Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear rhd 1
7L8422893AH Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
7L8422893CF Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
D - 09.08.2010>>
7L8422893CG Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear rhd 1
7L8422893CB Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
D >> - 09.08.2010
Replacements: 7L8422893CF
7L6422891AB Offers

[Name] [Note] [QTY]
Return hose lhd 1
7L6422891B Offers

[Name] [Note] [QTY]
Return hose lhd 1
7L6422891L Offers

[Name] [Note] [QTY]
Return hose rhd 1
7L8422885A Offers

[Name] [QTY]
Oil cooler 1
7L8422885A Offers

[Name] [Note] [QTY]
Oil cooler 1
also use: 8E0 130 722 D 1
Spacer holder
Refrigerant line
Accompanying details: 8E0130722D
7L8422895A Offers

[Name] [QTY]
Hose 1
Replacements: 7L8422895D
7L8422895B Offers

[Name] [QTY]
Hose 1
Replacements: 7L8422895E
[Name] [Note]
see illustration: 972-000
[Name] [Note]
holder for wiring harness
see illustration: 972-000
