Power steering system

Power steering pump

Assembly diagrams

8 diagrams

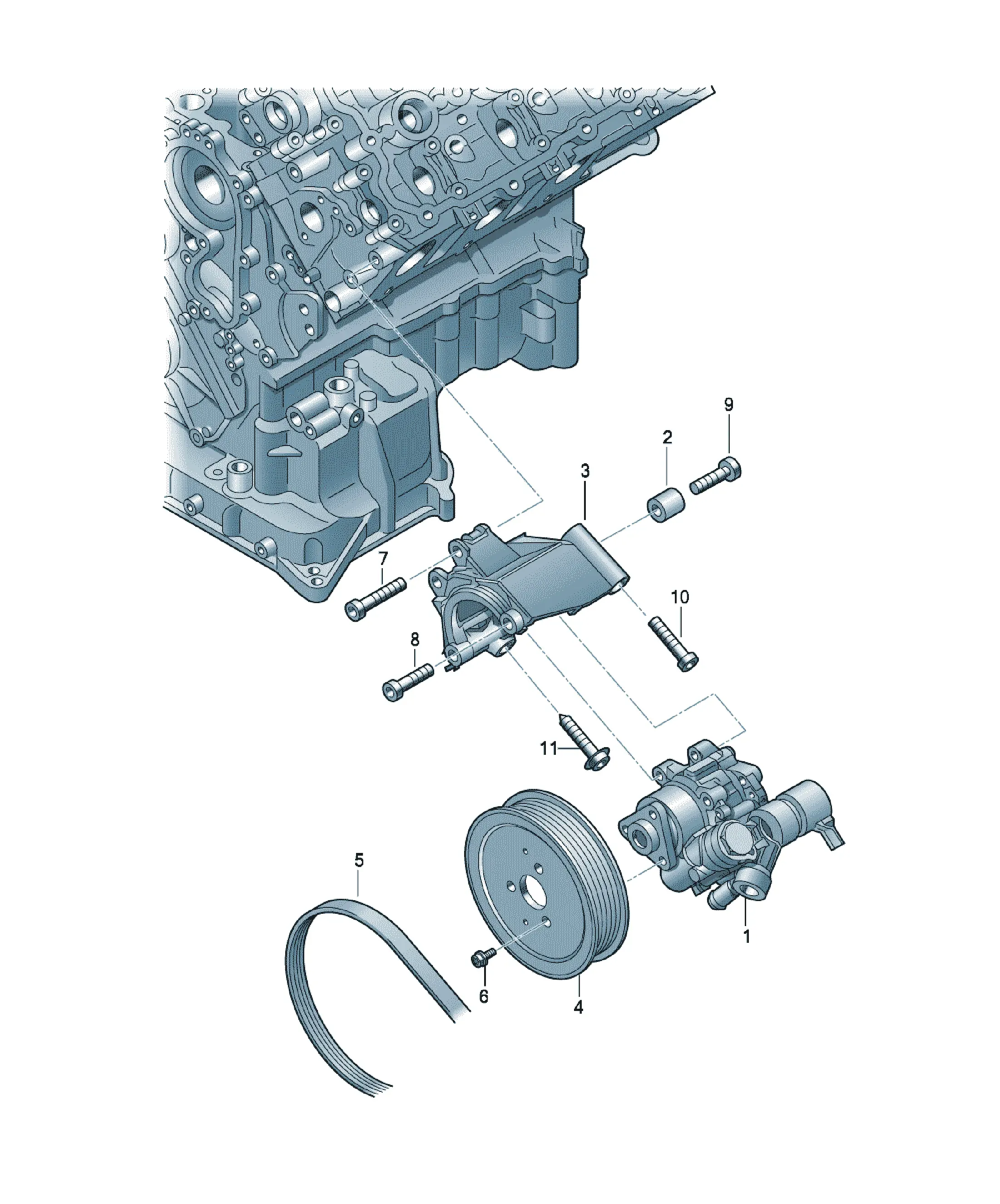

Power steering pump diagram

Parts

11 parts

7L8422154E Offers

[Name] [Note] [QTY]
Vane pump KAYABA 1
Replacements: 4E0145155N
N10601402 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X70 1
N91046302 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X28 3
068903147H Offers

[Name] [Note] [QTY]
bush 8,4X18X19,5 1
06E145393G Offers

[Name] [QTY]
Retainer for vane pump 1
06E145255G Offers

[Name] [QTY]
pulley 1
[Name] [Note]
Poly-V-belt
see illustration: 903-035
N91052201 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M8X12 3
N91063901 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X50 2
N91128701 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X32 2
N91128701 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X32 2
