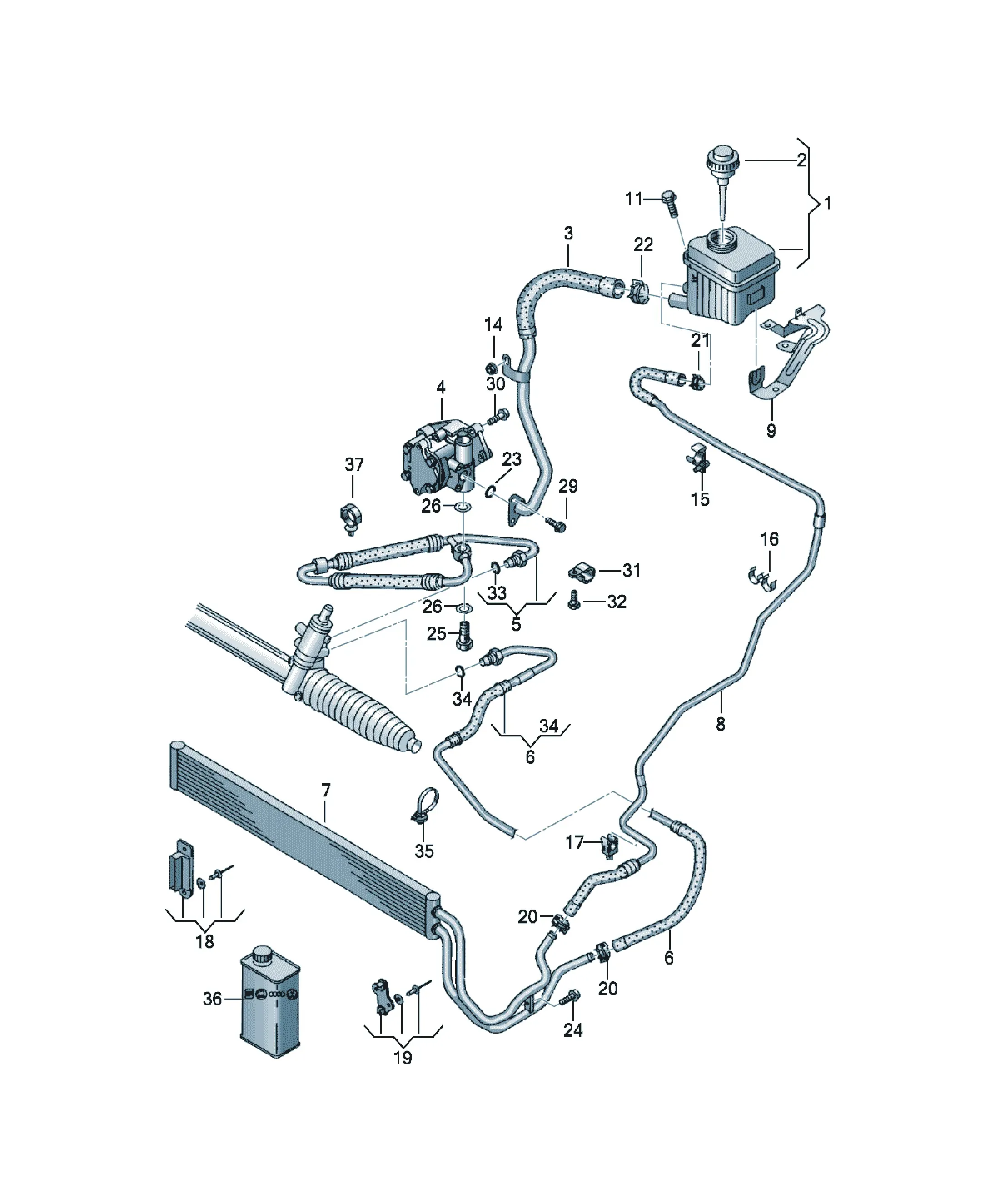

Power steering hose system

[Name] [QTY]

bracket for suction hose 1

[Name] [QTY]

oil container 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X20 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

[Name] [Note] [QTY]

Spreader rivet 6X12 2

[Name] [QTY]

Hose bracket 2

[Name] [Note] [QTY]

Retainer, swivel 9/10 2

[Name] [Note] [QTY]

Hose bracket 12 1

[Name] [Note] [QTY]

Retainer for oil cooler right 1

repair set

7L0422281 retaining segment 1

Pop rivet 2

[Name] [Note] [QTY]

Retainer for oil cooler left 1

repair set

7L0422281 retaining segment 1

Pop rivet 2

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Ear crimp hose clamp 19,8X7X0,6 2

[Name] [Note] [QTY]

Spring band clamp 19,4-22,5 1

[Name] [Note] [QTY]

Spring band clamp 27X12 1

[Name] [Note] [QTY]

O-ring 15,8X2,4 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X16 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X16-CH 1

[Name] [Note] [QTY]

Banjo bolt M16X1,5 1

[Name] [Note] [QTY]

seal ring 16X22 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

only to be used for: 7L8 422 153 F

[Name] [Note] [QTY]

Hex collared bolt M6X12 2

only to be used for: 7L8 422 153.D

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

[Name] [QTY]

Intake hose 1

[Name] [QTY]

Intake hose 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X26 3

[Name] [Note] [QTY]

Clamp 12X15 3

rhd

[Name] [Note] [QTY]

Hexagon bolt M6X15 3

rhd

[Name] [Note] [QTY]

O-ring 9,25X1,78 1

[Name] [Note] [QTY]

O-ring 7,65X1,63 1

[Name] [Note] [QTY]

Cable ties 4,6X160 3

[Name] [Note] [QTY]

Hydraulic fluid 60ltr. X

[Name] [Note] [QTY]

Hydraulic fluid 30ltr. X

Replacements: G 004000M2; G 004000M8

[Name] [Note] [QTY]

Hydraulic fluid 1.0 Ltr. X

[Name] [QTY]

Hose bracket 2

[Name] [Note]

see illustration: 145-090

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear lhd 1

D >> - 12.07.2010

Replacements: 7L8422893CD

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear rhd 1

D - 12.07.2010>>

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear lhd 1

D - 12.07.2010>>

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear lhd 1

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear rhd 1

[Name] [Note] [QTY]

Expansion hose from vane pump to steering gear rhd 1

D >> - 12.07.2010

Replacements: 7L8422893CE

[Name] [Note] [QTY]

Return hose rhd 1

[Name] [Note] [QTY]

Return hose lhd 1

[Name] [QTY]

Oil cooler 1

[Name] [QTY]

Hose 1

[Name] [Note]

see illustration: 972-000
