Dashboard, center console

Heater assembly

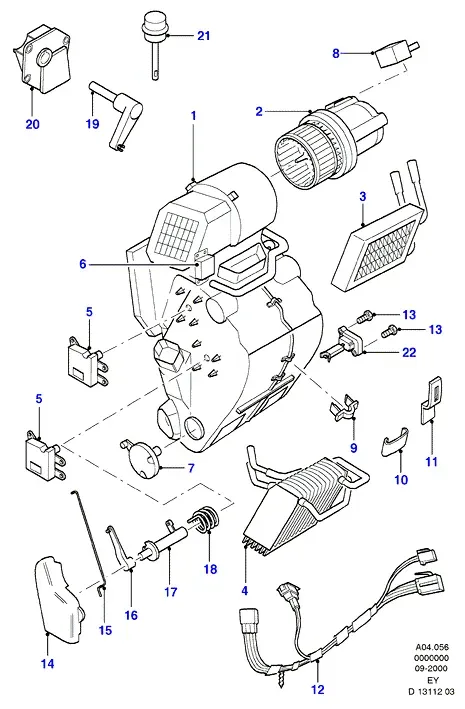

Heater assembly diagram

Parts

12 parts

4386873 Offers

Engineering number: 99VW 18C424 CC
Date of manufacture: 01/08/1994 - 31/08/1998
: 1
description: Housing - Heater
With Air Conditioning
(+)"Europe/MAL/VN"
1571395 Offers

Engineering number: E864160 S
Date of manufacture: 01/08/1994 - 31/08/2000
: AR
description: Clip
With Air Conditioning
(+)"Europe/MAL/VN"
7284922 Offers

Engineering number: 95VB 18B518 CB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Wire Assy
Before ordering, please read the information in the blue envelope!
With Air Conditioning
(+)"Europe/MAL/VN"
1052083 Offers

Engineering number: 95VB 18B518 DC
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Wire Assy
(+)"Europe/MAL/VN"
Rear Auxiliary Air Conditioning
7188532 Offers

Engineering number: 95VW 18456 CB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Fan And Motor Assy
With Air Conditioning
(+)"Europe/MAL/VN"
1140765 Offers

Engineering number: 95VW 18B539 BF
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Radiator Assy - Heater
Before ordering, please read the information in the blue envelope!
With Air Conditioning
(-)"MAL"
1205079 Offers

Engineering number: 99VW 19850 AC
: 1
description: Evaporator Assy
(+)"Europe/MAL/VN"
1056313 Offers

Engineering number: 95VW 19E616 AD
Date of manufacture: 01/08/1994 - 31/10/1999
: 2
description: Actuator - Temperature Control
With Air Conditioning
(+)"Europe/MAL/VN"
1022462 Offers

Engineering number: 95VW 19B634 AD
Date of manufacture: 01/08/1995 - 31/08/1998
: 1
description: Actuator Assy
With Air Conditioning
(+)"Europe/MAL/VN"
7189127 Offers

Engineering number: 95VW 18K377 AD
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Lever - Control - Temp. Regulation
With Air Conditioning
(+)"Europe/MAL/VN"
6149324 Offers

Engineering number: 82GG 13A025 CA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Relay
With Air Conditioning
(+)"Europe/MAL/VN"
1021525 Offers

Engineering number: 95VW 18D403 AF
Date of manufacture: 01/08/1994 - 31/08/2000
: AR
description: Clip
With Air Conditioning
(+)"Europe/MAL/VN"
