Dashboard, center console

Heater assembly

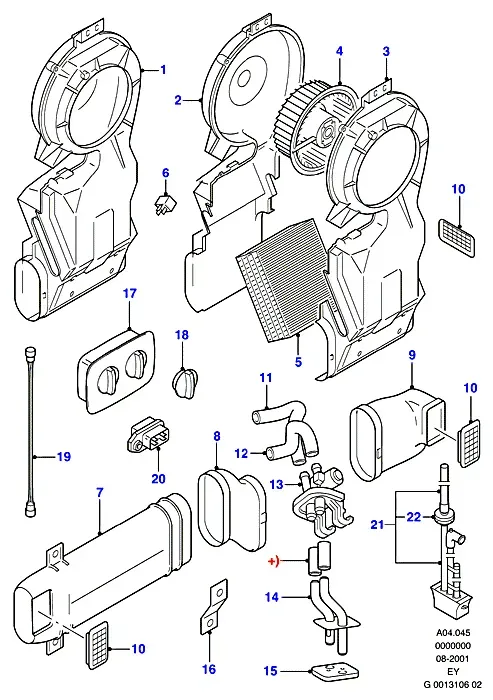

Heater assembly diagram

Parts

19 parts

1050862 Offers

Engineering number: 97VW 18K463 AB
Date of manufacture: 01/10/1996 - 31/08/1998
: 1
description: Heater Assy
LHD
(+)"Europe"
4481739 Offers

Engineering number: 97VW B018B40 AC
Date of manufacture: 01/10/1996 - 31/08/2000
: 2
description: Vent Assy
LHD
(+)"Europe"
1030586 Offers

Engineering number: 97VW 18D359 CA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
LHD
(+)"Europe"
1030587 Offers

Engineering number: 97VW 18D334 CA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
Before ordering, please read the information in the blue envelope!
LHD
(+)"Europe"
1714716 Offers

Engineering number: 7N21 18495 AC
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Valve Assy
LHD
(+)"Europe"
1050863 Offers

Engineering number: 97VW 19E754 AB
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Tube Assy
LHD
(+)"Europe"
1030593 Offers

Engineering number: 97VW 18K295 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: AR
description: Seal
LHD
(+)"Europe"
1030594 Offers

Engineering number: 97VW 18C423 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Bracket - Support
LHD
(+)"Europe"
1085877 Offers

Engineering number: 97VW 18549 AC
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Control Assy - Heater
LHD
(+)"Europe"
1016870 Offers

Engineering number: 96FW 18519 AE
Date of manufacture: 01/10/1996 - 31/08/2000
: 2
description: Knob - Heater Control
LHD
(+)"Europe"
1031193 Offers

Engineering number: 97VB 18B518 AB
Date of manufacture: 01/10/1996 - 31/08/1998
: 1
description: Wire Assy - Fan Motor
LHD
(+)"Europe"
1030572 Offers

Engineering number: 97VW 18D393 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Non Recirculating
LH
LHD
(+)"Europe"
1030574 Offers

Engineering number: 97VW 18D392 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Non Recirculating
RH
LHD
(+)"Europe"
1030585 Offers

Engineering number: 97VW 18456 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Fan And Motor Assy
LHD
(+)"Europe"
1030575 Offers

Engineering number: 97VW 18B539 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Radiator Assy - Heater
LHD
(+)"Europe"
6149324 Offers

Engineering number: 82GG 13A025 CA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Relay
LHD
(+)"Europe"
1030576 Offers

Engineering number: 97VW 18C299 BB
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Duct - Heater Outlet
LHD
(+)"Europe"
1030577 Offers

Engineering number: 97VW 18D236 BA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Duct - Heater Outlet
LHD
(+)"Europe"
1030578 Offers

Engineering number: 97VW 18C299 AB
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Duct - Heater Outlet
LHD
(+)"Europe"
