Dashboard, center console

Heating system

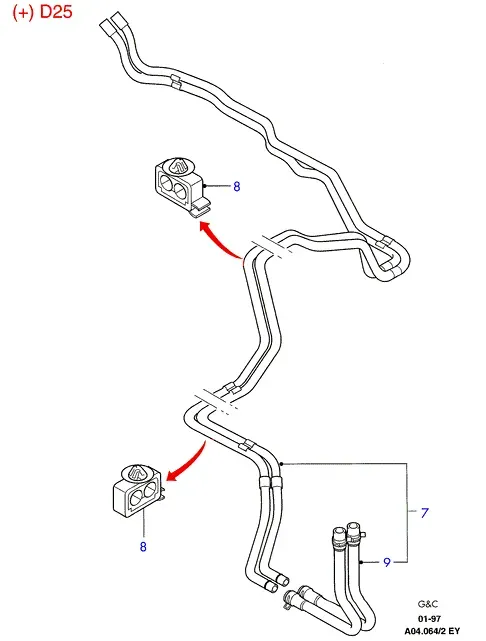

Heating system diagram

Parts

7 parts

1030862 Offers

Engineering number: 97VB 8K289 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
LHD
2.5L Diesel NA
(+)"Europe"
With Auxiliary Heater
1030863 Offers

Engineering number: 97VB 18K359 DA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
Before ordering, please read the information in the blue envelope!
LHD
2.5L Diesel NA
(+)"Europe"
With Auxiliary Heater
1030864 Offers

Engineering number: 97VB 18C266 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
Before ordering, please read the information in the blue envelope!
(LHD 2.5L Diesel (76PS) (+)"Europe/VN" or LHD 2.5L Diesel T (85PS) (+)"Europe")
6992942 Offers

Engineering number: W702230 S
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Clip
LHD
(+)"Europe/VN"
With Auxiliary Heater
1052718 Offers

Engineering number: 97VB 18C553 DB
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Hose Assy
LHD
(+)"Europe/VN"
With Auxiliary Heater
1030659 Offers

Engineering number: 97VB 18N332 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 2
description: Clip - Hose
LHD
(+)"Europe/VN"
With Auxiliary Heater
1052719 Offers

Engineering number: 97VB 18K579 BA
Date of manufacture: 01/10/1996 - 31/08/2000
: 2
description: Hose - Connecting
Before ordering, please read the information in the blue envelope!
LHD
(+)"Europe/VN"
With Auxiliary Heater
