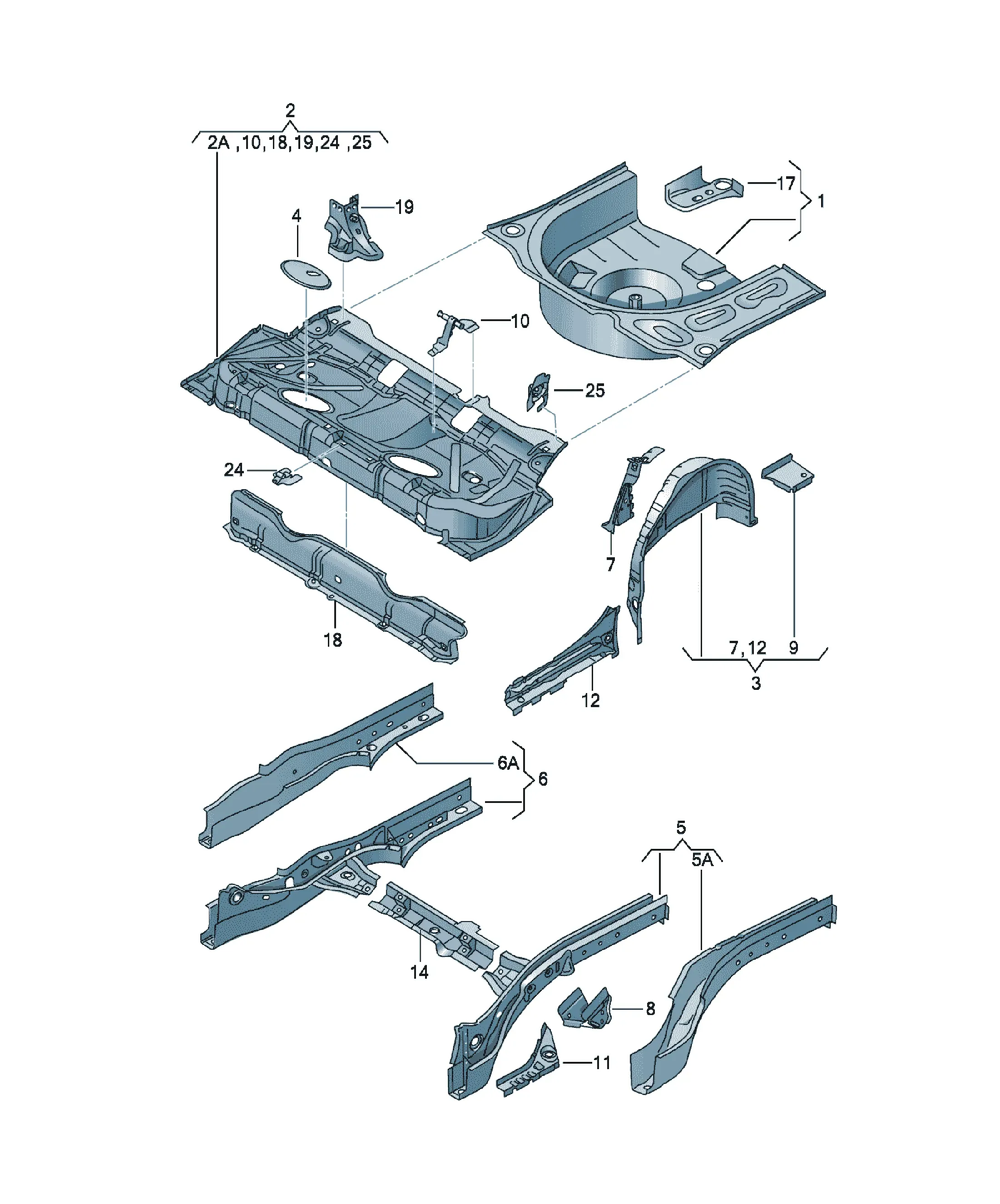

Body base

Boot floor panel

Assembly diagrams

9 diagrams

Parts

34 parts

2 pk adhesive
D001500 Offers

[Name] [QTY]
2 pk adhesive X
seal ring
N90243001 Offers

[Name] [Note] [QTY]
seal ring A18X40 2
6Q6813114A Offers

[Name] [QTY]
luggage compart. floor plate with spare wheel recess 1
6Q0886187D Offers

[Name] [QTY]
Bearing bracket for rear seat back rest 1
6Q0803509B Offers

[Name] [Note] [QTY]
Connecting plate for side section - rear cross panel left 1
repair set
6Q0803509B Connecting plate for side section - rear cross panel
6Q0803509B STR without finish 1
6Q0803510B Offers

[Name] [Note] [QTY]
Connecting plate for side section - rear cross panel right 1
repair set
6Q0803510B Connecting plate for side section - rear cross panel
6Q0803510B STR without finish 1
6J0813120 Offers

[Name] [Note] [QTY]
Insert plate right 1
6J0813119 Offers

[Name] [Note] [QTY]
Insert plate left 1
6R0803531B Offers

[Name] [QTY]
Cross member 1
D - 24.06.2013>>
6R0803531 Offers

[Name] [QTY]
Cross member 1
D >> - 24.06.2013
6Q0803616 Offers

[Name] [Note] [QTY]
Tow hitch rear 1
6Q0813146 Offers

[Name] [QTY]
cross reinforcement 1
6Q0813174D Offers

[Name] [Note] [QTY]
Web plate right 1
Wheel housing
6Q0813173D Offers

[Name] [Note] [QTY]
Web plate left 1
Wheel housing
6Q0813111D Offers

[Name] [QTY]
boot floor plate 1
6Q0813187C Offers

[Name] [QTY]
hinge half 4
6Q0886162C Offers

[Name] [Note] [QTY]
Bearing bracket for rear seat back rest right 1
6Q0886161C Offers

[Name] [Note] [QTY]
Bearing bracket for rear seat back rest left 1
6Q0813115F Offers

[Name] [Note] [QTY]
Bottom plate rear 1
can be used as a sub-part
6J6809852A Offers

[Name] [Note] [QTY]
Wheel housing right rear 1
inner
6J6809851A Offers

[Name] [Note] [QTY]
Wheel housing left rear 1
inner
6Q0803961 Offers

[Name] [QTY]
Cover for sender 1
repair set
6Q0803961 Cover for sender
6Q0803961 STR without finish 1
6Q6803501B Offers

[Name] [Note] [QTY]
Side member left rear 1
6Q0803505E Offers

[Name] [Note] [QTY]
Side member left rear 1
can be used as a sub-part
D - 09.07.2012>>
6Q0803505B Offers

[Name] [Note] [QTY]
Side member left rear 1
can be used as a sub-part
D >> - 09.07.2012
6Q6803502B Offers

[Name] [Note] [QTY]
Side member right rear 1
6Q0803506E Offers

[Name] [Note] [QTY]
Side member right rear 1
can be used as a sub-part
D - 09.07.2012>>
6Q0803506B Offers

[Name] [Note] [QTY]
Side member right rear 1
can be used as a sub-part
D >> - 09.07.2012
6L0803448A Offers

[Name] [Note] [QTY]
Mounting block right 1
6L0803447A Offers

[Name] [Note] [QTY]
Mounting block left 1
6Q0804732B Offers

[Name] [Note] [QTY]
bearing bracket for rear axle right 1
modify in workshop
repair set
6Q0804732B bearing bracket for rear axle
6Q0804732B STR without finish 1
6Q0804731B Offers

[Name] [Note] [QTY]
bearing bracket for rear axle left 1
modify in workshop
6J6804749 Offers

[Name] [Note] [QTY]
Support left 1
6J6804750A Offers

[Name] [Note] [QTY]
Support right 1
