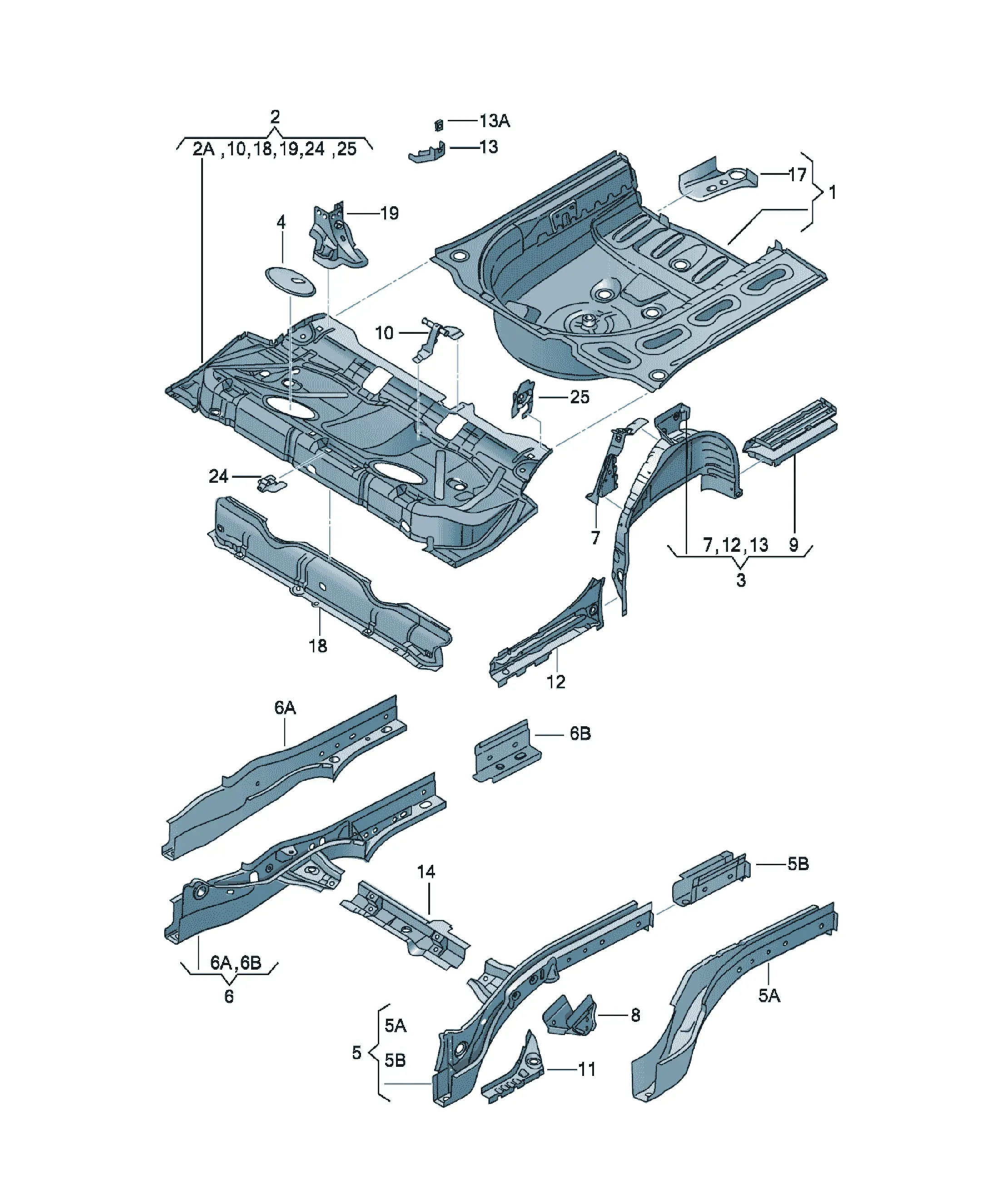

Boot floor panel

[Name] [QTY]

2 pk adhesive X

adhesives and sealing compound

[Name] [Note] [QTY]

seal ring A18X40 2

[Name] [Note] [QTY]

luggage compart. floor plate with spare wheel recess rear 1

[Name] [QTY]

Bearing bracket for rear seat back rest 1

[Name] [Note] [QTY]

Connecting plate for side section - rear cross panel right 1

repair set

6Q0803510B Connecting plate for side section - rear cross panel

6Q0803510B STR without finish 1

[Name] [Note] [QTY]

Connecting plate for side section - rear cross panel left 1

repair set

6Q0803509B Connecting plate for side section - rear cross panel

6Q0803509B STR without finish 1

[Name] [Note] [QTY]

Insert plate right 1

[Name] [Note] [QTY]

Insert plate left 1

[Name] [Note] [QTY]

Bracket for trim right 1

also use: 6J8 853 577 1

Accompanying details: 6J8853577

[Name] [Note]

Bracket for trim left

see illustration, item: 809-035,30

[Name] [Note] [QTY]

Speed nut 4,8X16X15 1

[Name] [QTY]

Cross member 1

D - 24.06.2013>>

[Name] [QTY]

Cross member 1

D >> - 24.06.2013

[Name] [Note] [QTY]

Tow hitch rear 1

[Name] [QTY]

cross reinforcement 1

[Name] [Note] [QTY]

Web plate right 1

Wheel housing

[Name] [Note] [QTY]

Web plate left 1

Wheel housing

[Name] [QTY]

boot floor plate 1

[Name] [QTY]

hinge half 4

[Name] [Note] [QTY]

Bearing bracket for rear seat back rest right 1

[Name] [Note] [QTY]

Bearing bracket for rear seat back rest left 1

[Name] [Note] [QTY]

Bottom plate rear 1

can be used as a sub-part

[Name] [Note] [QTY]

Wheel housing left rear 1

inner

[Name] [Note] [QTY]

Wheel housing right rear 1

inner

[Name] [QTY]

Cover for sender 1

repair set

6Q0803961 Cover for sender

6Q0803961 STR without finish 1

[Name] [Note] [QTY]

Side member left rear 1

[Name] [Note] [QTY]

Side member left rear 1

can be used as a sub-part

D >> - 07.05.2012

[Name] [Note] [QTY]

Side member left rear 1

can be used as a sub-part

D - 07.05.2012>>

[Name] [Note] [QTY]

Closing element left rear 1

[Name] [Note] [QTY]

Side member right rear 1

[Name] [Note] [QTY]

Side member right rear 1

can be used as a sub-part

D >> - 07.05.2012

[Name] [Note] [QTY]

Side member right rear 1

can be used as a sub-part

D - 07.05.2012>>

[Name] [Note] [QTY]

Closing element right rear 1

[Name] [Note] [QTY]

Mounting block right 1

[Name] [Note] [QTY]

Mounting block left 1

[Name] [Note] [QTY]

bearing bracket for rear axle right 1

modify in workshop

repair set

6Q0804732B bearing bracket for rear axle

6Q0804732B STR without finish 1

[Name] [Note] [QTY]

bearing bracket for rear axle left 1

modify in workshop

[Name] [Note] [QTY]

Support left 1

[Name] [Note] [QTY]

Support right 1
